Blackmagic Design Micro Converter HDMI to SDI 3G
SKU code: 61300
- HDMI Input, SD/HD/3G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to 1080p60 Resolution I/O
- USB Power/SDI Re-Clocking/Timecode
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio
- LED Video & Power Signal Indicators
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

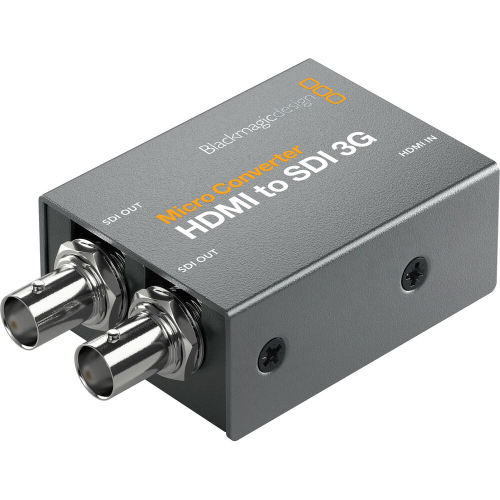

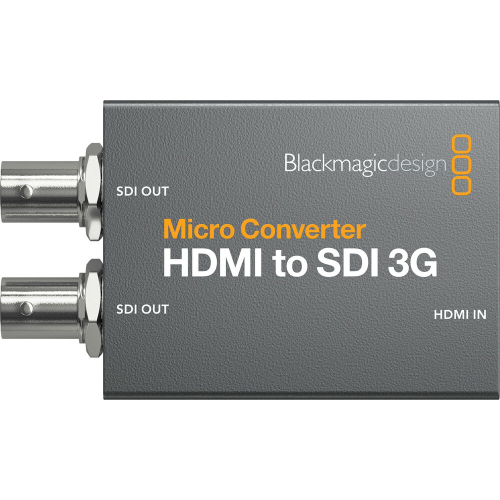

Blackmagic Design Micro Converter HDMI to SDI 3G
Connect HDMI cameras or computers to SDI monitors with the Blackmagic Design Micro Converter HDMI to SDI 3G. This rugged, compact converter supports resolutions up to 1080p60, features dual 3G-SDI outputs, HDMI timecode, and SDI re-clocking for stable, long-distance video transmission-perfect for professional broadcast setups.

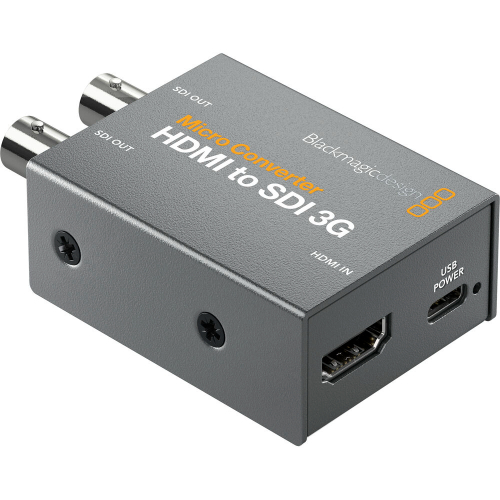

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using a separately available 100-240 VAC power supply, complete with four international socket adapters.
Dual SDI Outputs
- One HDMI input
- Two 3G-SDI outputs
- Selectable A and B level formats
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
SDI & HDMI Timecode
- HD and SD timecode support
- Converts HDMI timecode to SDI
SDI Re-Clocking
- Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI 2Kp60
- HDMI support from NTSC and PAL up to 1080p60
Embedded Audio
- Supports embedded HDMI input and embedded SDI output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Separately available 100-240 AC power supply with four socket adapters
INPUTS / OUTPUTS
|
|
Video Inputs |
1x HDMI (2.0)
|
Video Outputs |
2x BNC (3G-SDI)
|
Other I/O |
1x USB-C Input
|
FORMAT SUPPORT
|
|
Input Video Format |
HDMI (8/10-Bit 4:2:2 RGB, YUV)
|
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
Output Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF 25/29.97/30 fps | |
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF 25/29.97/30 fps | |
1080i 50/59.94/60 fps | |
720p 50/59.94/60 fps | |
480i / 525 lines 29.97 fps | |
576i / 625 lines 25 fps | |
Embedded Audio |
HDMI/SDI
|
Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M
|
HDCP Support |
Yes, Version 2.2
|
HARDWARE
|
|
OS Compatibility |
macOS 10.14.15 or Later
|
Windows 10 | |
POWER
|
|
Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
Power Consumption |
2 W
|
ENVIRONMENTAL
|
|
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL
|
|
Dimensions |
7.645 x 4.57 x 2.489 cm
|
Weight |
0.15 kg
|
* Specifications subject to change by the manufacturer without notice.
