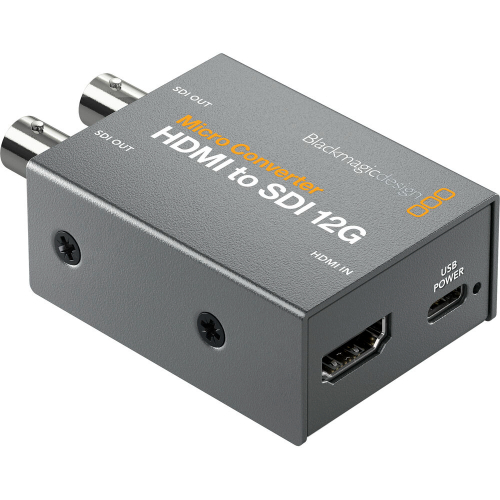

Blackmagic Design Micro Converter HDMI to SDI 12G

Connect HDMI cameras or computers to SDI monitors with the Blackmagic Design Micro Converter HDMI to SDI 12G. This rugged, compact converter features one HDMI input and dual 12G-SDI outputs, supporting resolutions up to DCI/UHD 4K60. Perfect for pro video setups and extending HDMI over long distances.

The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.

Dual SDI Outputs

  • One HDMI input
  • Two 12G-SDI outputs
  • Selectable A and B level formats

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI

SDI Re-Clocking

  • Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered with a separately available USB Type-C cable and power supply

Operating System Support

  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit
INPUTS / OUTPUTS


Video Inputs
1x HDMI (2.0) Female
Video Outputs
2x BNC (12G-SDI) Female
Other I/O
1x USB-C Control, Service Input

FORMAT SUPPORT


Input Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI

STANDARDS


Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support
Yes, Version 2.2

HARDWARE


OS Compatibility
macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10

POWER


Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
Device: 4 W

ENVIRONMENTAL


Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% ()

GENERAL


Dimensions
7.645 x 4.57 x 2.489 cm
Weight
0.15 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Micro Converter HDMI to SDI 12G
