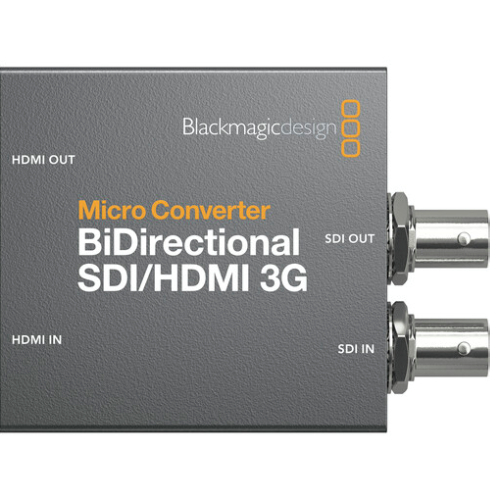

Blackmagic Design Micro Converter Overview

Connect your SDI and HDMI components with ease using the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G. This small, bidirectional converter can convert SDI to HDMI and vice versa, even when using different standards. It supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, allowing you to use them with an SDI-based live switcher. Other features include HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

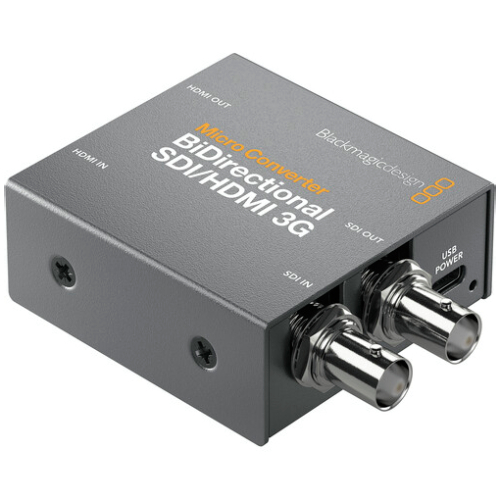

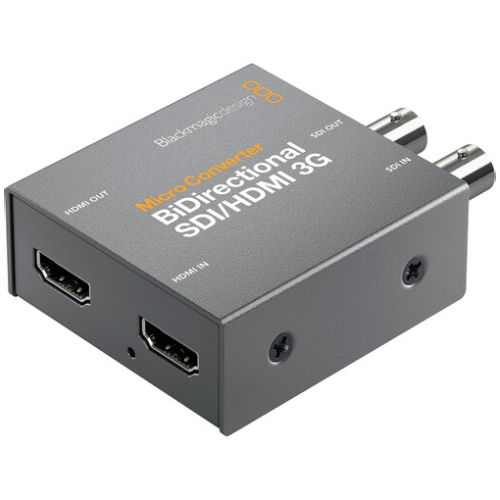

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the BiDirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

HDMI Camera Control

  • Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables users with an SDI-based live switcher

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

  • Supports embedded SDI and HDMI input and output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
BLACKMAGIC DESIGN MICRO CONVERTER


Video Inputs

 1 x BNC (3G-SDI)
1 x HDMI (HDMI 2.0)
Video Outputs 1 x BNC (3G-SDI)
1 x HDMI (HDMI 2.0)
Other I/O 1 x USB-C Input
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI

STANDARDS

Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2

HARDWARE

Tally Light Yes
OS Compatibility macOS 10.14.15 or Later
Windows 10
*As of November 2020: Check with the manufacturer for the most up-to-date compatibility

POWER

Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W

ENVIRONMENTAL

Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%

GENERAL

Dimensions 8.077 x 5.893 x 2.489 cm
Weight 0.174 kg


* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
