Blackmagic Design HyperDeck Studio HD Plus
SKU code: 61294
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 6G-SDI Input, HDMI 2.0 Input
- HDMI 2.0 and 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-bit
- Front-panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/2 Rack-mountable Form Factor
- USB-C, 1G Ethernet, RS-422
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

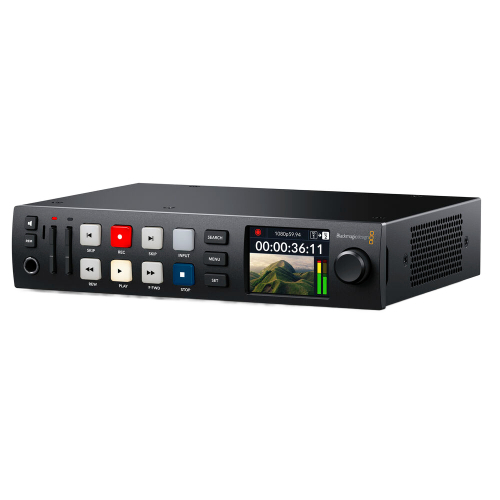

Blackmagic Design HyperDeck Studio HD Plus
The Blackmagic Design HyperDeck Studio HD Plus is a 1 RU tall, 1/2 rack-wide broadcast-quality record/playback deck, perfect for on-location use, studio setups, or rack integration. Powered from 100 to 240 VAC or an optional 12 VDC supply for portability, it features a 6G-SDI input, HDMI 2.0 input, two 6G-SDI outputs, and an HDMI 2.0 output. With loop-through and 3G-SDI monitor outputs, plus reference and timecode in/out, this compact unit is ideal for fitting into any broadcast environment.
Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
UHD 4K Recording and Playback
The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60
Video Inputs
6G-SDI and HDMI 2.0 inputs
Video Outputs
Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices
HDR
The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output
Supported Codecs
ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime
DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style Controls

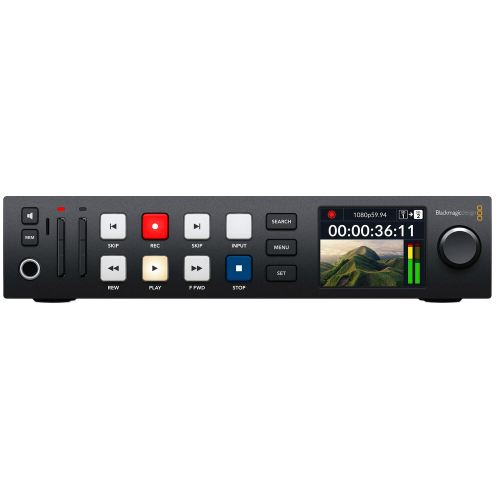

Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video
Audio Output
The unit features a built-in speaker as well as a 1/4" headphone jack
Included Software
The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup
|

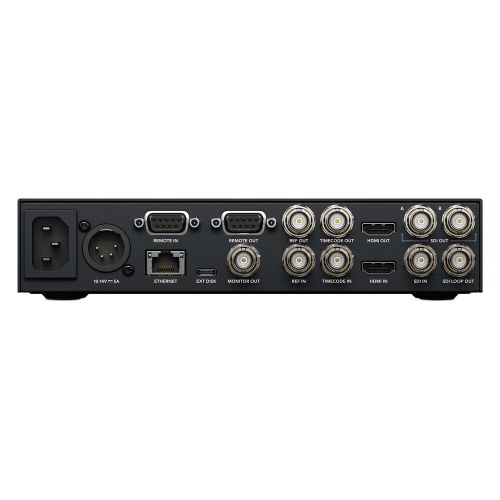

CONNECTIVITY
|
|
|
|
|
| Video Inputs |
1 x BNC, 6G-SDI
|
| 1 x HDMI 2.0 Type A | |
| Video Output |
1 x BNC, 6G-SDI Loop-Out
|
| 2 x BNC, 6G-SDI | |
| 1 x HDMI Type A, 2.0 | |
| 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) | |
| 1 x BNC, 3G-SDI (Monitor Out) | |
| Timecode |
In: 1 x BNC
|
| Out: 1 x BNC | |
| Reference |
Tri-Sync or Black Burst
|
| Input Connector: 1 x BNC | |
| Output Connector: 1 x BNC | |
| Audio Output |
Headphone: 1 x 1/4" Phone
|
| Device Control |
2 x RS-422 Deck Control Port on DB9 Female
|
| Ethernet |
1 x RJ45 for Remote Operation
|
| Media Interface |
2 x SD Slots
|
| Media Type: UHS I and UHS II | |
| Format: ExFAT or HFS+ | |
|
STANDARDS
|
|
| Supported Resolutions |
4K
|
| 4096 x 2160p: 30/29.97/25/24/23.98 | |
| 3840 x 2160p: 30/29.97/25/24/23.98 | |
| 2K | |
| 2048 x 1080p: 0/29.97/25/24/23.98 | |
| HD | |
| 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1920 x 1080i: 60/59.94/50 | |
| 1280 x 720p: 60/59.94/50 | |
| SD | |
| NTSC | |
| PAL | |
| SDI Compliance |
SMPTE 259M//292M/296M/372M/424M/425M Level A and B
|
| SMPTE 2084 | |
| SMPTE 2108?1 | |
| SDI Metadata Support |
HD RP188 and Closed Captioning CEA?708
|
| HDR Metadata Supported on SDI | |
| Video Sampling |
4:2:2 YUV
|
| Colour Depth |
10-Bit
|
| Colour Space |
Rec. 601
|
| Rec. 709 | |
| Rec. 2020 | |
| 33-Point 3D LUTS Can Be Applied to SDI Monitor Out | |
| HDR Support |
Hybrid Log?Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
|
| Multi Rate Support |
Autodetection of SD, HD, and 6G-SDI
|
| Audio Sampling |
Television Standard 48 kHz, 24-Bit
|
| Supported Codecs |
ProRes
|
| HQ QuickTime | |
| 422 QuickTime | |
| LT QuickTime | |
| Proxy QuickTime for Formats up to 1080p60 | |
| DNxHD | |
| 220x | |
| 220x MXF | |
| 145 | |
| 145 MXF | |
| 45 | |
| 45 MXF for 720p and 1080p HD Formats up to 60 fps | |
| H.264 | |
| SDI 4:2:2 10-Bit | |
| High 4:2:0 8-Bit | |
| Medium 4:2:0 8-Bit | |
| Low 4:2:0 8-Bit for Progressive Formats up to 1080p60 | |
|
SYSTEM REQUIREMENTS
|
|
| Operating System |
macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
|
| Windows: 10 64-Bit | |
|
GENERAL
|
|
| Rack Height |
1 RU
|
| Power Supply |
AC
|
| 100 to 240 VAC, 50/60 Hz | |
| DC | |
| 12 VDC; 1 x 4-Pin XLR | |
| Consumption | |
| 100 W Max | |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Relative Humidity |
0 to 90% Non-Condensing
|
| Dimensions |
21.01 x 17.68 x 4.42 cm
|
| Weight |
0.82 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design HyperDeck Studio HD Plus
- Software CD
