Key Features:
- 3G-SDI Input
- HDMI and 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-bit
- Front-panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-mountable Form Factor
- USB-C, 1G Ethernet, RS-422
Blackmagic Design HyperDeck Studio HD Mini
SKU code: 61293
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
-
Direct Deposit
-
PayPal Express
-
American Express
-
MasterCard
-
Visa
Key Features:
- 3G-SDI Input
- HDMI and 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-bit
- Front-panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-mountable Form Factor
- USB-C, 1G Ethernet, RS-422
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design HyperDeck Studio HD Mini

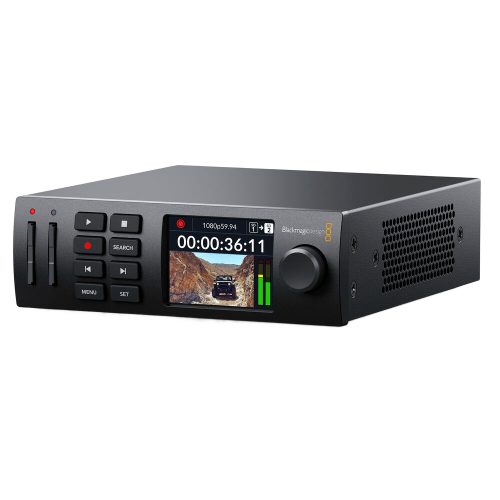

The Blackmagic Design HyperDeck Studio HD Mini is a compact, broadcast-quality record/playback deck ideal for on-location use, studio work, or rack installation. Measuring 1 RU tall and 1/3 of a rack wide, it can be powered from 100 to 240 VAC or via an optional 12 VDC supply for portability. With 3G-SDI input, HDMI and 3G-SDI output, and USB-C webcam output, it allows simultaneous input, recording, and streaming. Supporting reference and timecode in/out, it's perfect for ISO recordings in live and post-production work with precise sync for each camera.
Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
Video Inputs
It supports SD, HD, and select 3G signals over SDI
Supported Codecs
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

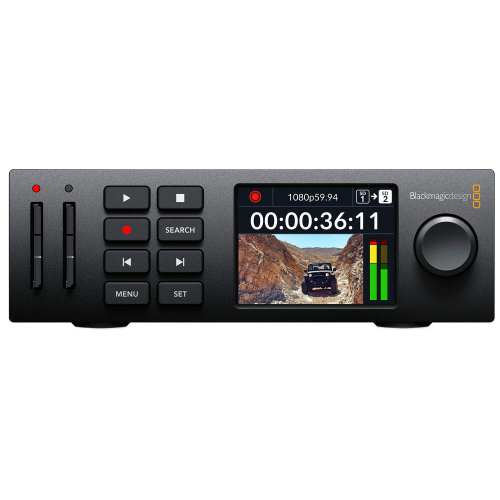

VTR-Style Controls
Features VTR-style front-panel controls for recording and playback; a built-in jog/shuttle wheel provides analog-style control over your playback
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video
Included Software
The HyperDeck Studio HD Mini includes Blackmagic OS and Blackmagic HyperDeck Setup
|

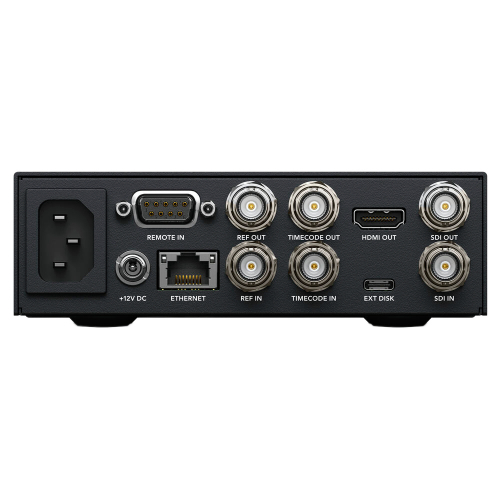

CONNECTIVITY
|
|
| Video Inputs |
1 x BNC, 3G-SDI
|
| Video Output |
1 x BNC, 3G-SDI
|
| 1 x HDMI Type A | |
| 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) | |
| Timecode |
In: 1 x BNC
|
| out: 1 x BNC | |
| Reference |
Tri-Sync or Black Burst
|
| Input Connector: 1 x BNC | |
| Output Connector: 1 x BNC | |
| Device Control |
1 x RS-422 Deck Control Port on DB9 Female
|
| Ethernet |
1 x RJ45 for Remote Operation
|
| Media Interface |
2 x SD Slots
|
| Media Type: UHS I and UHS II | |
| Format: ExFAT or HFS+ | |
|
STANDARDS
|
|
| Supported Resolutions |
2K
|
| 2048 x 1080p: 30/29.97/25/24/23.98 | |
| HD | |
| 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1920 x 1080i: 60/59.94/50 | |
| 1280 x 720p: 60/59.94/50 | |
| SD | |
| NTSC | |
| PAL | |
| SDI Compliance |
SMPTE 259M//292M/296M/372M/424M/425M Level A and B
|
| SMPTE 2084 | |
| SMPTE 2108?1 | |
| SDI Metadata Support |
HD RP188 and Closed Captioning CEA?708
|
| HDR Metadata Supported on SDI | |
| Video Sampling |
4:2:2 YUV
|
| Colour Depth |
10-Bit
|
| Colour Space |
REC 601
|
| REC 709 | |
| REC 2020 | |
| HDR Support |
Hybrid Log?Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
|
| Multi Rate Support |
Autodetection of SD and HD
|
| Audio Sampling |
Television Standard 48 kHz, 24-Bit
|
| Supported Codecs |
ProRes
|
| HQ QuickTime | |
| 422 QuickTime | |
| LT QuickTime | |
| Proxy QuickTime for Formats up to 1080p60 | |
| DNxHD | |
| 220x | |
| 220x MXF | |
| 145 | |
| 145 MXF | |
| 45 | |
| 45 MXF for 720p and 1080p HD Formats up to 60 fps | |
| H.264 | |
| SDI 4:2:2 10-Bit | |
| High 4:2:0 8-Bit | |
| Medium 4:2:0 8-Bit | |
| Low 4:2:0 8-Bit for Progressive Formats up to 1080p60 | |
|
SYSTEM REQUIREMENTS
|
|
| Operating System |
macOS: 10.15(Catalina), 11.5 (Big Sur) or Later
|
| Windows: 10 64-Bit | |
|
GENERAL
|
|
| Rack Height |
1 RU
|
| Power Supply |
AC
|
| 100 to 240 VAC, 50/60 Hz | |
| DC | |
| 12 VDC; 1 x Locking 5.5 mm Barrel | |
| Operating Temperature |
41 to 122°F / 5 to 50°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Relative Humidity |
0 to 90% Non-Condensing
|
| Dimensions |
17.68 x 14 x 4.42 cm
|
| Weight |
0.82 kg
|
* Specifications subject to change by the manufacturer without notice.
