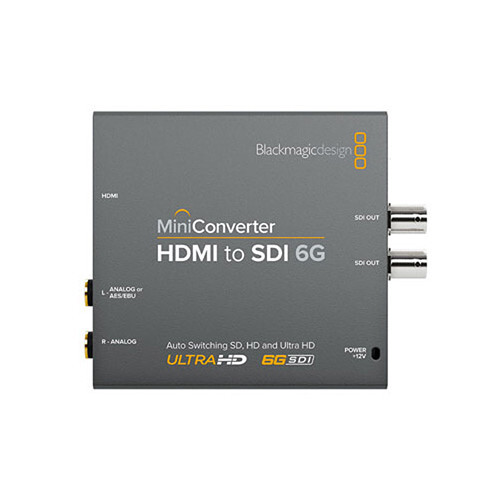

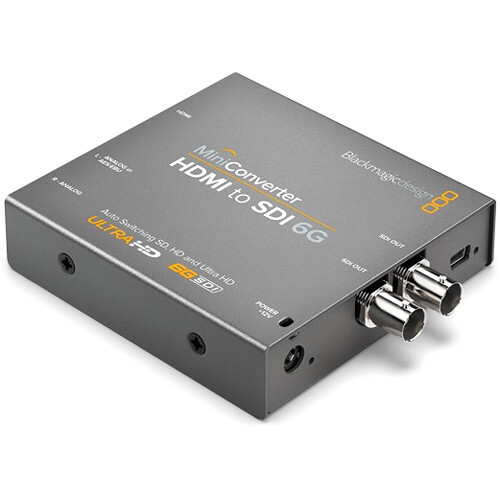

HDMI to SDI 6G Mini Converter

The Blackmagic Design HDMI to SDI 6G Mini Converter is the perfect way to connect consumer devices that output HDMI signals with professional SDI video equipment. It can convert HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. With its compact form factor and easy-to-use controls, this mini converter is ideal for a range of broadcast, post-production and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

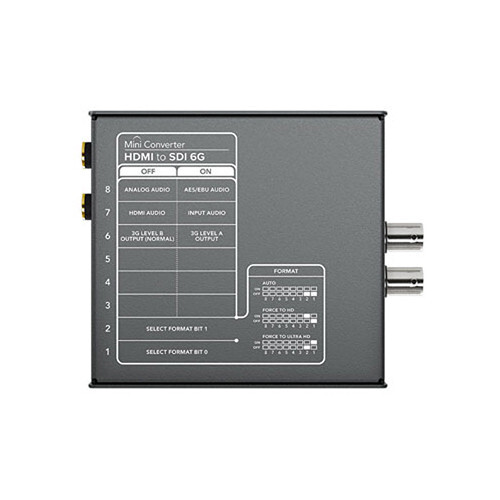

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.

The device is powered by an included 12V power supply and includes international socket adapters.

  • 4:2:2 Sampling and Colour precision
  • HD scaler and SD down-conversion
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
BLACKMAGIC DESIGN CONVMBHS

Video Input 1 x HDMI, Type A
Video Output 2 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking Yes
Audio Input Analog: 2 channels with 1 x 1/4" jack per channel
  AES/EBU: 4 channels with 1 x 1/4" jack
FORMAT SUPPORT

DCI 4K 24p
UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98
HD 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD NTSC: 525i/59.94
PAL: 625i/50
SDI Compliance SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081
ITU-R BT.656 and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling 4:2:2
SDI Colour Precision 4:2:2
SDI Colour Space YUV
SDI Audio Sampling 24-bit, 48 kHz
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI

HDMI FORMAT SUPPORT

UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98
HD 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD NTSC: 525i/59.94
PAL: 625i/50
HDMI Colour Space YUV and RGB
HDMI Colour Precision 4:2:2
4:4:4
HDCP Compliance No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion HD down-conversion
Settings Control Mini switches or USB software
Firmware Upgradeable Via USB
Power Supply 12 VDC
Power Consumption 4.44 W
Operational Voltage Range 12 to 31 VDC
Operating Temperature 32 to 104°F / 0 to 40 °C
Storage Temperature -4 to 113°F / -20 to 45 °C
Relative Humidity 0 to 90% non-condensing
Dimensions 11.40 x 9.22 x 2.29 cm
Weight 0.24 kg


* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design HDMI to SDI 6G Mini Converter
  • 12V Power Supply with International Socket Adapters
