Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
SKU code: 61287
- Displays Tallies for Video Signals
- Indicates On-air Status
- For ATEM Switchers / Videohub Routers
- 8 Contact Closure Inputs & Outputs
- Connects with Multiple Interfaces
$809.00
Dispatches within 3-5 business days*
For store pickup please contact us
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

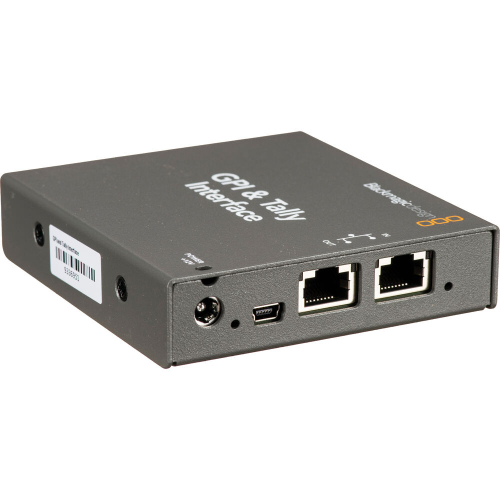

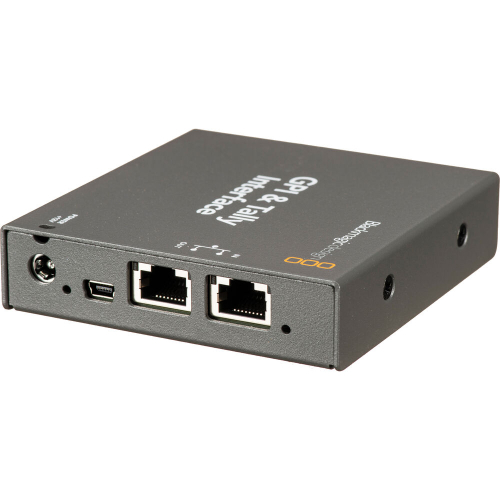

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is engineered to show tallies that indicate the on-air status of video signals. It includes 8 contact closure inputs and 8 contact closure outputs, allowing seamless connection to ATEM switchers and Videohub routers. Furthermore, this interface can be linked with multiple units to expand the number of inputs and outputs for enhanced operation.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
| Connections |
dd
|
| Contact Closure |

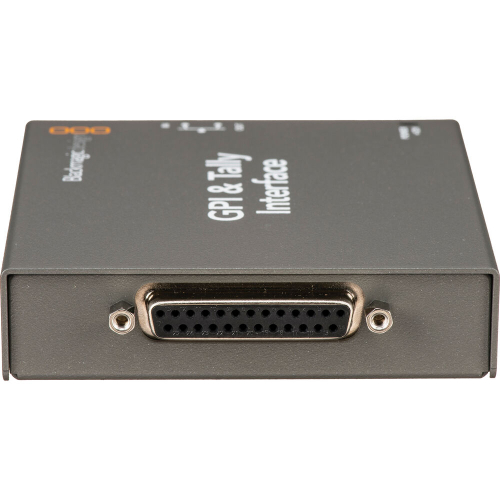

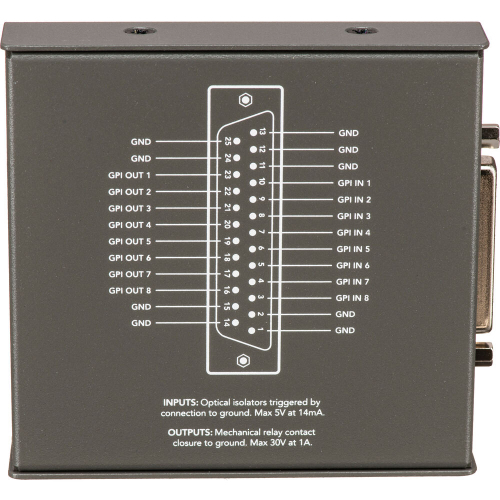

25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
|
| Inputs |
Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
|
| Outputs |
Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
|
| Ethernet |
10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
|
| Computer Interface |
1 x USB 2.0 high speed interface for configuration and firmware updates
|
| Extras |
|
| Software Included |
Configured via ATEM Switcher utility
|
| Firmware Upgrade |
Firmware built into software driver. Loaded at system startup or via updater software
|
| Operating System |
Microsoft Windows 7 and Apple Mac OS X
|
| Power Supply |
12 V power supply included with international socket adapters for all countries
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 12 V Power Supply
