Key Features:
- For DaVinci Resolve 17 Systems
- Requires Fairlight Audio Accelerator
- 192 Channels of MADI I/O
- 24-bit / 48 kHz Resolution
- Three 75-ohm BNC MADI Inputs
- Three 75-ohm BNC MADI Outputs
- Uses No Additional PCIe Bandwidth
- Half-length PCIe Board

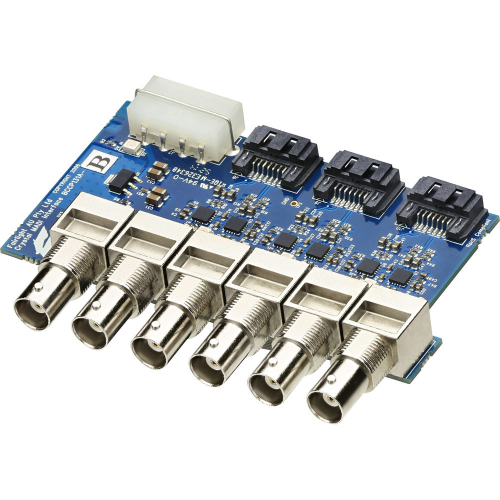

Blackmagic Design Fairlight PCIe Audio MADI Upgrade
SKU code: 61279
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
-
Direct Deposit
-
PayPal Express
-
American Express
-
MasterCard
-
Visa
Key Features:
- For DaVinci Resolve 17 Systems
- Requires Fairlight Audio Accelerator
- 192 Channels of MADI I/O
- 24-bit / 48 kHz Resolution
- Three 75-ohm BNC MADI Inputs
- Three 75-ohm BNC MADI Outputs
- Uses No Additional PCIe Bandwidth
- Half-length PCIe Board
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design Fairlight PCIe Audio MADI Upgrade
Enhance your Fairlight Audio Accelerator by integrating the Blackmagic Design Fairlight PCIe Audio MADI Upgrade, which adds an impressive 192 channels of MADI I/O to your DaVinci Resolve 17 system. This upgrade elevates your total MADI channel count to a remarkable 256 inputs and outputs, providing you with unparalleled audio routing capabilities. Designed as a half-length card, it requires no additional PCIe bandwidth and easily connects to the Fairlight Audio Accelerator (sold separately) using the supplied SATA cables, ensuring a straightforward installation and expanded audio functionality for your projects.
The Fairlight Audio MADI Upgrade operates at 24-bit / 48 kHz resolution. It features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs to provide extreme channel counts while using minimal physical space.
MADI Inputs
Three MADI inputs via 75-ohm BNC jacks
MADI Outputs
Three MADI outputs via 75-ohm BNC jacks
Audio Channels
Total of 192 inputs and outputs
Bit Depth and Sample Rate
24 bit / 48 kHz
PCI Form Factor
Single half-length PCIe x4 board
Power
4-pin computer power cable connector
Hardware Requirements
Requires Fairlight Audio Accelerator (available separately)
PCIe Requirements
Requires connection to Fairlight Audio Accelerator using three supplied SATA cables; uses no additional PCIe bandwidth
|
Channels of I/O
|
MADI:
|
| 192 Inputs / 192 Outputs at 48 kHz | |
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
|
CONNECTIVITY
|
|
|
|
|
| Digital Audio I/O |
3x BNC Coaxial MADI Input
|
| 3x BNC Coaxial MADI Output | |
| Host Connection |
1x PCIe
|
|
PERFORMANCE
|
|
| Impedance |
Coaxial MADI :
|
| 75 Ohms | |
|
DIGITAL AUDIO
|
|
| Sample Rates |
48 kHz
|
| Bit Depths |
24-Bit
|
| Sync Sources |
MADI
|
|
COMPATIBILITY
|
|
| OS Compatibility |
macOS 10.15 or Later
|
| Windows 10 (64-Bit Only) | |
| Required Hardware |
PCIe Card Slot
|
|
POWER
|
|
| Power Requirements |
PCIe
|
| Power Consumption |
4 W
|
|
PHYSICAL
|
|
| Operating Humidity |
0 to 90%
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
7.8 cm (Half-Size PCIe Card)
|
| Weight |
0.139 Kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Fairlight PCIe Audio MADI Upgrade
- SATA Cables (29.9 cm)
- Computer Power Cable
