Blackmagic Design Fairlight Audio Interface

Expand the I/O capabilities of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight Audio Interface, a 1 RU rackmount unit brimming with analog and digital connections. This versatile interface includes preamps for microphones and instruments, sample rate conversion, and sync capabilities at any standard frame rate. Featuring 24-bit / 192 kHz AD/DA converters and extensive synchronisation and control I/O, it delivers exceptional sonic performance. The Fairlight Audio Interface is ideal for professional postproduction engineers working in commercial studios and mixing stages, ensuring high-quality audio workflows.

It features two high-gain mic/instrument preamps with switchable phantom power, an 8-channel DB25 line input, and 20 AES digital inputs, allowing it to accommodate a variety of analog and digital sources. Outputs include 12 channels of analog line-level outs and 24 AES digital channels to serve complex setups. The interface is also outfitted with BNC ports for wordclock and video sync I/O, timecode and GPIO inputs and outputs on a DB25 connector, and RS-422 machine control ports.

For DaVinci Resolve 17 Systems

The Fairlight Audio Interface connects to the Fairlight Audio Accelerator PCIe card (required and available separately) with the supplied proprietary cable. It adds analog and digital connections, preamps for mics and instruments, sample rate conversion, and sync at any standard frame rate to your DaVince Resolve 17 system.

10 Analog Inputs

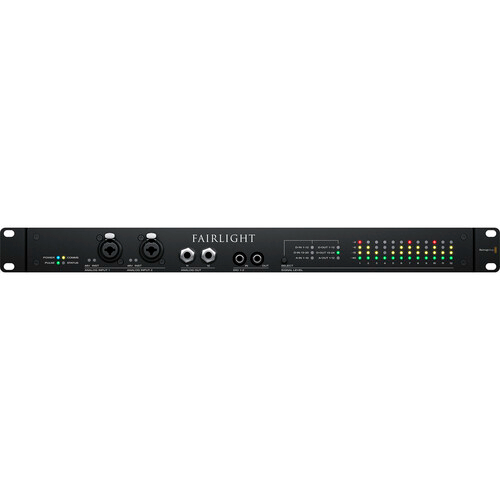

The interface features two remote-controlled XLR/TRS microphone/instrument inputs with 48V phantom power and up to +71.5 dB of gain, perfect for clean recording of dynamic mics, studio condensers, and electric instruments. There are also eight +24 dBu balanced analog inputs on a DB25 connector. The front panel of the interface sports multi-segment meters for easy viewing of audio levels.

12 Analog Outputs

With eight line outputs on a DB25 connector and four line outs on 1/4" jacks, the Fairlight Audio Interface can provide +24 dBu analog signal to your mixer or dedicated recording system. All analog outputs are balanced and feature mute protection.

20x24 Digital I/O

The front panel offers RCA coaxial ports for stereo AES or S/PDIF input and output. The other digital audio connections for transformer-coupled AES inputs 3-20 and AES outputs 3-24 are on the rear. Sample rate conversion is available on digital inputs 1-2.

Synchronisation I/O

  • 75-ohm BNC reference input for Tri-Sync or Black Burst
  • 75-ohm BNC reference loop out for Tri-Sync or Black Burst
  • 75-ohm BNC wordclock input
  • 75-ohm BNC wordclock regenerated output
  • Syncs to all common frame rates and formats including HD Tri-level sync, video sync, word clock, and AES/EBU

Timecode and Control I/O

  • RS-422 9-pin machine control input
  • RS-422 9-pin machine control output
  • DB25 connector to handle GPI and GPO connections for cough and On-Air control as well as timecode input and output with regeneration

Internal Power Supply

The Fairlight Audio Interface incorporates an internal power supply with an IEC C14 mains input. It is automatically powered on/off only when the Fairlight Audio Accelerator is powered on/off.

Channels of I/O
Analog:
  10 Inputs / 12 Outputs
  Digital:
  20 Inputs / 24 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Input Level Adjustment
2x via Software

SIGNAL PROCESSING



Gain/Trim Range
Mic Inputs:
  +21.5 to +71.5 dB
  Hi-Z Inputs:
  +0 to +50 dB

CONNECTIVITY


Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input (Front Panel)
  1x DB-25 25-Pin Balanced Line/8-Channel Input (AES 59/Tascam Pinout)
  1x DB-25 25-Pin Balanced Line/8-Channel Output (AES 59/Tascam Pinout)
  4x 1/4" TRS Balanced Line Output
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
1x RCA Coaxial AES3 / S/PDIF Input
  1x RCA Coaxial AES3 / S/PDIF Output
  2x DB-25 AES3 In & Out (AES 59/Tascam Pinout)
Host Connection
1x DVI-D (DL)
Host Connection Protocol
Blackmagic Design Fairlight Proprietary
Sync I/O
1x BNC Word Clock Input
  1x BNC Word Clock Output
  1x BNC Video Sync Input
  1x BNC Video Sync Output/Thru
MIDI I/O
1x DIN 5-Pin Input
  1x DIN 5-Pin Output
Other I/O
1x DB-25 25-Pin GPIO In/Out
  1x DE-9/DB-9 9-Pin Control Input
  1x DE-9/DB-9 9-Pin Control Output

PERFORMANCE


Frequency Response
Inputs:
  20 Hz to 20 kHz ±0.05 dB
  Outputs:
  20 Hz to 20 kHz +0.05/-0.5 dB
Maximum Input Level
Mic Inputs:
  +2.5 dBu
  Line/Hi-Z Inputs:
  +24 dBu
Maximum Output Level
Analog Outputs:
  +24 dBu
Impedance
Mic Inputs:
  2 Kilohms
  Hi-Z Inputs:
  > 1 Megohm
  Line Inputs:
  15 Kilohms
  Analog Outputs:
  50 Ohms
  BNC Inputs:
  75 Ohms
  BNC Inputs:
  75 Ohms
Dynamic Range
Combo XLR-1/4" Inputs:
  108 dB (Unweighted, Min Gain)
  DB-25 Inputs:
  110 dB (Unweighted)
  Outputs:
  109 dB (Unweighted)
THD+N
Combo XLR-1/4" Inputs:
  0.001% (Unweighted, 1 kHz, Min Gain, at -1 dBFS)
  DB-25 Inputs:
  0.001% (Unweighted, 1 kHz)
  Outputs:
  0.00002
EIN
Mic Inputs:
  -127 dBu (150-Ohm Source, +40 dB Gain)

DIGITAL AUDIO


Sample Rates
44.1 / 48 / 96 / 192 kHz
Sample Rate Conversion
On S/PDIF Inputs
Bit Depths
24-Bit
Sync Sources
AES3, Internal, S/PDIF, Word Clock

COMPATIBILITY


OS Compatibility
macOS 10.15 or Later
  Windows 10 (64-Bit Only)

POWER


Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
40 W

PHYSICAL


Rackmount Size
1 RU
Operating Humidity
0 to 90%
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Dimensions
48.18 x 27.9 x 4.42 cm
Weight
4.1 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Fairlight Audio Interface
  • Multipin Cable to Connect to Fairlight Audio Accelerator
