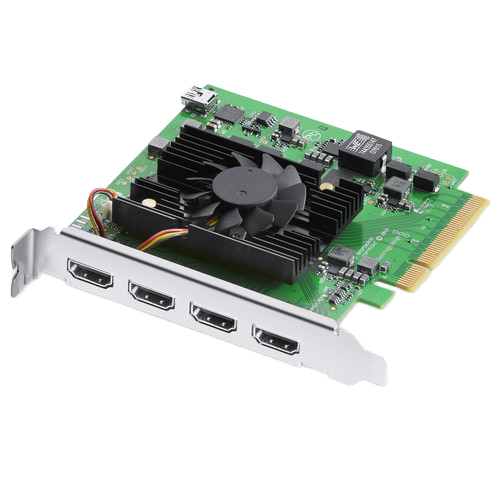

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
SKU code: 61249
- Record up to DCI 4K60 HDMI Video
- HDMI 2.0b Inputs
- PCIe Interface Card
- Up to 4K30 12-bit 4:2:2 in All Modes
- Switchable-mode HDMI Inputs
- 8-channel, 24-bit 48 kHz Embedded Audio
- macOS, Windows, and Linux Compatible
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
Ingest high-resolution 4K video and audio for streaming or editing applications with the DeckLink Quad HDMI Recorder Capture Card from Blackmagic Design. This PCIe card features four HDMI 2.0b inputs, supporting resolutions up to DCI 4K60. Additionally, the DeckLink Quad accommodates eight channels of embedded 24-bit 48 kHz audio, making it an ideal choice for professional media workflows.
The DeckLink Quad offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior colour correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications.
The DeckLink Quad is compatible with Mac, Windows, and Linux based workstations. Drivers and utility software are available on the manufacturer's website.
- Rec. 601, Rec. 709, and Rec. 2020 colour space
- Copy protection compliant; HDMI input is unable to capture from copy protected HDMI sources
- Supports eight channels of embedded 24-bit 48 kHz audio in SD/HD/UHD/DCI 4K
Software Applications Supported
Supports major software applications such as Wirecast, vMix, and OBS.
Other supported applications include Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, and Tools On Air Just: In.
|
INPUTS / OUTPUTS
|
|
|
|
|
| System Connection |
PCIe 1.0 x8
|
| Video Inputs |
4x HDMI (2.0b)
|
|
FORMAT SUPPORT
|
|
| Input Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
|
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines 59.94 fps | |
| 720p 50/59.94/60 fps | |
| 1080p 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080i 50/59.94/60 fps | |
| UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps | |
| DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps | |
| DVI | |
| 480p at 60 fps | |
|
HARDWARE
|
|
| OS Compatibility |
Windows 8.1 or Later
|
| macOS 10.14 or Later | |
| Linux | |
| Power Consumption |
23 W
|
|
ENVIRONMENTAL
|
|
| Operating Temperature |
41 to 104°F / 5 to 40°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Operating Humidity |
0 to 90%
|
|
GENERAL
|
|
| Certifications |
CE, FCC, RCM
|
| Dimensions |
10.897 cm
|
| Weight |
0.128 Kg
|
* Specifications subject to change by the manufacturer without notice.
