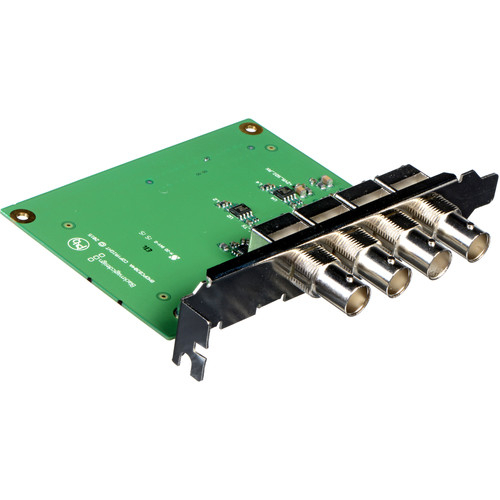

Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G

The Decklink Quad 3G-SDI Mezzanine Card for the Decklink 4K Extreme 12G from Blackmagic Design serves as a replacement for the original daughter card that was included with your Decklink 4K Extreme 12G PCIe board, ensuring optimal performance and functionality.

The daughter card features four BNC connectors that support 3G-SDI. The four connectors are grouped into two input and two output connectors that work in conjunction with the four 12G-SDI connectors on the main board. Replacing your original daughter (mezzanine) card with this one expands your cards input and output capabilities.

  • Replacing the original HDMI/optical fiber output daughter card with the Quad 3G-SDI board allows you to input and output a Quad 3G-SDI signal, which the main board cannot do by itself. Another input/output capability of the card is to input a 12G-SDI signal and output a Quad 3G-SDI signal.
  • Requires 10.4.2 driver to operate.
  • This daughter card only works when connected to the optional main board.
Minimum Requirements
Driver: 10.4.2
Connectors
4 x BNC (Quad Link 3G-SDI)


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G
