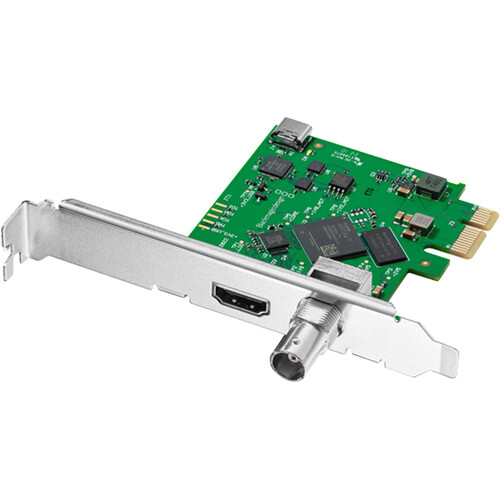

Blackmagic Design DeckLink Mini Recorder HD
SKU code: 61247
- Broadcast-quality Recording
- 1-lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Inputs
- Supports up to 2K DCI over SDI
- Up to 1080p60 Resolution Support in HDMI
- 8-, 10-, 12-bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design DeckLink Mini Recorder HD
Record HD video via SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe playback card features SDI and HDMI inputs and is compatible with 1-, 4-, 8-, and 16-lane PCIe slots. It enables you to capture up to DCI 2K video over SDI and HD video over HDMI 2.0, making it a versatile choice for your recording needs.
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time colour space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
- Wirecast
- vMix
- OBS
- Cinergy Capture Pro
- DevTek EasyMediaSuite
- Glookast Capturer
- Livestream Producer
- Metus Ingest
- Softron MovieRecorder
- ToolsOnAir just:in
- Burst Video WebClip2Go & [REC]Marker
- Zoom
Supported Codecs
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAMHD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
|
INPUTS / OUTPUTS
|
|
|
|
|
| Video Inputs |
1x BNC (3G-SDI)
|
| 1x HDMI (2.0) | |
|
FORMAT SUPPORT
|
|
| Input Video Format |
SDI (8/10/12-Bit 4:4:4 RGB)
|
| 1080p at 23.98/24/25/29.97/30 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| SDI (8/10-Bit 4:2:2 YUV) | |
| DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1080i at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| HDMI (8-Bit 4:4:4 RGB, YUV) | |
| 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080i at 50/59.94/60 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| HDMI (12-Bit 4:4:4 YUV) | |
| 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080i at 50/59.94/60 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Embedded Audio |
SDI: 16-Channel
|
| HDMI: 8-Channel | |
|
STANDARDS
|
|
| Video Standard Compliance |
SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
|
|
HARDWARE
|
|
| OS Compatibility |
macOS 11.1
|
| macOS 12.0 or Later | |
| Windows 10 | |
| Windows 11 | |
| Linux | |
| Power Consumption |
Device: 3 W
|
|
ENVIRONMENTAL
|
|
| Operating Temperature |
37 to 72°F / 5 to 40°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Operating Humidity |
0 to 90% ()
|
| Storage Humidity |
0 to 90% (Non-Condensing)
|
|
GENERAL
|
|
| Dimensions |
9.195 cm
|
| Weight |
0.056 Kg
|
* Specifications subject to change by the manufacturer without notice.
"
- Blackmagic Design DeckLink Mini Recorder HD
- Low-profile Slot Bracket
