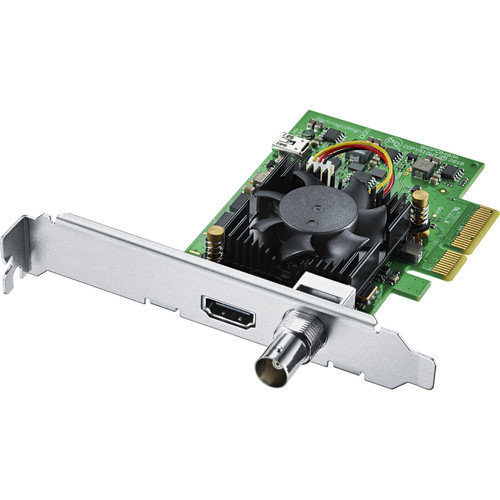

Blackmagic Design DeckLink Mini Recorder 4K

Record SD, HD, or 4K footage via HDMI or SDI with the Blackmagic Design DeckLink Mini Recorder 4K. Whether you're recording for broadcast or upgrading older media to more robust formats for current projects, this device has you covered. The input panel features a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both supporting DCI and UHD 4K resolutions.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

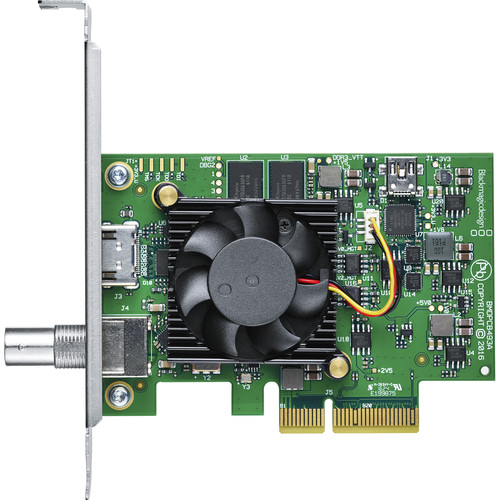

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

Processing Features

  • Colour Space Conversion: Hardware-based, real-time colour space conversion
  • HD Up-Conversion: Software-based down-conversion during video playback

Software Support

DaVinci Resolve, Fusion, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Media Express, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video I/O
Input
  1x BNC (6G-SDI) Female
  1x HDMI 2.0a Female

FORMAT SUPPORT


Video Resolution
BNC Input (8/10-Bit 4:2:2 YUV)
  4096 x 2160 at 23.98/24/25 fps
  3840 x 2160 at 23.98/24/25/29.97/30 fps
  2048 x 1080p at 23.98/24/25 fps
  2048 x 1080PsF at 23.98/24/25 fps
  BNC Input (8/10/12-Bit 4:4:4 RGB)
  1920 x 1080p at 23.98/24/25/29.97/30 fps
  1920 x 1080i at 50/59.94/60 fps
  1920 x 1080PsF at 23.98/24/25/29.97/30 fps
  1280 x 720 at 50/59.94/60 fps
  720 x 576i at 50 fps
  720 x 480i at 59.94 fps
  HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
  4096 x 2160
  3840 x 2160
  1920 x 1080p
  1920 x 1080PsF
  1920 x 1080i
  1280 x 720
  720 x 576i
Audio Format
Unspecified Digital Signal Input: 48 kHz / 24-Bit
Embedded Audio
SDI: 16-Channel
  HDMI: 8-Channel

STANDARDS


Video Standard Compliance
SMPTE: 259M/292M/372M/425M/ST-2081
  ITU-R: BT.601/BT.656
HDR Support
Yes, Hybrid Log Gamma
Broadcast System Compatibility
NTSC, PAL
OS Compatibility
Windows 7 or Later
  macOS 10.14 or Later
  Linux

POWER


Power Consumption
8 W

GENERAL


Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Dimensions
11.94 cm
Weight
0.09 Kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design DeckLink Mini Recorder 4K
  • Low-profile Bracket
