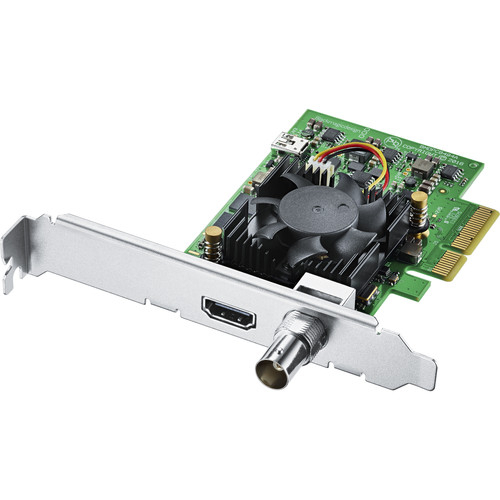

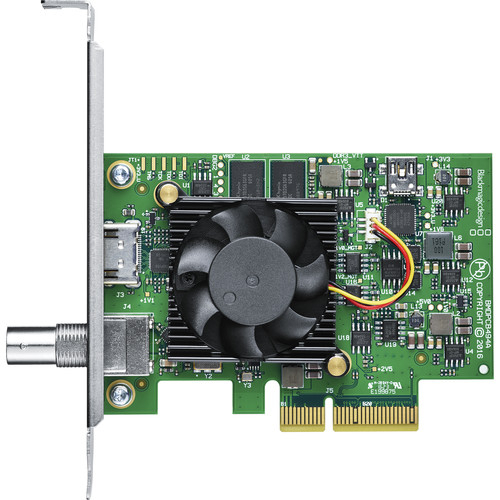

Blackmagic Design DeckLink Mini Monitor 4K

The DeckLink Mini Monitor 4K from Blackmagic Design allows you to play out 4K content to high-resolution monitors and recorders in real-time from your compatible editing system. Featuring a 6G-SDI output (backward compatible with SD, HD, and 3G formats) and HDMI 2.0 terminals, this card lets you connect effortlessly to professional broadcast equipment as well as consumer monitors and televisions.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution output of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

Processing Features

  • Colour Space Conversion: Hardware-based, real-time colour space conversion
  • HD Down-Conversion: Software-based down-conversion during video playback
  • Real-Time Effects: Supports real-time effects from Final Cut Pro X, Premiere Pro CC Mercury Playback Engine, and Avid Media Composer Effects

Software Support

DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity, InfoCaster

INPUTS / OUTPUTS


System Connection
PCIe 2.0 x4
Video Outputs
1x BNC (6G-SDI) Female
  1x HDMI (2.0a) Female

FORMAT SUPPORT


Output Video Format
SDI (8/10-Bit 4:2:2 YUV)
  DCI 4K at 23.98/24/25 fps
  UHD 4K at 23.98/24/25/29.97/30 fps
  DCI 2K at 23.98/24/25 fps
  DCI 2KPsF at 23.98/24/25 fps
  SDI (8/10/12-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080PsF at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines
  480i / 525 lines
  HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
  DCI 4K at 23.98/24/25 fps
  UHD 4K at 23.98/24/25/29.97/30 fps
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080PsF at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines
  480i / 525 lines
Embedded Audio
SDI: 16-Channel
  HDMI: 8-Channel

STANDARDS


Video Standard Compliance
SMPTE 259M/292M/296M/372M/425M/ST-2081
  ITU -R BT.601/BT.656

HARDWARE


OS Compatibility
Windows 7 or Later
  macOS 10.14 or Later
  Linux
Power Consumption
10 W

ENVIRONMENTAL


Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%

GENERAL


Dimensions
11.94 cm
Weight
0.090 Kg



* Specifications subject to change by the manufacturer without notice.

"

  • Blackmagic Design DeckLink Mini Monitor 4K
  • Low-Profile Bracket
