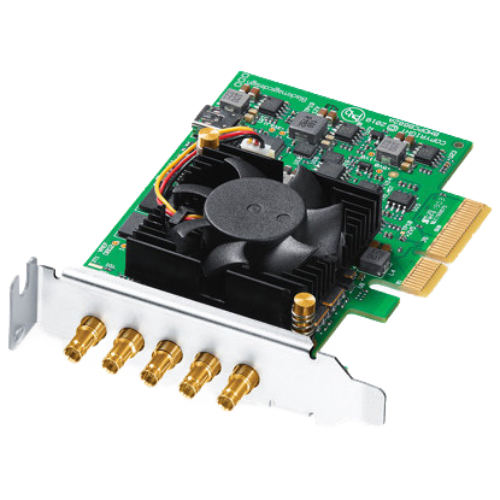

Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card

Effortlessly ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the DeckLink Duo 2 Mini from Blackmagic Design. This low-profile PCIe card boasts four bidirectional mini BNC SDI inputs/outputs, featuring multi-rate connections that accept 3G/HD/SD-SDI signals and support resolutions from SD to HD 1080p60. The DeckLink Duo 2 Mini also includes a reference input and accommodates 16 channels of 48 kHz 24-bit audio for comprehensive audio-visual performance.

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior colour correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

Software Applications Supported

Supports major software applications such as DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, and Adobe Photoshop CC.

Other supported applications include The Foundry Nuke, Grass Valley EDIUS, Sony Catalyst Production Suite, Tools On Air Just: Play/Live/In, Softron MovieRecorder/MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro/Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio /Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity/InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard/Coral CG, Glookast Capturer, Open Broadcaster Software Studio, and Nautilus NEMO3D.

Supported Operating Systems
macOS 10.13, 10.14 or Later
  Windows 7, 8.1, 10 (All 64-Bit)
  Linux
Inputs/Outputs
4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
  1 x Reference In
Sync Input
Tri-Sync or Black Burst
Computer Interface
PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
Audio Channels
16 x Embedded, HD and SD (Input and Output)
Video Support
HD:
  1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  1080PsF: 23.98, 24, 25, 29.97, 30
  1080i: 50, 59.94, 60
  720p: 50, 59.94, 60
  SD:
  525i: 59.94 NTSC
  625i: 50 PAL
Audio Sample Rate
24-Bit, 48 kHz
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
Conversion Modes
Playback: 720p to 1080p, 1080p to 720p
  Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
  Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
  colour Space Conversion: Hardware-Based, Real-Time
Colour Space
Rec. 601, Rec. 709
SDI Colour Precision
8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
  8, 10-Bit YUV 4:2:2 (In All Modes)
  12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Video Sampling
8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
  8, 10-Bit YUV 4:2:2 (In All Modes)
  12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Metadata Support
RP 188/SMPTE 12M-2 and Closed Captioning
Power Consumption
10 W
Certifications
FCC, CE, and C-Tick
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Relative Humidity (non-condensing)
0 to 90%
Length
9.9 cm, Low-Profile Form Factor
Weight
0.87 kg

* Specifications subject to change by the manufacturer without notice.


  • Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
  • SD Card with Drivers and Utilities
