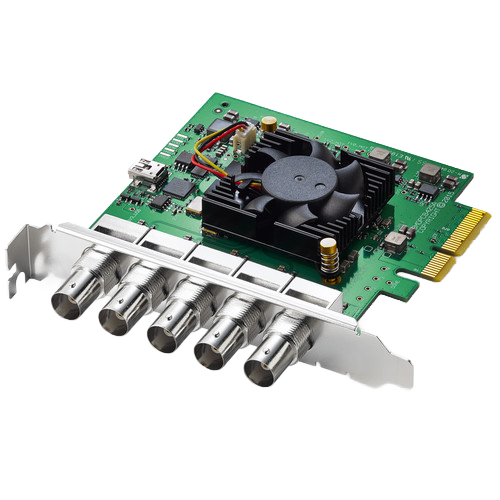

Blackmagic Design DeckLink Duo 2
SKU code: 61238
- SD/HD/3G-SDI Input/Output
- PCI-E Interface
- 1080p 4:4:4 by Single-link 3G-SDI
- 10/12-bit Processing
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatible
$809.00
Dispatches within 3-5 business days*
For store pickup please contact us
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design DeckLink Duo 2
Featuring four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is an adaptable video I/O card ideal for professional video workflows. Each SDI interface can be set up as either an input or an output, allowing your computer to function as a media play-out system, a multi-screen digital signage server, a live keyer, or a real-time multi-channel capture system tailored to your current needs. Additionally, a reference input is included for syncing with other studio equipment.
Processing
- Colour space conversion: Hardware based real time
- HD down conversion: Built-in, high-quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
- HD up conversion: Built-in, high-quality software up conversion from SD to 720 or 1080 HD on input. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom.
- Cross conversion: Built-in, high-quality hardware cross conversion from 720 to 1080 HD, and 1080 to 720 on playback.
- Real-time effects support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, and Avid Media Composer internal effects.
Software Compatibility
- The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:
- Blackmagic Design: DaVinci Resolve, Fusion 8
- Apple: Final Cut Pro X
- Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Steinberg: Cubase, Nuendo
For an up-to-date list, see the Blackmagic Design website
|
INPUTS / OUTPUTS
|
|
|
|
|
| System Connection |
PCIe 2.0 x4
|
| Video Inputs |
4x BNC (12G-SDI) Female
|
| Other I/O |
1x BNC Blackburst, Reference, Tri-Level Sync Input
|
|
FORMAT SUPPORT
|
|
| Input Video Format |
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
|
| 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1080PsF 23.98/24/25/29.97/30 fps | |
| 1080i 50/59.94/60 fps | |
| 720p 50/59.94/60 fps | |
| 576i / 625 lines 50 fps | |
| 480i / 525 lines 60 fps | |
| Input Audio Format |
Analog: 48 kHz / 24-Bit
|
| Embedded Audio |
SDI: 16-Channel
|
|
STANDARDS
|
|
| Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M
|
| ITU -R BT.601/BT.656 | |
|
HARDWARE
|
|
| OS Compatibility |
Windows 8.1.10 or Later
|
| macOS 10.14.15 or Later | |
| Linux | |
| Power Consumption |
10 W
|
|
ENVIRONMENTAL
|
|
| Operating Temperature |
37 to 72°F / 5 to 40°C
|
| Storage Temperature |
-4 to 113°F / -20 to 45°C
|
| Operating Humidity |
0 to 90%
|
|
GENERAL
|
|
| Certifications |
C-Tick, CE, FCC
|
| Dimensions |
9.4 cm
|
| Weight |
0.160 Kg
|
* Specifications subject to change by the manufacturer without notice.
