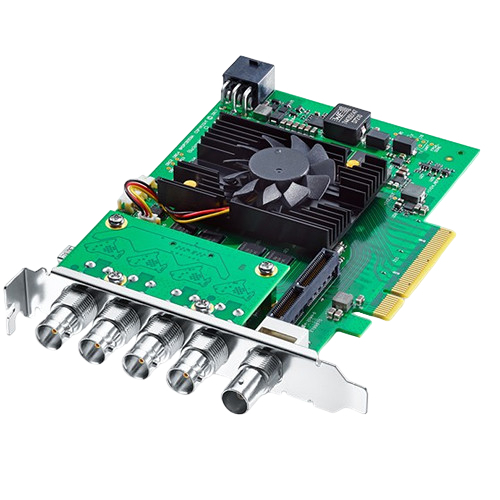

Blackmagic Design Decklink 8K Pro Cinema Capture Card
SKU code: 61236
- 8-lane PCIe Gen3 I/O Card
- Multi-rate 12G-SDI
- Supports 8K and DCI 8K up to 60 fps
- Single & Dual Link 4:4:4/4:2:2 Signals
- Compatible with Mac, Windows, and Linux
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design Decklink 8K Pro Cinema Capture Card
The Blackmagic Design Decklink 8K Pro Cinema Capture Card is an 8-lane PCIe Gen2 digital cinema capture and playback solution featuring four bidirectional 12G-SDI connectors. It supports resolutions from SD to DCI 4K (4096 x 2160) and DCI 8K at up to 60 fps. The card accommodates 8- and 10-bit YUV, as well as 8-, 10-, and 12-bit RGB colour. Each of the four 12G-SDI connections provides 16 channels of embedded audio, totaling 64 channels. The Decklink 8K Pro is designed for the next generation of high-resolution, high-frame-rate, and high-dynamic-range workflows.
Flexible Format Support
The card offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 12-bit 4:4:4 uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior colour correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux based workstations.
| SDI Video Input |
4 x Bidirectional 12 Gb/s SD/HD/2K/4K/8K
|
| Supports single, dual link, and quad link 4:2:2/4:4:4. 2D/3D switchable | |
| SDI Video Output |
4 x Bidirectional 12 Gb/s SD/HD/2K/4K/8K
|
| Supports single, dual link, and quad link 4:2:2/4:4:4. 2D/3D switchable | |
| SDI Audio Input |
16 x Channels embedded in HD/2K/4K
|
| 8 x Channels embedded in SD | |
| SDI Audio Output |
16 x Channels embedded in 2K/HD/SD
|
| 64 x Channels embedded in 8K/4K | |
| Sync Input |
Tri-Sync or Black Burst
|
| Computer Interface |
PCI Express 8-lane generation 3, compatible with 8- and 16-lane PCI Express slots
|
| Supported Codecs |
AVC-Intra
|
| AVCHD | |
| Canon XF MPEG2 | |
| Digital SLR | |
| DV-NTSC | |
| DV-PAL | |
| DVCPRO50 | |
| DVCPROHD | |
| DPX | |
| HDV | |
| XDCAM EX | |
| XDCAM HD | |
| XDCAM HD422 | |
| DNxHD | |
| DNxHR | |
| Apple ProRes 4444 | |
| Apple ProRes 422 HQ | |
| Apple ProRes 422 | |
| Apple ProRes LT | |
| Apple ProRes 422 Proxy | |
| Uncompressed 8-bit 4:2:2 | |
| Uncompressed 10-bit 4:2:2 | |
| Uncompressed 10 bit 4:4:4 | |
| Supported Applications |
Apple Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Adobe Photoshop CC, DaVinci Resolve, Fusion, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, The Foundry Nuke, Grass Valley Edius, Steinberg Nuendo, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D
|
| Video Standards |
DCI 8K Video Standards
|
| 8Kp: 60/59.94/50/30/29.97/25/24/23.98 | |
| 8K Video Standards | |
| 8Kp: 60/59.94/50/30/29.97/25/24/23.98 | |
| DCI 4K | |
| 4Kp: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K | |
| 2160p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 2K | |
| DCI 2Kp: 60/59.94/50/30/29.97/25/24/23.98 | |
| DCI 2KPsF: 30/29.97/25/24/23.98 | |
| HD | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| SD | |
| 525i: 59.94 | |
| 625i: 50 | |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601
|
| SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning
|
| Sampling |
Video:
|
| 4:2:2, 4:4:4 | |
| Audio: | |
| Television standard sample rate of 48 kHz at 24-bit | |
| Colour Precision |
SDI: 8, 10, 12-bit RGB 4:4:4 in all modes up to 8K DCI 30p, and 8, 10-bit YUV 4:2:2 in all modes.
|
| Colour Space |
REC 601, REC 709, REC 2020
|
| Deep colour Support |
Yes
|
| Multiple Rate Support |
SDI video connections are switchable between SD/HD/2K/4K and 8K
|
| colourspace Conversion |
Hardware-based, real time on output
|
| 3D Processing |
Left eye/right eye dual stream capture and playback
|
| Real Time Effects |
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects
|
| Operating Systems Supported |
macOS 10.12 Sierra, macOS High Sierra 10.13 or later
|
| Windows 7, 8.1, 10 all 64-bit | |
| Linux | |
| Software Update |
Firmware built into software driver; loaded at system start or via updater software
|
| Physical Installation |
PCI Express 8-lane generation 3, compatible with 8, 16-lane PCI Express slots on Mac OS, Windows, and Linux
|
| Power Consumption |
19 W
|
| EMC Certifications |
EMC, FCC, CE, KCC and C-Tick
|
| Operating Temperature |
41 to 122°F / 5 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Relative Humidity |
0 to 90% non-condensing
|
| Dimensions |
16.38 cm
|
| Weight |
0.227 Kg
|
* Specifications subject to change by the manufacturer without notice.
