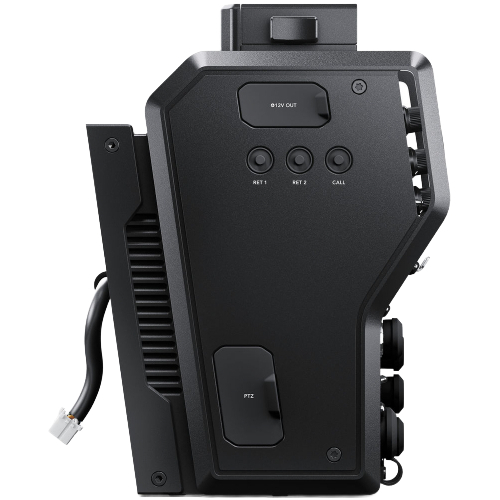

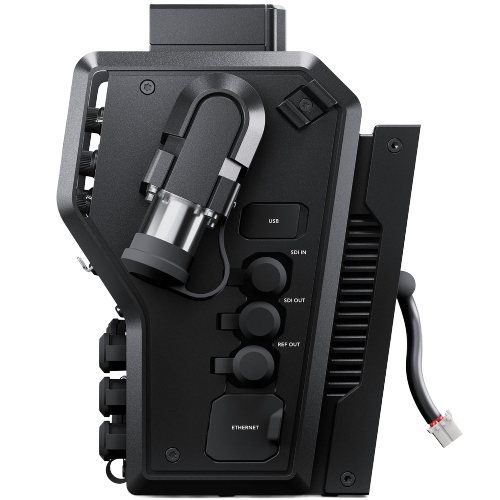

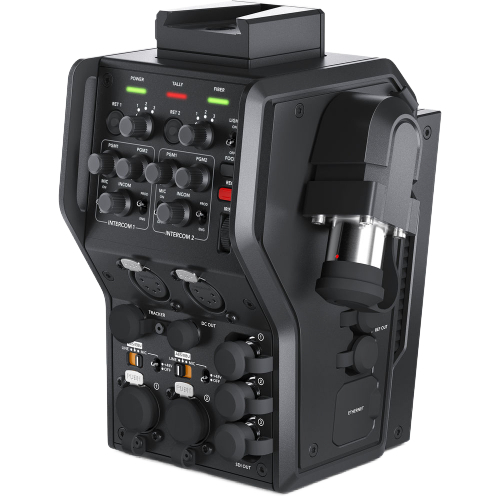

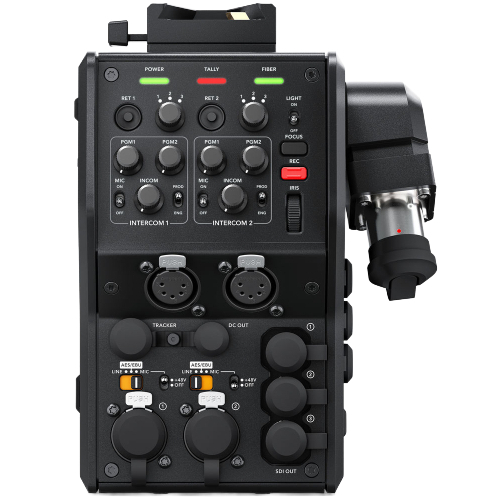

Blackmagic Design Camera Fiber Converter

Secure the Blackmagic Design Camera Fiber Converter to your URSA Broadcast camera to interface with studio infrastructure via SMPTE fibre optic cable and a separately available Studio Fibre Converter for breakout up to 1.6 miles away. The converter moves the most common camera controls to the rear of the camera assembly for ease of operator access. Studio-standard connectivity includes talkback headset 5-pin XLR ports, as well as SDI video for monitor output. The Camera Fibre Converter features a single outgoing 12G-SDI connection for HD or UHD 4K video, and three incoming 3G-SDI connections for monitoring with a separate studio viewfinder. Use the V-lock at the top to secure the studio viewfinder. All mounting hardware is included to secure the converter to the camera.

Connections
SMPTE Optical Fiber: 1 x SMPTE 304
12G-SDI Input: 1 x BNC
12G-SDI Output: 1 x BNC
3G-SDI Return Output: 3 x BNC
Talkback Headset: 2 x 5-pin XLR
Analog Audio Input: 2 x XLR (AES/mic/line)
Computer: 1 x USB Type-C
Video Standards
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.9
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI Standards
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Audio Sampling
24-bit, 48 kHz
Video Sampling
0.17
Bit Depth
10-bit
Colour Space
REC 709, REC 2020
Dimensions
19.1 x 14 x 13.8 cm
Weight
2.2 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Camera Fiber Converter
  • Camera Mounting Bracket with Screws
  • SDI Cables
