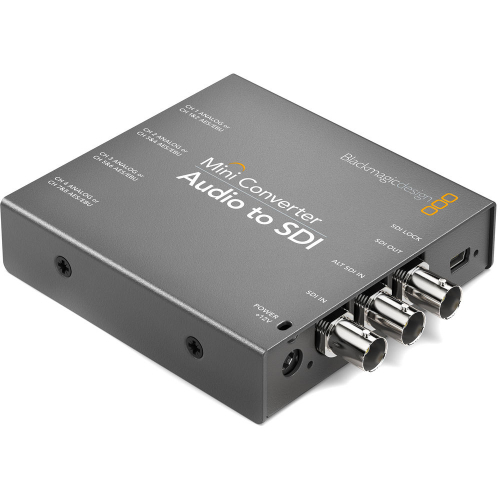

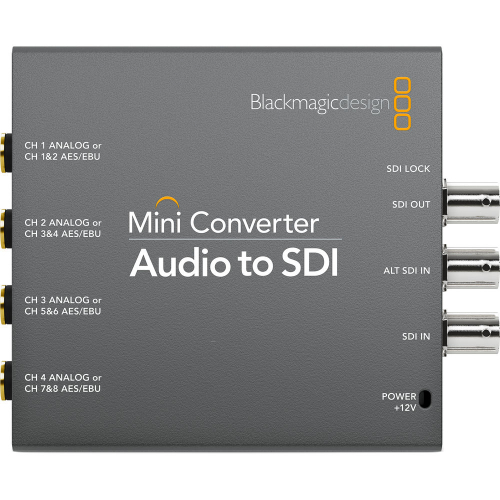

Blackmagic Design Audio to SDI Mini Converter
SKU code: 61308
- Embed Audio into up to 1080p SDI Signals
- Four 1/4" Audio Input Jacks
- Supports 4 Channels of Analog Audio
- Supports 8 Channels of AES/EBU Audio
- Redundant SDI Backup Input
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design Audio to SDI Mini Converter
Embed high-quality audio into SDI sources up to 1080p60 with the Blackmagic Audio to SDI Mini Converter. Featuring support for up to four channels of balanced analog or eight channels of AES/EBU audio through 1/4'' jacks, it's ideal for professional SDI audio integration.
In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.
SDI Input |
1 x SDI on BNC (switchable between 3G/HD/SD)
|
1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost) | |
Audio Input |
4 x 1/4" jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio
|
SDI Output |
1 x SDI on BNC (switchable between 3G/HD/SD)
|
SDI Auto Switching |
Auto-detection of 3G/2K/HD/SD-SDI
|
Updates and Configuration |
Via USB 2.0 high-speed (480 Mb/s)
|
Reclocking |
Yes
|
SDI Compliance |
SMPTE 292M/259M/296M/372M/424M-B/425M
|
ITU-R BT.656/BT.601 | |
SDI Video Rates |
SDI video connections are switchable between HD and SD
|
SDI Video Sampling |
4:2:2, 4:4:4
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit
|
SDI Colour Precision |
4:2:2, 4:4:4
|
SDI Colour Space |
YUV, RGB
|
SDI Auto Switching |
Automatically selects between 3G/HD/SD
|
SDI Format Support |
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
525i: 59.94 NTSC | |
625i: 50 PAL | |
2K Format Support |
2K DCI 25p/24p/23.98p
|
2K DCI 25PsF/24PsF/23.98PsF | |
Software Control |
Mac OS X and Windows software upgrade via USB
|
Internal Software Upgrade |
Via included updater application
|
Operating System |
Mac OS X 10.11 El Capitan, macOS Sierra or later
|
Windows 8.1 or Windows 10 | |

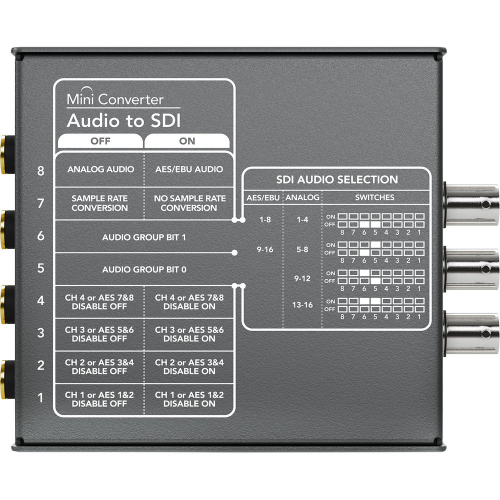

Settings Control |
Mini switches or USB software
|
Power Supply |
+12 V universal power supply included, with international socket adapters for all countries and cable tie point
|
Power Consumption |
8.4 W
|
Operational Voltage Range |
12 VDC
|
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Storage Temperature |
-4 to 113°F / -20 to 45°C
|
Relative Humidity |
0 to 90% non-condensing
|
Dimensions |
11.5 x 9.2 x 2.3 cm
|
Weight |
0.215 kg
|
* Specifications subject to change by the manufacturer without notice.
- Blackmagic Design Audio to SDI Mini Converter
- 12V Universal Power Supply
- Set of International Socket Adapters
