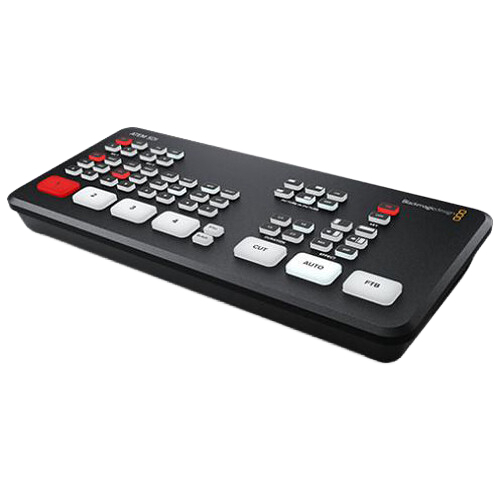

Blackmagic Design ATEM SDI Switcher

Designed for multi-camera live streaming to the internet or broadcast applications, the compact ATEM SDI from Blackmagic Design provides a versatile solution for gaming consoles, corporate computer streams, or HD cameras. This four-input live-production switcher features an integrated control panel, with four SDI inputs located on the rear of the chassis, supporting up to 1080p60 video. Additionally, it offers two 3G-SDI outputs for projectors or external monitors, a USB-C output for streaming up to 1080p60 to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.

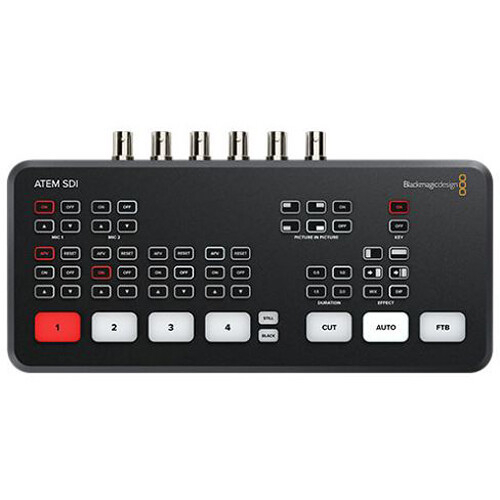

The control surface features easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two colour generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The SDI output supports a minimum of 1366 x 768 resolution for monitoring your stream. It also supports the ATEM Software Control Panel via Ethernet for control and configuration.

Transitions

Available transitions include:

  • Cut: when you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.
  • Mix: the mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
  • Dip: just like mix transitions, a dip transition is a gradual blend that includes either a solid colour, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
  • Wipe: built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened, and can even have customised coloured borders.
  • DVE: with the powerful built-in Digital Video Effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.

Upstream Keyer

Layer live video over other video sources or graphics with the Upstream Keyer. You can use luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

  • Luma key: luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.
  • Linear key: get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a grey scale mask to cut out, or mask, the area to be filled.
  • Chroma key: used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that colour and combine it with another image, such as a video or graphic.
  • Pattern key: combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.

Downstream Keyers

The ATEM SDI switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Media Player

Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Available M/E Layers
5 M/E
Effect Types
DVE, Transition, Chroma Key
Generators
1x Pattern
  2x Colour
Audio Mixing
2-Channel Mixing

PROCESSING


Switching Type
IR Remote, Pushbutton, Software

INPUT


Number of Video Input Sources
4
Video Inputs

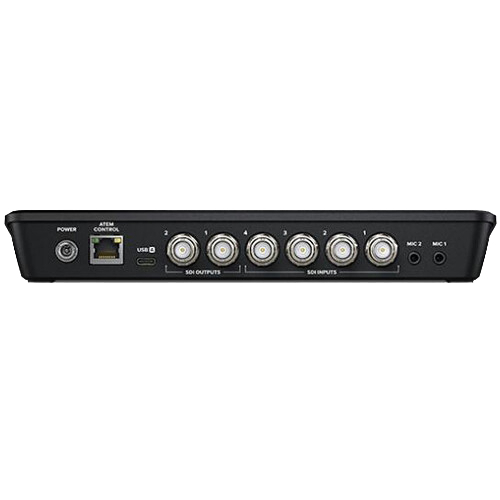

4x BNC (3G-SDI)
Input Video Format
SDI (10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 56/59.94/60 fps
  720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
SDI: 2-Channel (per Input)

OUTPUT


Video Output Channels
3
Video Outputs
2x BNC (3G-SDI) (Program)
Output Video Format
SDI (10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  USB-C (10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output
SDI

CONNECTIVITY


Other I/O
1x RJ45 Control Input/Output

HARDWARE


Operating System
macOS, Windows 10 Home, Windows 11 Home
OS Compatibility
macOS 11 or Later / Windows 10 or Later
OS Compatibility
macOS 11
  macOS 12 or Later
  Windows 10
  Windows 11
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 18 W

GENERAL


Operating Conditions
37 to 72°F / 5 to 40°C up to 90% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
23.75 x 11.86 x 3.51 cm
Weight
0.678 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design ATEM SDI Switcher
  • 12 VDC External Power Supply
