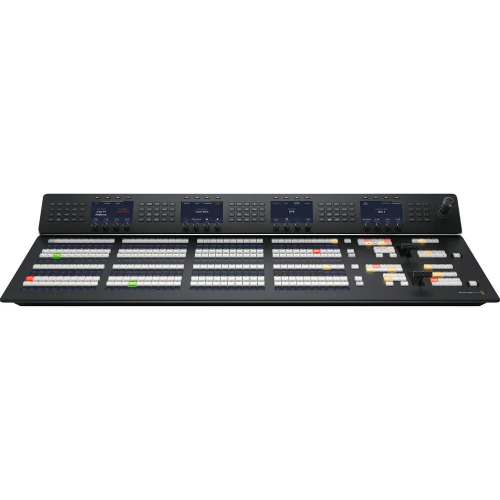

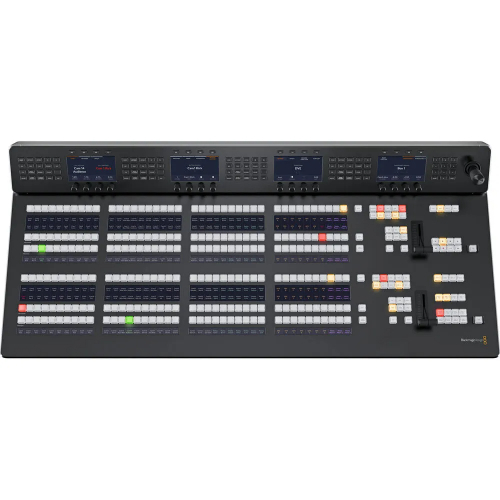

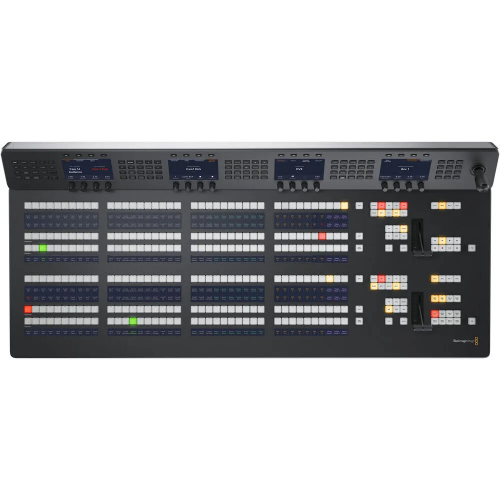

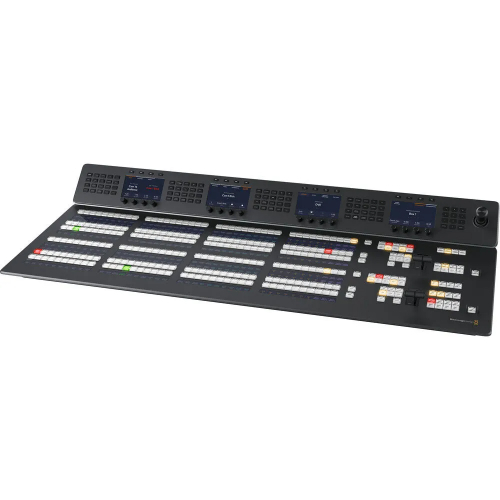

Blackmagic Design ATEM 4 M/E Advanced Panel 40
SKU code: 61113
- Panel for ATEM Constellation Switcher
- High-quality Buttons / Knobs / Controls
- 4 M/E Rows, 40 Input Buttons Each Row
- 24 Independent, 4 System Control LCDs
- Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 20 On-air Indicators, 40 Cross Points
- 3-axis Joystick, Keypad, 4 Fader Bars
- USB Type-C Input for Firmware Updates
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
Blackmagic Design ATEM 4 M/E Advanced Panel 40
The ATEM 4 M/E Advanced Panel is a sophisticated upgrade from earlier models, designed to complement professional ATEM switchers like the ATEM Constellation Switcher, available separately. Featuring a multitude of buttons, knobs, four fader bars, and a 3-axis joystick, this panel allows you to customise its operation to perfectly suit your needs, enhancing your production workflow.
Complex live productions require a versatile, programmable control panel, and the ATEM 4 M/E Advanced Panel allows you to customise, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and it also sports 20 on-air indicators. The panel features four rows of M/E with 40 input buttons per row, four system control LCDs, 24 independent LCDs for custom labeling, 40 direct cross points, 80 shifted cross points, four preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.

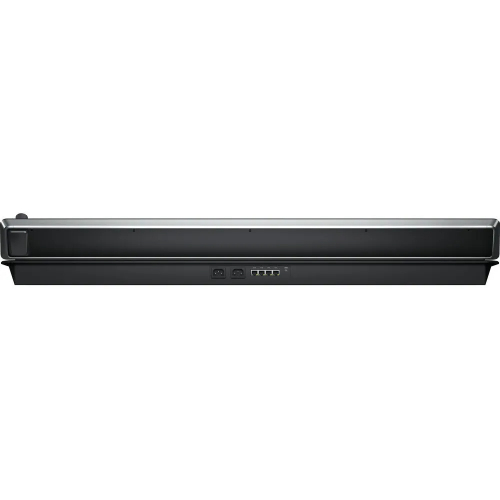

The ATEM 4 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB Type-C input.
| Ethernet Connector | 4 x RJ45, 10/100/1000 BaseT |
| Other I/O | 1 x USB Type-C, Firmware |
| Buttons | 160 x Input Buttons (40 x per Row) |
| Mix/Effect Buses (M/E) | 40 x Direct Cross Points |
| 80 x Shifted Cross Points | |
| 4 x M/E Rows | |
| 4 x BKG Next Transition Selectors, Key 1 to Key 4 | |
| 20 x On-Air Indicators | |
| 4 x DSK Transition Selectors: Auto, Cut, Tie/Preview | |
| 4 x Preview Transitions | |
| Controls | 1 x 3-Axis Joystick |
| 1 x Numeric Keypad | |
| 4 x Fader Bar | |
| 24 x Transport Control Buttons | |
| Redundant Power | Yes |
| Input Voltage | 100 to 240 VAC |
| Power Consumption | 250 W |
| Dimensions | 11 x 75.5 x 15.6 cm |
| Weight | 26 kg |
* Specifications subject to change by the manufacturer without notice
