Blackmagic Design ATEM 2 M/E Advanced Panel 40

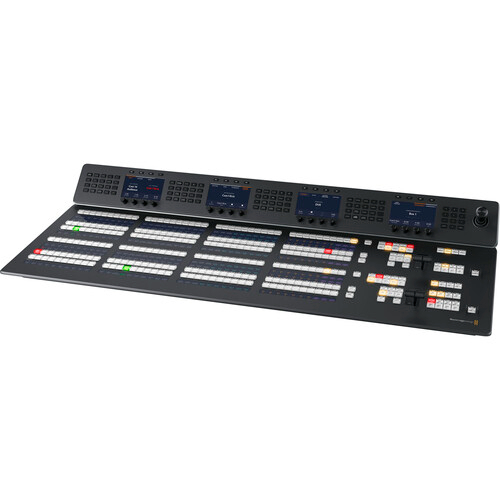

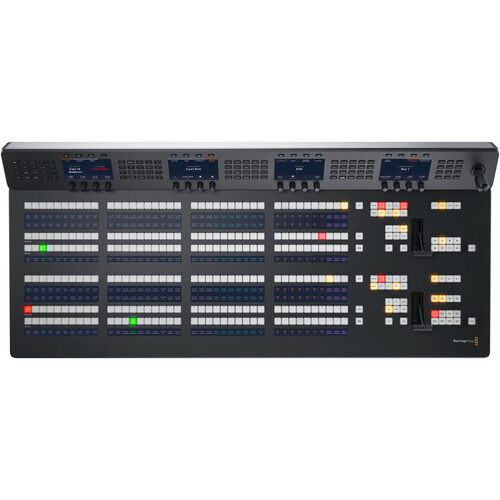

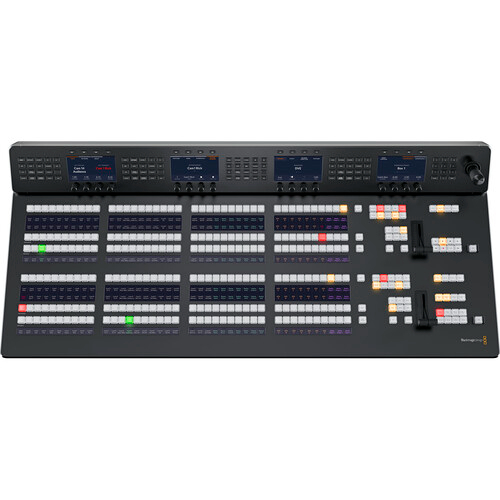

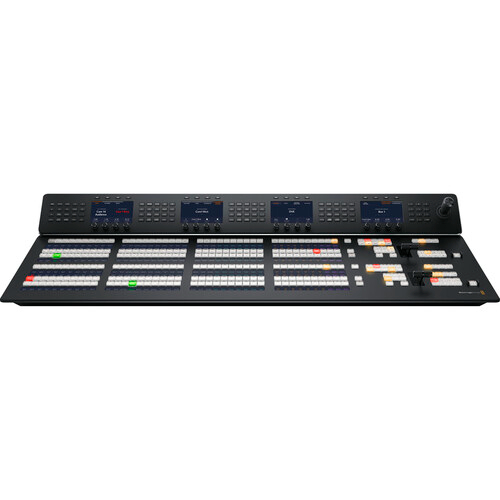

The ATEM 2 M/E Advanced Panel 40 is a sophisticated control interface designed for the separately available ATEM Constellation Switcher from Blackmagic Design. Featuring a wide array of buttons, knobs, two fader bars, and a 3-axis joystick, this panel allows you to customise your program and preview operations to suit your specific production needs.

Applications

Designed for complex live productions, the ATEM 2 M/E Advanced Panel 40 enables you to customise, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 40 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.

Compatibility

Provides pro switching controls for the ATEM Constellation HD line of switchers

Interface

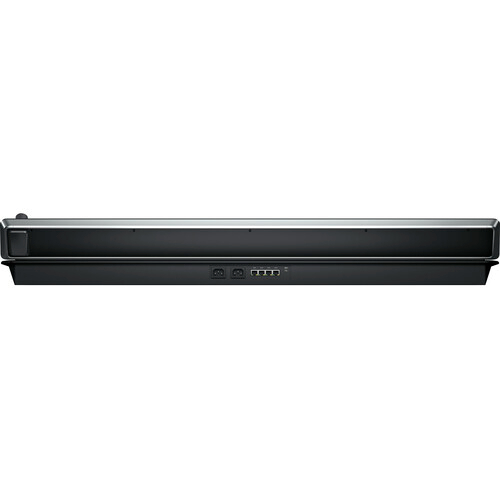

• Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
• USB Type-C for firmware updates

Cross-Points

Tricolour LED cross-point buttons; 40 direct cross points, and 80 shifted cross-points

Mix Effect Rows

Two M/E rows, 40 input buttons per row

LCD Menu Displays

Four system control LCDs for each row with custom labeling for all rows and input buttons

Controls

One 3-axis joystick, one numeric keypad, and two fader bars

On-Air Indicators

12 indicators let you easily see which feeds are on air

DSK Selectors

Four transition previews with auto, cut, and tie/preview options
