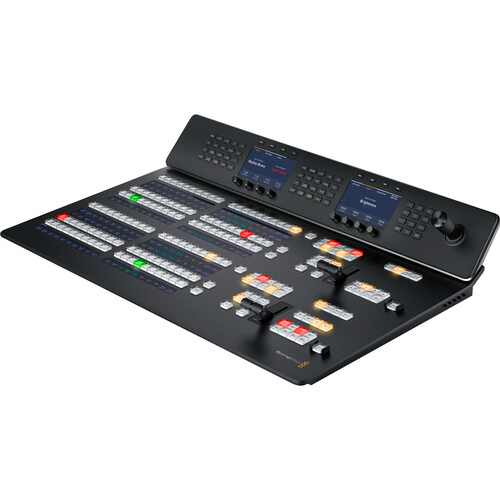

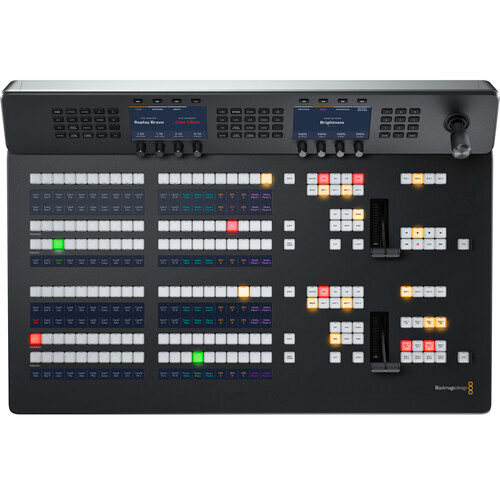

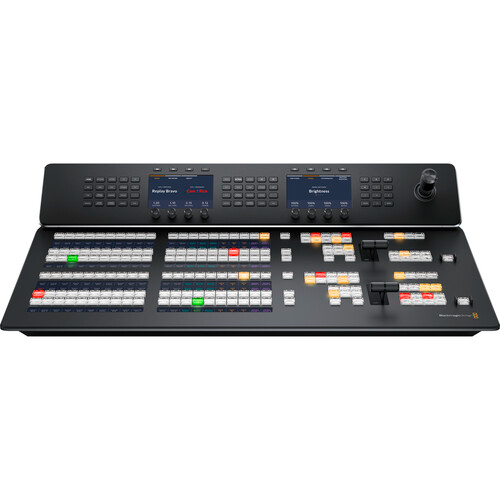

Blackmagic Design ATEM 2 M/E Advanced Panel

The ATEM 2 M/E Advanced Panel is a highly sophisticated upgrade from previous models, designed as a companion to professional ATEM switchers from Blackmagic Design, sold separately. With high-quality buttons, knobs, fader bars, and a 3-axis joystick, this panel allows you to customise its extensive features to meet your specific production needs.

Complex live productions require a versatile control panel, and the ATEM 2 M/E Advanced Panel allows you to customise, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and it also sports 8 on-air indicators. The panel features two rows of M/E with 20 input buttons per row, two system control LCDs, independent LCDs for custom labeling of every row and button, 20 direct cross points, 40 shifted cross points, two preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.

The ATEM 2 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB Type-C input.

Compatible Operating Systems

macOS 10.14 Mojave, 10.15 Catalina or later

Windows 10, 64-bit

Ethernet Connector
4 x RJ45, 10/100/1000 BaseT
Other I/O
1 x USB Type-C, Firmware
Buttons
40 x Input Buttons (20 per Row)
Mix Controller
20 x Direct Cross Points
40 x Shifted Cross Points
2 x M/E Rows
2 x BKG Next Transition Selectors, Key 1 to Key 4
8 x On-Air Indicators
2 x DSK Transition Selectors: Auto, Cut, Tie/Preview
2 x Preview Transitions
LCD Display
2 x System LCDs per Row
20 x LCDs (1 x per Button)
Controls
1 x 3-Axis Joystick
1 x Numeric Keypad
2 x Fader Bars
8 x Transport Control Buttons
Redundant Power
Yes
Input Voltage
100 to 240 VAC
Power Consumption
150 W
Dimensions
111 x 72.5 x 16.6 cm
Weight
11 kg


* Specifications subject to change by the manufacturer without notice
