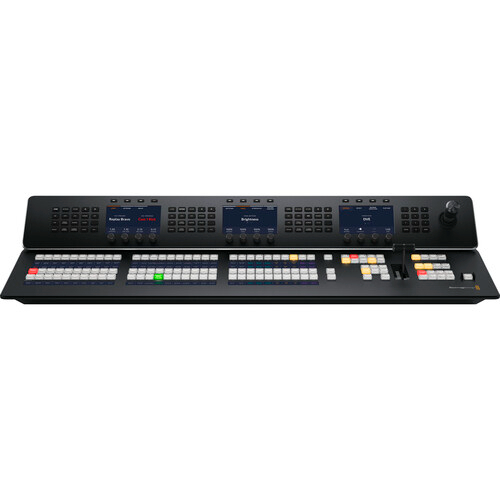

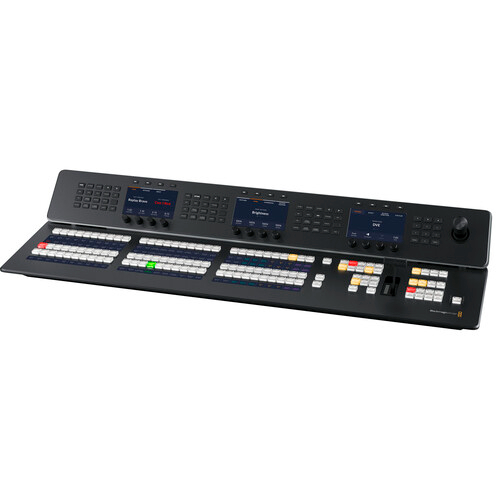

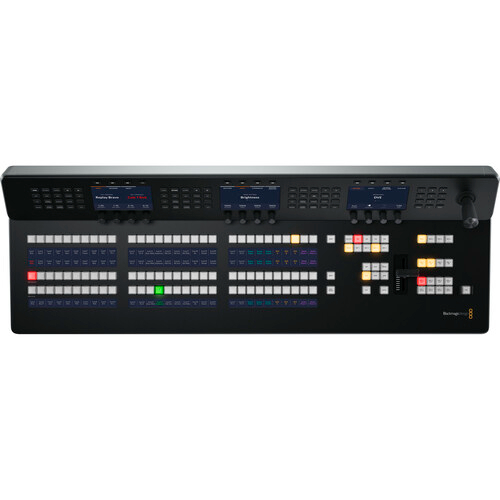

Blackmagic Design ATEM 1 M/E Advanced Panel 30

Control your BMD ATEM switcher with the ATEM 1 M/E Advanced Panel 30 from Blackmagic Design. This full-featured control panel is an essential companion for any ATEM switcher, offering tactile accessibility and three independent system control LCDs to effectively manage switching tasks during productions of any size. The panel's four-port Ethernet connectivity at the rear ensures no additional network equipment is needed, allowing for seamless integration into even the most demanding live production environments.

The unit features a wide array of Colour backlit buttons, including 30 input buttons, and it has buttons for controlling up to four upstream and four downstream keyers as well as four M/E rows. A dynamic 3-axis joystick and an ergonomically designed T-bar facilitate precise, real-time DVE control with the T-bar, providing targeted adjustment prowess for wipes, fades, and other broadcast-quality transitions. In addition to allowing you to create adjustable auto transitions, the panel has a dedicated preview transition button and a single-button Fade to Black option that is applicable to the entire output, all at once.

Mains power is provided via an optional power cord connected to the IEC input, which also offers a second input option for redundant power. A built-in USB-C port is included for firmware updates. The compact panel design allows the unit to fit in standard equipment racks, so that it may be easily integrated in fly-away kits or broadcast trucks.

Switching Features

  • 30 direct crosspoints
  • 60 shifted crosspoints
  • Tri-Colour LED crosspoint buttons
  • 3 LCD menu displays
  • 2 destination bus
  • 2 source select bus
  • Numeric keypad
Controls
30x Programmable Key with Integrated Display
Display
3x Colour LCD (Backlit)
OS Compatibility
Windows 10 to 11
macOS 11.1 to 12.0

INPUTS / OUTPUTS


USB I/O
1x USB-C Female Input (Software Updates)
Network I/O
4x 10/100 Mbps Ethernet
Power I/O
2x IEC-14 Input

POWER


Power Source
AC Input
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
120 W

PHYSICAL


Operating Conditions
32 to 104°F / 0 to 40°C up to 95% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
92.2 x 48.3 x 15 cm
Weight
15 kg


* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design ATEM 1 M/E Advanced Panel 30
