Blackmagic Design ATEM 1 M/E Advanced Panel 20
SKU code: 61104
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- Upstream & Downstream Keyers
- M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-bar
- Single-button Fade to Black
- Dedicated Preview Transition Button
- Colour Backlit Buttons
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Flashes & Lighting:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

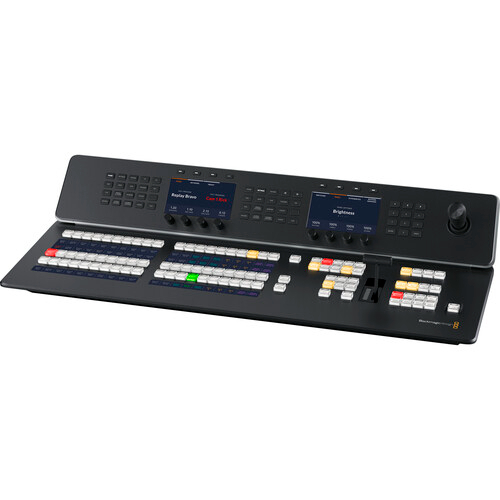

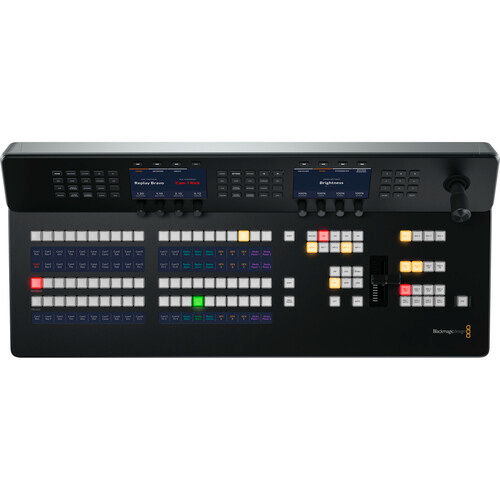

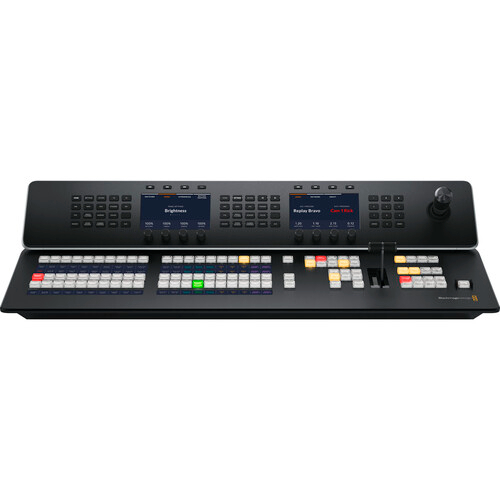

Blackmagic Design ATEM 1 M/E Advanced Panel 20
Control your BMD ATEM switcher with the ATEM 1 M/E Advanced Panel 20 from Blackmagic Design. This full-featured control panel is an essential tool for any ATEM switcher, offering tactile accessibility and two independent system control LCDs to handle switching tasks, regardless of production size or complexity. With four-port Ethernet connectivity on the rear, no additional network equipment is needed, ensuring seamless integration even in the most demanding live production environments.
The unit features a wide array of Colour backlit buttons, including 20 input buttons, and it has buttons for controlling up to four upstream and four downstream keyers as well as four M/E rows. A dynamic 3-axis joystick and an ergonomically designed T-bar facilitate precise, real-time DVE control with the T-bar, providing targeted adjustment prowess for wipes, fades, and other broadcast-quality transitions. In addition to allowing you to create adjustable auto transitions, the panel has a dedicated preview transition button and a single-button Fade to Black option that is applicable to the entire output, all at once.
Mains power is provided via an optional power cord connected to the IEC input, which also offers a second input option for redundant power. A built-in USB-C port is included for firmware updates. The compact panel design allows the unit to fit in standard equipment racks, so that it may be easily integrated in fly-away kits or broadcast trucks.
Switching Features
- 20 direct crosspoints
- 40 shifted crosspoints
- Tri-colour LED crosspoint buttons
- 2 LCD menu displays
- 1 destination bus
- 1 source select bus
- Numeric keypad
Controls
|
20x Programmable Key with Integrated Display
|
Display |
2x Colour LCD (Backlit)
|
OS Compatibility |
Windows 10 to 11
|
macOS 11.1 to 12.0 | |
INPUTS / OUTPUTS
|
|
USB I/O |
1x USB-C Female Input (Software Updates)
|
Network I/O |
4x 10/100 Mbps Ethernet
|
Power I/O |
2x IEC-14 Input
|
POWER
|
|
Power Source |
AC Input
|
Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Power Consumption |
75 W
|
PHYSICAL
|
|
Operating Conditions |
32 to 104°F / 0 to 40°C up to 95% Humidity
|
Storage Conditions |
-4 to 140°F / -20 to 60°C
|
Dimensions |
72.1 x 31.8 x 14.2 cm
|
Weight |
8.7 kg
|
* Specifications subject to change by the manufacturer without notice.
