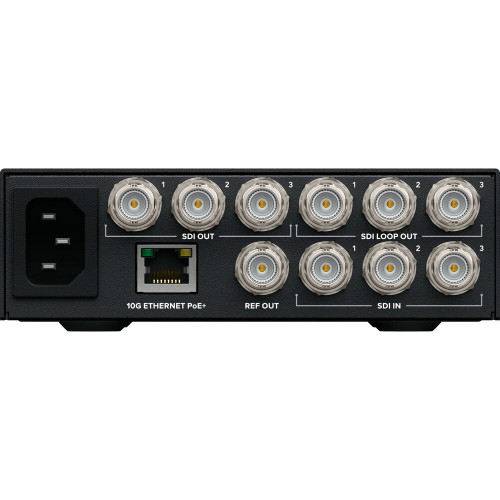

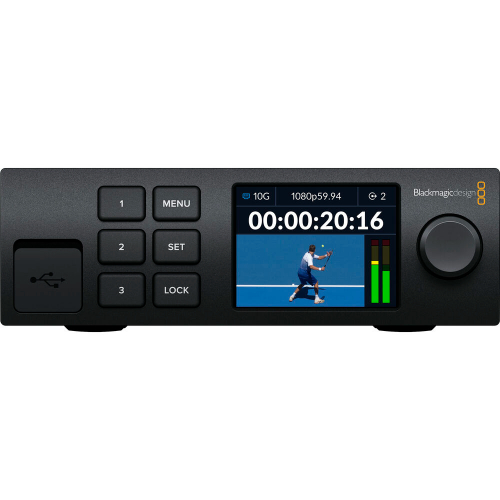

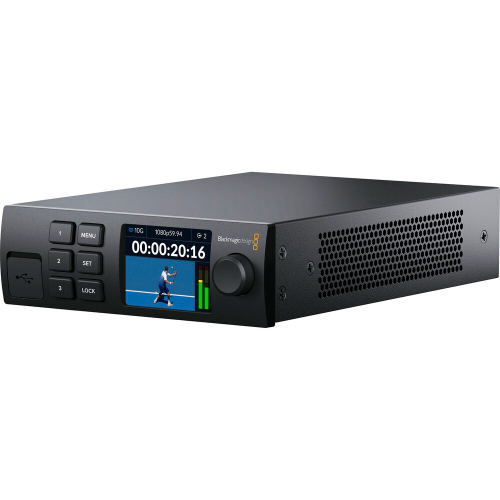

Blackmagic Design 2110 IP Converter 3X3G

Convert signals from three separate 3G-SDI devices to 2110 IP video systems with the 2110 IP Converter 3X3G from Blackmagic Design. Offering extensive connectivity, it includes a 10G Ethernet port that supports up to three video channels simultaneously, three 3G-SDI inputs and outputs, and three loop outputs. It also manages up to 16 channels of embedded audio with each video signal, while the RJ45 10G Ethernet port, compatible with 10/100/1000/10G BASE-T, supports PoE+ power. The reference output is precisely timed to the 2110 PTP clock for seamless integration.

INPUTS / OUTPUTS



Inputs/Outputs
1x RJ45
Video Inputs
3x BNC (3G-SDI)
Video Outputs
3x BNC (3G-SDI)
  3x BNC (3G-SDI) (Loop Output)
Other I/O
1x BNC Reference Output
  1x USB-C Control, Firmware

FORMAT SUPPORT


Input Video Format
RJ45 / SDI (8/10-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
  RJ45 / SDI (8/10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
Output Video Format
RJ45 / SDI (8/10-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines 50 fps
  480i / 525 lines 59.94 fps
  RJ45 / SDI (8/10-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
Embedded Audio
LAN (RJ45)/SDI: 16-Channel

STANDARDS


Video Standard Compliance
SMPTE ST-2110

HARDWARE


Display Size
2.2"
OS Compatibility
macOS 12 to 13 or Later
  Windows 10 (64-Bit Only)
  Windows 11

POWER


Power I/O
1x IEC C14 Input
PoE Support
PoE+ 802.3at

ENVIRONMENTAL


Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% ()

GENERAL


Dimensions
22.78 x 13.99 x 4.62 cm
Weight
1 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design 2110 IP Converter 3X3G
  • Welcome Wallet with QR Code for Software Download
