Key Features:
- 4-Channel Live Stream HDMI Switcher
- Program and 4 x Input ISO Recording
- HDMI Output, Ethernet ATEM Control
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- Media Player, Computer Input Support
- 2-Channel Digital Audio Mixer per Source
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers

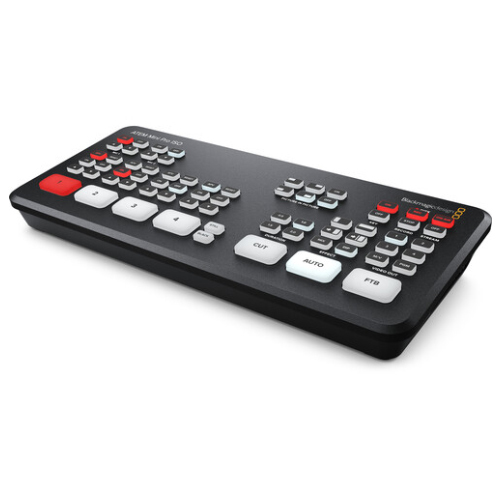

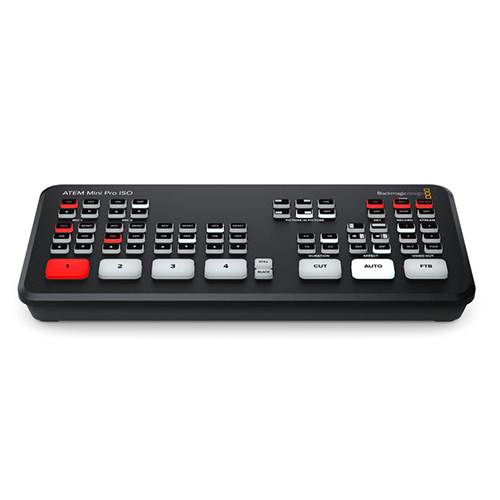

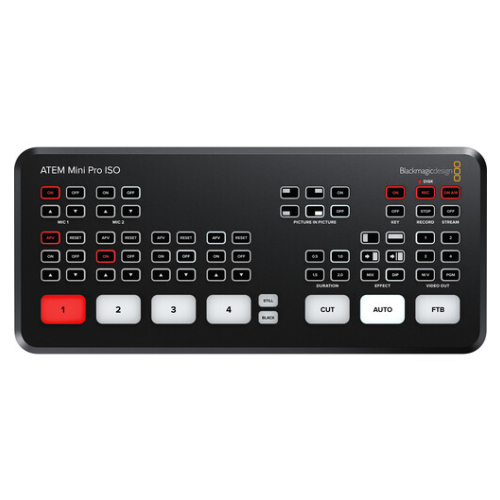

Blackmagic ATEM Mini Pro ISO Switcher
SKU code: 47138
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 4-Channel Live Stream HDMI Switcher
- Program and 4 x Input ISO Recording
- HDMI Output, Ethernet ATEM Control
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- Media Player, Computer Input Support
- 2-Channel Digital Audio Mixer per Source
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:
The Blackmagic ATEM Mini Pro ISO is a live production switcher with a new 5 stream recording engine that records all video inputs, allowing the user to edit the live productions later. Users can get a clean feed of all inputs and use multi-cam functionality in edit software for subsequent editing. ATEM Mini Pro ISO also records all audio files, media pool graphics, and a DaVinci Resolve project file, allowing you to open and edit a live production with a single click.
Multicamera Live Streaming

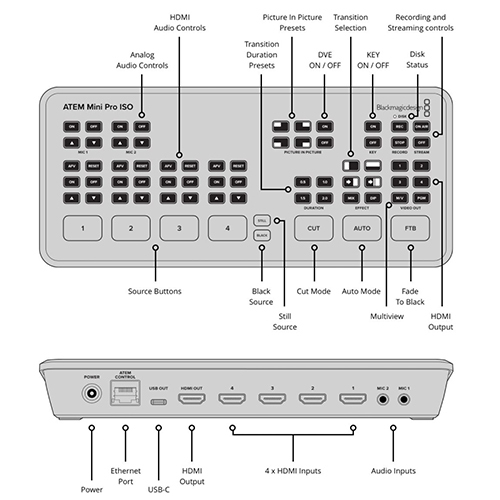

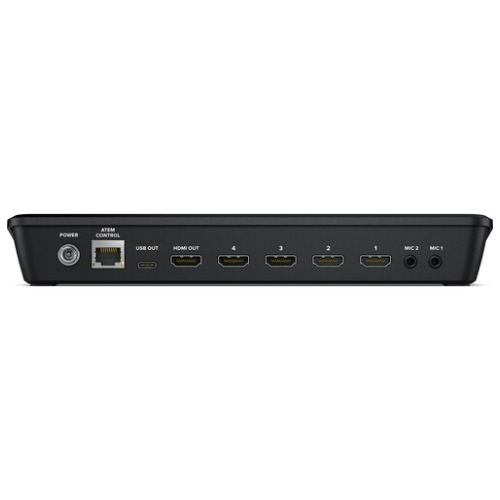

It features 4 standards converted HDMI inputs as well as an integrated control panel for multicamera live streaming up to HD footage to the internet via Ethernet output. It has a USB output that lets you record both the programme output and the separate HDMI inputs to an external USB disc (not included).
Edit Live Production
The Blackmagic ATEM Mini Pro ISO makes it extremely simple to produce professional multi-camera productions for YouTube live streaming or innovative business presentations using Zoom or Skype. Users can easily swap live between four high-definition video camera inputs for drastically improved image quality by just connecting ATEM Mini. Alternatively, you can connect a PC for PowerPoint slides or a game console. The built-in DVE provides interesting picture-in-picture effects, which are ideal for commentary.
Upstream Keyer & Upstream Keyer
With the upstream Keyer, you can layer live video over other video sources or images. To swiftly combine footage over virtual sets, you can use the luma key, linear key, pattern key, or film against a green screen and employ chroma key. The ATEM Mini switcher has one downstream Keyer, allowing you to add high-quality graphics from the built-in media player over the live stream programme output, such as logos, bugs, and titles. Downstream Keyers are the final levels of keying, thus they overlay all video that has been switched to the main programme output.
Audio Mixer
With precision level and balance changes on all six accessible audio inputs and two channels, the built-in audio mixer allows you to control both camera and external audio. The mixer provides selectable on/off and audio-follow-video per channel, as well as an individual gain control for each channel, level and peak metering, and new Fairlight audio upgrades such as a compressor, gate, limiter, six bands of parametric EQ, and master gain control.
Media Player
By keeping up to 20 broadcast-quality RGBA graphic files in the media pool, you can eliminate the need for external character generators. The Blackmagic ATEM Mini Pro ISO sees only one media player as an input source. You can either transition to graphics as full-frame video or feed them to Keyers for video overlay. PNG, TGA, BMP, GIF, JPEG, and TIFF are among the image formats supported.
Monitor Output
The HDMI monitor output displays your sources, graphics, preview, and programme output on a single screen. Connecting a USB drive to the USB port of the Blackmagic ATEM Mini Pro ISO allows you to capture the switched programme stream as well as up to four isolated (ISO) recordings of input video, embedded audio, analogue input audio, graphics, and a DaVinci Resolve project file of your switched programme.
Blackmagic Design ATEM Mini Pro Specs |
|
Available M/E Layers |
5 M/E |
Effect Types |
1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
Downstream Keys |
1 x Chroma, DVE |
Generators |
1 x Pattern |
Audio Mixing |
2-Channel Mixing |
Switching Type |
Pushbutton |
Colour Processing |
10-Bit 4:2:2 YUV |
Number of Video Input Sources |
4 |
Video Input Connectors |
4 x HDMI Female |
Input Video Format |
HDMI (10-Bit 4:2:2 YUV) |
Audio Input Connectors |
2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format |
Analog |
Embedded Audio Input |
HDMI: 2-Channel (per Input) |
Video Output Channels |
1 |
Video Output Connectors |
1 x HDMI |
Output Video Format |
HDMI / RJ45 (10-Bit 4:2:2 YUV) |
Embedded Audio Output |
HDMI: 2-Channel (per Output) |
Multiview Output |
Yes |
Monitor Output |
1 x HDMI |
Other I/O |
1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output |
IP Video |
H.264: |
Transport Protocols |
RTMP |
Simultaneous Streams |
1 Streams |
OS Compatibility |
macOS 10.14 or Later |
Power Connector |
1 x Barrel (12 VDC) Input |
Power Consumption |
36 W |
Operating Temperature |
5 to 40°C |
Storage Temperature |
-10 to 60°C |
Operating Humidity |
0 to 90% |
Dimensions |
23.75 x 10.34 x 3.51 cm |
Weight |
550 g |
* Specifications subject to change by the manufacturer without notice
