High-Resolution Viewfinder

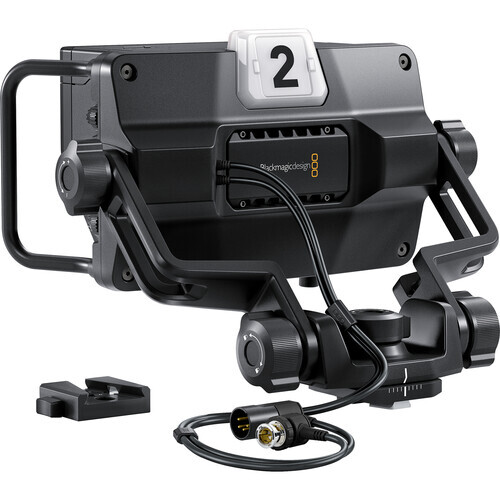

Add the Blackmagic Design 7" URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera for a high-resolution monitoring experience. The 7" viewfinder/monitor boasts a 1920 x 1200 TFT LCD screen, and comes with a detachable sun hood to prevent glare. The large side handles make it easy to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.

The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors. Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output. It also features a USB Type-C input for setup and firmware updates.

Key Features

Controls

Dial, knobs, and customizable function buttons for settings, shortcut features, and navigating menus.

Handles

Built-in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options

Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan, and tilt adjustments.

Mounting Options

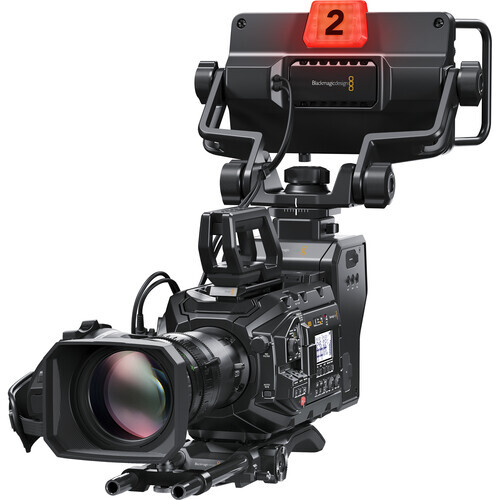

Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini top handle.

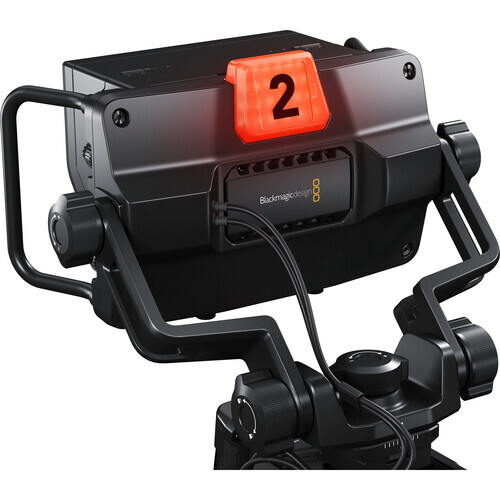

Tally

Large LED tally light with customizable Perspex camera numbers.

Metadata Support

Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.

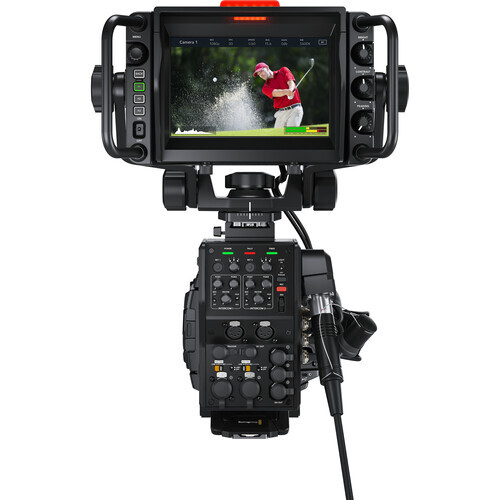

Screen Interface

On-screen meters and status information including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

DISPLAY

Colour/Monochrome Colour
Panel Type TFT LCD
Display Size 7.0" / 17.8 cm
Screen Resolution 1920 x 1200
Maximum Brightness 2000 cd/m2
Image Controls False Colour, Focus Assist, Focus Peaking, Screen Markers


I/O



Video I/O 1 x BNC (3G-SDI) Input
Video Format SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power I/O 1 x XLR 4-Pin (12 VDC) Input
Other I/O 1 x USB-C 2.0 Input

POWER

DC Input Power 12 VDC

ENVIRONMENTAL

Operating Humidity 0 to 90% (Non-Condensing)
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C

GENERAL

Mounting 1 x V-Lock
Dimensions 33.1 x 30.4 cm
Weight 2.69 kg



* Specifications subject to change by the manufacturer without notice

  • Blackmagic Design 7" URSA Studio Viewfinder G2
  • Sun Hood
