Atomos SUMO19 SE Overview

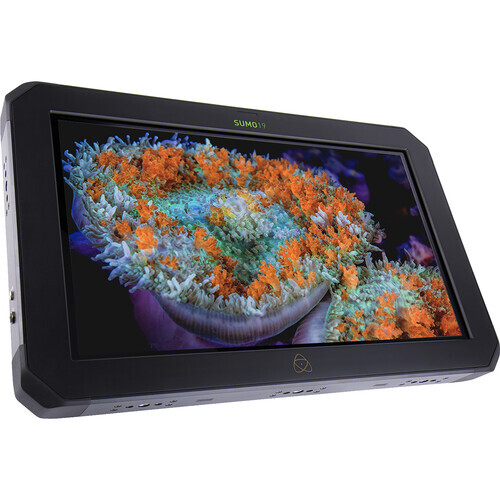

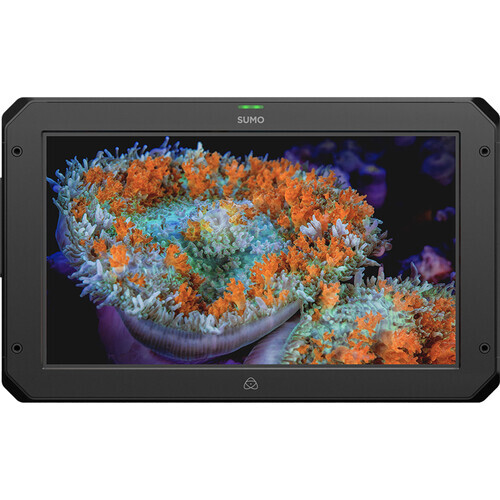

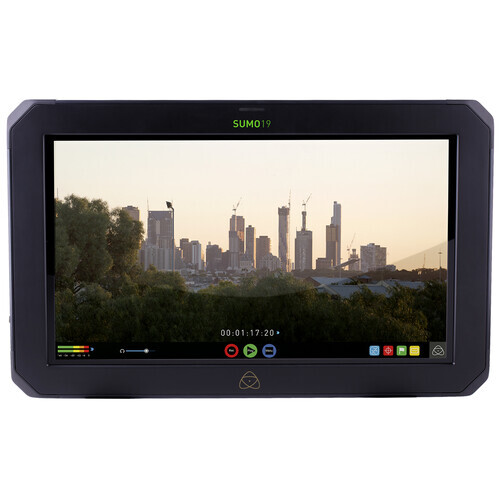

The Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher has been upgraded with a 19" 1920 x 1080 QLED touchscreen display and 1200 cd/m² brightness, while maintaining the same 4K recording, monitoring, and switching capabilities of its predecessor. It boasts four 12G-SDI inputs and one HDMI 2.0 input, which can receive video signals up to 4K60 and support live quad-channel switching. Five-channel recording captures the input feeds as well as the live switching to create one output video for easy viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and quad-SDI connections.

The Sumo 19" SE can record in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19" SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19" SE into your studio setup.

SE Upgrades and Features

  • Upgraded 19" Quantum Dot OLED display with 1200 cd/m² brightness (±10%)
  • Live, quad-channel HD switching and recording
  • Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
  • HDMI 2.0 and quad-SDI support genlock and LTC timecode
  • Works in HLG and PQ formats of HDR

Live Quad-Channel HD Switching and Recording

  • Record four streams simultaneously as separate ISOs while cueing and switching in real time
  • Record fifth channel of switched feel and display resulting in mixed output live on set (via HDMI or SDI)
  • Switching is asynchronous and can be output with Atomos Connect 4K

HDR Capabilities

  • 10-bit processing takes RAW/Log/PQ/HLG output from camera or gaming consoles
  • Maps to display 10+ stops of dynamic range in real time

Two XLR Inputs with Phantom Power

  • Full-size XLR connections with +48 phantom power
  • Connect two external microphones for balanced analog audio recording and monitoring
  • Dedicated meters, gain controls, and adjustments for frame delay on each channel
  • Mic or line level audio can be synced with embedded HDMI and SDI audio

Powering the SE

  • Dual 4-pin XLR inputs for continuous dual battery power
  • Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
  • Includes AC power supply, 12-16.8V DC input
ATOMOS SUMO19 SE

DISPLAY

Panel Type Quantum Dot OLED
Display Size 19.00" / 48.3 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen Yes
Maximum Brightness 1200 cd/m2
Bit Depth / Colour Support 8-Bit+FRC (1.07 Billion Colours)
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 120 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Colour, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

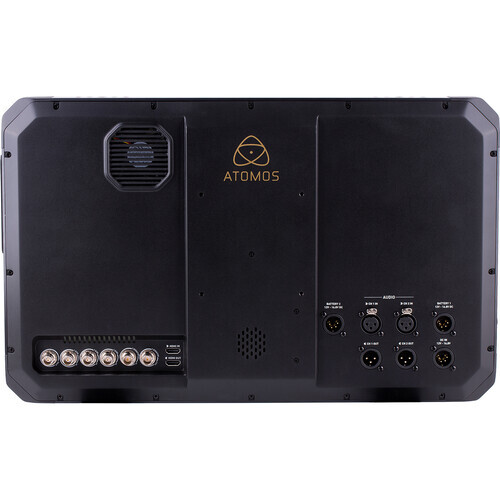

Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
4 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O 2 x XLR Input
2 x XLR Output
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 2 x 5 W
Power I/O 2 x XLR 4-Pin (14.4 VDC) Input
1 x XLR 4-Pin (16.8 VDC) Input
Other I/O 1 x BNC (Genlock) Input
1 x 2.5 mm (LANC) Input
File System Support exFAT

FORMAT SUPPORT

Video Format HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
Gamma Curve DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
Video Signal Conversion HDMI to SDI
SDI to HDMI
Timecode Support Yes

RECORDING

Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit
Phantom Power +48 V

POWER

DC Input Power 12 to 16.8 VDC
Battery Type 2 x V-Mount, Gold Mount
Power Consumption 75 W

MOUNTING

Mounting-Hole Pattern 100 x 100 mm
Mounting 10 x 1/4"-20 Female
5 x 3/8"-16 Female

ENVIRONMENTAL

Operating Temperature 72°F / 40°C

GENERAL

Material of Construction Aluminum, Polycarbonate
Dimensions 50.4 x 33 x 18 cm, Including Feet
50.4 x 31 x 6.3 cm, Excluding Feet
Weight 5.45 kg




* Specifications subject to change by the manufacturer without notice

  • Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
  • Master Caddy II
  • BattWing Mounting Bracket
  • 4 x Screw
  • 2 x Desktop Foot
  • 4 x 1/4"-20 Mounting Screw
  • AC Power Supply
