Atomos Ninja V Power Bundle
SKU code: 43921
- 5.2-Inch External Touchscreen Monitor
- 1000 cd/m² Brightness
- 10-Bit 4:2:2 ProRes & DNxHR Encoding
- AtomHDR display with 10-Stop Dynamic Range
- Records to Custom Mini SSD
- 4K HDMI Input and Stereo 3.5mm Mic/Line In
- Supports Several Log Formats
- Includes Atomos Ninja V + Prolux NP-F970 Battery + Charger
You May Also Like
The Essentials:
Bags, Cases & Straps:
Batteries & Chargers:
Cleaning & Maintenance:
Studio Lighting:
Cables & Connectivity:
Other:
The Atomos Ninja V is a slim and lightweight external monitor that can record and playback DCI 4K, UHD and HD video. Its 5.2-inch touchscreen is bright and easy-to-see, even in sunny weather. It can also be mounted directly to your camera, cage, gimbal, and more, for easier viewing. The Ninja V supports 10+ stops of High Dynamic Range and records 10-bit at high frame rates directly to its own custom-built mini-SSDs. Compatible with a wide range of log profiles from Sony, Canon, Panasonic, and more, making it easy to monitor your log footage without seeing the flat, washed out colours. For filmmakers looking to get a little more serious, this sleek monitor will make a great addition to your video kit.
5.2-Inch Touchscreen Monitor

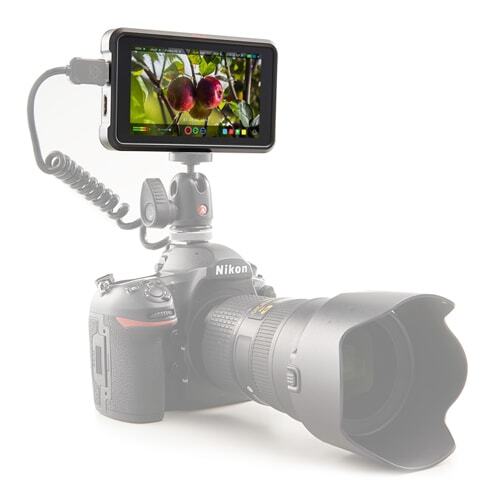

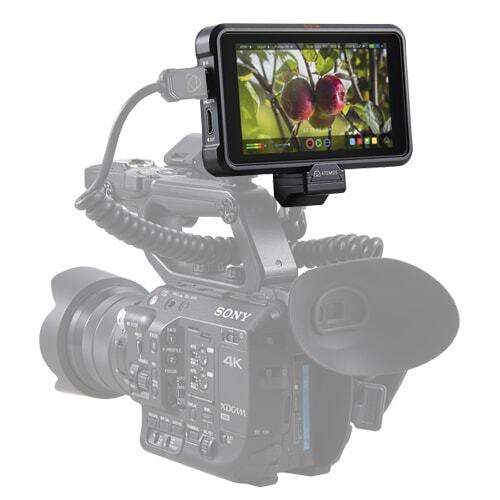

The Ninja V sports a 5.2-inch Full HD IPS touchpanel with 1000nits brightness and an anti-reflection finish for easy viewing, even in bright daylight. Made from durable and lightweight aluminium, the Ninja is only 2.5cm thick, making it the perfect companion for mirrorless and DSLR camera rigs.
10+ Stops of Dynamic Range
The monitor features AtomHDR technology for incredibly accurate colour and exposure representation when shooting HDR. It delivers 10+ stops of dynamic range to the LCD in real time from your cameras Log/ PQ/HLG signal. It can also playout Log on HDR or SDR monitors. The screen can be calibrated to maintain perfect colour accuracy over time.
60p 4K DCI/UHD Video Recording
Using HDMI 2.0, the monitor records 4K 10-bit HDR video at up to 60p directly from the camera’s sensor. This bypasses the internal compression quality and recording time limits of your camera. Recordings are ready to edit, stored in Apple ProRes or Avid DNxHR codecs to provide maximum versatility for grading and other post-production adjustments.
Ninja-Sized Mini SSD
Atomos is using the newly designed AtomX SSDmini which is considerably smaller and lighter than normal SSDs while still having the standard SATA III connector for backward compatibility. The SSDmini provides reliable storage with up to 500MB/s read-write speed for efficient recording even at high frame rates. The Ninja V also works with an included Master Caddy II.
Intuitive User Experience
Ninja V is powered by the AtomOS operating system, an intuitive interface that offers simple navigation. Controlling the camera, changing settings, and playing back footage are made easy with one-touch operation. It also provides comprehensive customisation that lets you tailor each shooting experience to the project you’re working on.
On-Screen Monitoring Tools
The Ninja V has an array of standard tools, like histogram, focus peaking and waveform monitoring as well as false colour, vectorscopes, magnification up to 2:1 and support for 3D LUTS. It also supports Anamorphic de-squeezing so you can comfortably view 2x, 1.5x, 1.33x, and Panasonic 8:3 anamorphic footage with no issues.
Comprehensive Audio Input Compatibility
While audio can be input directly from the camera via HDMI, the monitor has a stereo 3.5mm line/mic socket to feed analogue audio signal for cameras that don’t have a built-in microphone. Built-in speakers and a headphone jack are also available for convenient audio monitoring.
Modular Expansion Slot
A built-in modular expansion slot lets you dock a range of separately available expansion modules into the battery slot. This can unlock more advanced features from the Atomos Ninja V, like bi-directional high speed video, audio, and continuous power.

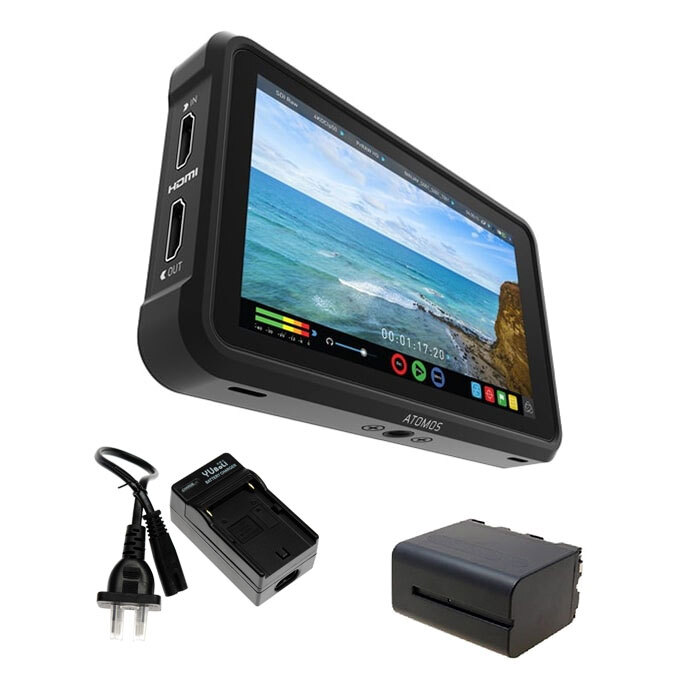

This kit includes Atomos Ninja V + Prolux NP-F970 Battery + Prolux NP Battery Charger
|
Screen |
|
|
Size |
5-Inch |
|
Resolution |
1920 x 1200 |
|
PPI |
427 |
|
Aspect ratio |
16:9 native |
|
Colour Gamut |
REC709 HDTV |
|
Look up table (LUT) support |
3D LUT (.cube format) |
|
Anamorphic de-squeeze |
2x, 1.5x, 1.33x, Panasonic 8:3 |
|
Technology |
SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
|
HDR |
|
|
AtomHDR |
Yes |
|
Supported Log formats |
Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, |
|
Panasonic Vlog, JVC JLog, Red LogFilm |
|
|
HDR Recording (Gamut) |
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, |
|
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 |
|
|
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / |
|
|
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, |
|
|
JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm |
|
|
Flog, PQ10k, HLG |
|
|
HDR Monitoring (Gamma) |
Sony SGamut / SGamut3 / SGamut3.cine / BT2020 |
|
Canon Cinema / DCI P3 / DCI P3+ / BT2020 |
|
|
Panasonic V Gamut |
|
|
Arri Alexa Wide Gamut |
|
|
Rec709 |
|
|
JVC LS300 |
|
|
Red DragonColor / DragonColor2 / RedColor2 / |
|
|
RedColor3 / RedColor4 / RedWideGamut |
|
|
HDR Monitoring (Gamut) |
Wide Colour Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Colour Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out |
|
Bit depth |
10-bit (8+2 FRC) |
|
Brightness |
1000nit (+/- 10% @ centre) |
|
HDR input (PQ/HLG) |
Yes / Yes |
|
HDR output (PQ/HLG) |
Yes / Yes |
|
Video Input/Loop Out |
|
|
HDMI |
1 x HDMI (2.0) |
|
SDI |
- |
|
Signal |
Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
|
Video Output (Play Out) |
|
|
HDMI |
1 x HDMI (2.0) |
|
SDI |
- |
|
Signal |
Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
|
Supported Loop Out Formats |
|
|
HDMI to HDMI |
720p 50/60, 1080i 50/60, |
|
1080p 24/25/30/50/60/100/120 |
|
|
2160p 24/25/30/50/60 |
|
|
AtomXpansion Video Audio Power Extender In/Out |
|
|
Video |
Up to 4Kp60 |
|
Audio |
12 channels digital 24-bit 96KHz |
|
Power |
5V-16.6V |
|
Supported Codecs & Frame Rates (Record & Playback) |
|
|
Video to |
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB |
|
ProRes / DNxHR |
4K DCI; 24/25/30/50/60p |
|
4K UHD; 24/25/30/50/60p |
|
|
(DNx utilizes a .MOV wrapper) |
2K |
|
1080p; 24/25/30/50/60/100^/120^ |
|
|
1080i; 50/60i, 720p; 50/60p |
|
|
Onboard Processing |
|
|
Pulldown removal |
24/25/30pSF > 24/25/30p (2:2 pulldown) |
|
60i > 24p (3:2 pulldown) |
|
|
4K UHD downscale for HD monitoring |
Yes - Loop-out and playback |
|
Audio In/Out (48kHz PCM Audio) |
|
|
HDMI |
2 or 8ch 24-bit, camera dependent |
|
SDI |
- |
|
Audio |
Line in / Mic in / Headphone out 2ch 48kHz 24-bit |
|
Headphone out |
3.5mm |
|
Built-in speakers |
Yes |
|
Remote Start/Stop |
|
|
HDMI |
Auto HDMI Trigger |
|
Supported Protocols - Canon, Sony, Atomos Open Standard |
|
|
SDI |
- |
|
Other |
LANC control - Slave |
|
Playback |
|
|
Playlist / Genlock / LTC |
Yes / - / - |
|
CDNG (Recorded content) |
N/A |
|
ProRes (Recorded content) |
All recorded files can playback. Playback in slow motion. |
|
DNxHR / DNxHD (recorded content) |
All recorded files can playback. Playback in slow motion. |
|
Recording |
|
|
Pre-roll record |
Yes (HD 8s, 4K 2s) |
|
Custom time-lapse |
Yes |
|
Meta data tagging |
Yes (10 tags available) |
|
Supported media |
2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
|
Master caddy case |
Master Caddy II (included) |
|
75mm x 105mm x 12mm |
|
|
Master caddy dock |
2.5” SATA to USB 2.0/3.0 |
|
Supported applications |
Supported Applications FCPX/FCP7+ / Media Composer |
|
5.0+ / Premiere 5.5+ |
|
|
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / |
|
|
Autodesk Smoke 2015 |
|
|
XML support |
FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools |
|
Accessories included |
Ninja V unit, Master Caddy II x 1, |
|
12V-3A AC power supply |
|
|
Power |
|
|
Operating power |
10 - 19W |
|
Compatible batteries |
NP-F series and supporting accessories |
|
Input voltage (battery) |
6.2V to 16.8V |
|
Battery time |
5200mAh - up to 2hrs (monitor & record 4K +60p) |
|
7800mAh - up to 3hrs (monitor & record 4K 60p) |
|
|
Physical |
|
|
Weight without batteries & media |
320 g |
|
Dimensions |
151 x 91.5 x 31 mm |
|
Construction |
Aluminium alloy chassis with ABS polycarbonate back plate |
|
Mounting points |
1/4-20 UNCscrew mount; 1x top, 1x bottom |
* Specifications subject to change by the manufacturer without notice
- Atomos Ninja V 5.2-inch 4K HDMI Recorder and Monitor
- Master Caddy II
- AC Power Supply (12V-3A)
- Prolux NP-F970 Battery
- Prolux Charger
