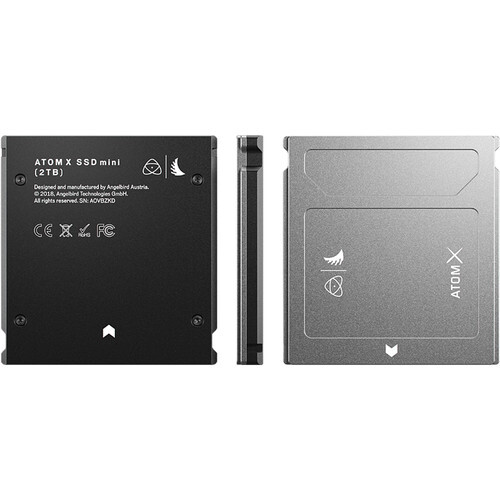

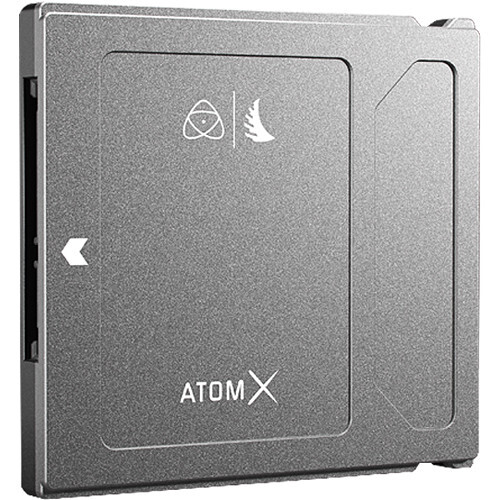

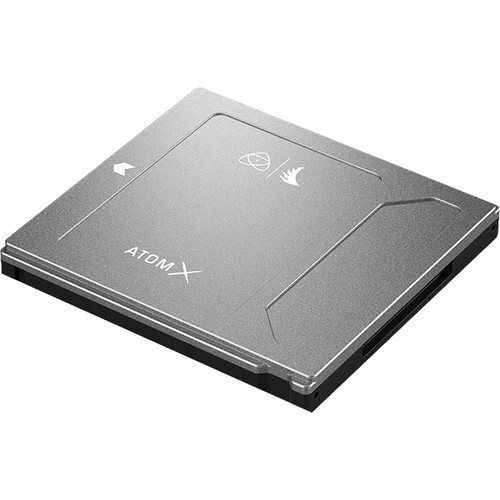

High-Performance SSDmini

This 2TB Angelbird AtomX SSDmini is specially designed to fit into a range of Atomos products, while still providing the high data throughput rates required for a 4K workflow. It's a perfect fit for the Atomos Ninja V, Ninja Flame, Ninja Inferno, and Shogun Inferno. An optional adapter handle allows you to use this SSD with the Shogun Studio, Sumo 19, and Sumo 19M.

Although 20% smaller than an average SSD, the SSDmini makes no concession to size, and it features formidable up to 560 MB/s sequential read speed with 540 MB/s sustained read speed, and up to 520 MB/s sequential write speed with 500 MB/s sustained write speed. Incorporating Stable Stream technology, you don't drop any frames. The SATA III connector enables connecting to a standard SATA III port when it is time to transfer your footage.

Supported Capture

  • CDNG up to 4k30p
  • ProRes RAW HQ 5.7K up to 30p
  • 4k60p and 2k240p

Supported Codecs

  • Apple ProRes: 4k60p and 2k240p
  • Avid DNx: 4k60p and 2k240p
  • Apple ProRes RAW: 5.7k30p, 4k60p and 2k240p
  • CDNG: 4k30p

Performance

  • Up to 560 MB/s sequential read speed with 540 MB/s sustained read speed
  • Up to 520 MB/s sequential write speed with 500 MB/s sustained write speed

Features

  • Shock, temperature, X-ray, and magnetic proof
  • Supports the entire Atomos range of Ninja and Shogun devices, and with the use of an adapter handle, even the Sumo19, Sumo19M, and Shogun Studio
ANGELBIRD ATOMX SSDMINI

Storage Capacity 2 TB

PERFORMANCE

Inputs/Outputs 1 x SATA (SATA III)
Interface SATA III (6 Gb/s)
Maximum Read Speed 560 MB/s
540 MB/s
Maximum Write Speed 520 MB/s
500 MB/s
Endurance (Total Bytes Written) 6000 TB
Mean Time Between Failures (MTBF) 2,400,000 Hours

POWER

DC Input Power VDC
Power Consumption 0.35 W (Idle)
3.5 W (Maximum)
ENVIRONMENTAL

Certifications CE, FCC, REACH, RoHS
Operating Temperature -4 to 158°F / -20 to 70°C
Storage Temperature -40 to 185°F / -40 to 85°C
Operating Humidity 5 to 95%
Operating Shock 1000 G / 0.5 ms
Operating Vibration 2.17 G

PHYSICAL

Dimensions 8 x 7.55 x 0.93 cm
Weight 0.09 kg

* Specifications subject to change by the manufacturer without notice

  • Angelbird 2TB AtomX SSDmini
