3 Legged Thing Pro 2.0 Winston & AirHed Pro - Bronze
3LT-WINSTONKIT2DARK
SKU code: 49689
- Load Capacity: 39.91 kg
- Max Height: 5.18cm, Min Height: 23.11cm
- Folded Length: 60.96cm
- Leg Sections: 3, Weight: 2.04 kg
- Carbon Fiber Legs, Bubble Level
- Twist Locks, Rubber Feet
- 3-Position Leg Angle Locks
- Reversible, Rapid Column
- Monopod-Convertible Legs and Column
- AirHed Pro Ball Head, Arca-Type
For store pickup please contact us
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Studio Lighting:
Other:

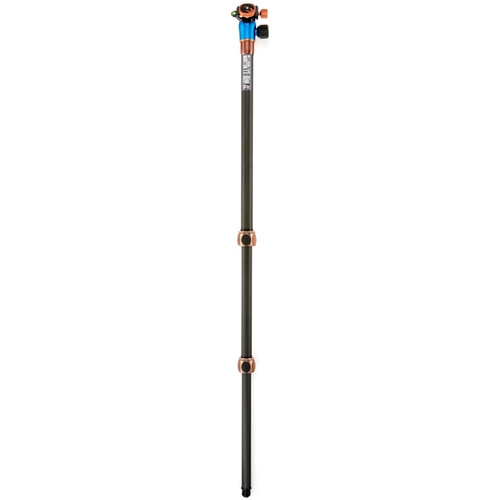

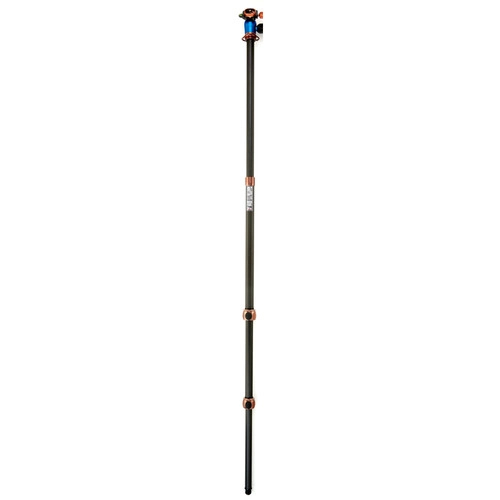

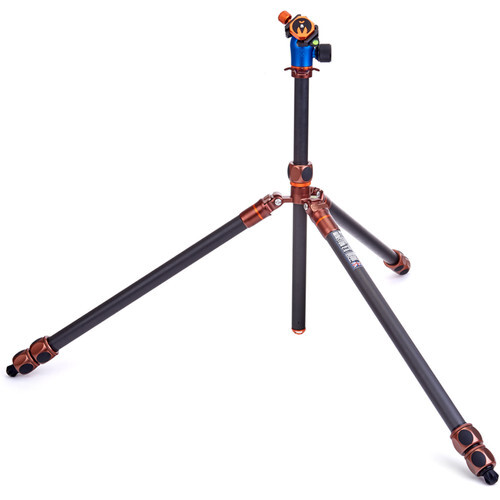

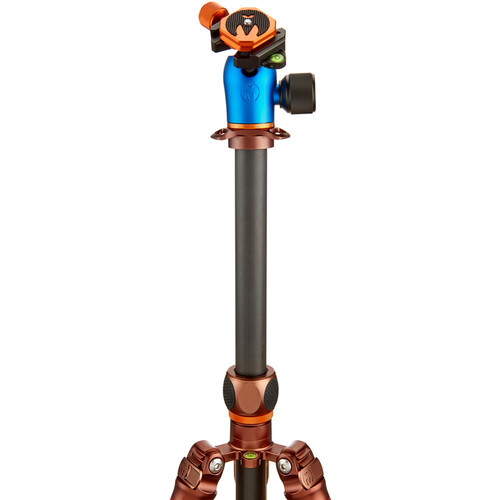

The bronze Winston 2.0 Tripod and blue AirHed Pro Ball Head are included in this bronze and blue 3 Legged Thing Tripod Kit. The tripod and ball head work together to form a support system with three detachable legs and a removable centre column. With the ball head, each leg can be configured as a monopod with a maximum height of 153.16cm or combined with the centre column to form a monopod with a maximum height of 200.66cm.
Tripod heads such as the AirHed Pro Ball Head that are compatible with a 3/8"-16 mount can be connected to the top of the Winston 2.0 Tripod. When combined and configured as a tripod, the Winston 2.0 Tripod and AirHed Pro Ball Head supports up to 39.91 kg and measures 60.96cm when folded. Each of the tripod's 3-section legs features an independent spread, a 3-position angle lock, and twist locks for rapid deployment. The Winston 2.0 Tripod and AirHed Pro Ball Head can be set at a minimum height of 23.11cm when the tripod's push-and-pull, rapid center column is removed. Together, the three legs can be extended to obtain a maximum height of 149.86cm or 194.05cm with the center column fully raised along with the ball head. Each of the carbon fiber legs includes a removable rubber foot, which can be substituted with separately available spiked feet to further enhance stability on a wide variety of surfaces, including soft or uneven soil.
For added versatility, the Winston 2.0 Tripod's three removable legs can be substituted with separately available 3 Legged Thing footwear accessories for use as a tabletop tripod. A carry bag with strap is provided for storage and transport.

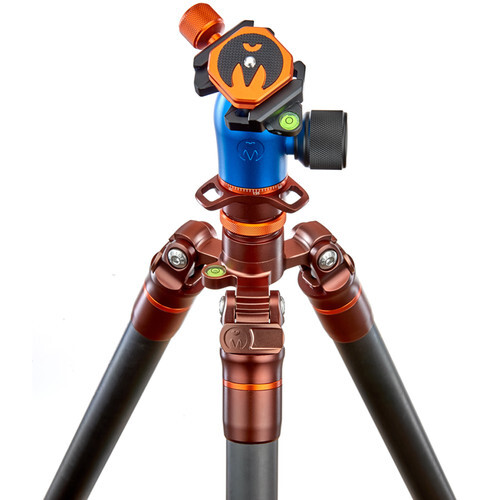

The AirHed Pro Ball Head is an Arca-type ball head with a load capacity of 39.91 kg and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QR-OCTA Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off the ball head when the clamp is opened. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp opposite the clamp's locking knob accommodates landscape orientations.
By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Under the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.
Tripod and Ball Head
- Arca-type ball head and carbon-fiber tripod with 3/8"-16 mount
- Tripod features three detachable legs and removable center column
- With ball head, each leg can be configured as a monopod with up to a 492.90cm height or can be combined with the center column to form a monopod with up to 200.66cm height
- Tripod configuration with ball head, supports up to 39.91 kg
- Push-and-pull center column with for rapid camera, lens, or sport optic positioning
- Center column D-ring to accommodate ballast for additional stability

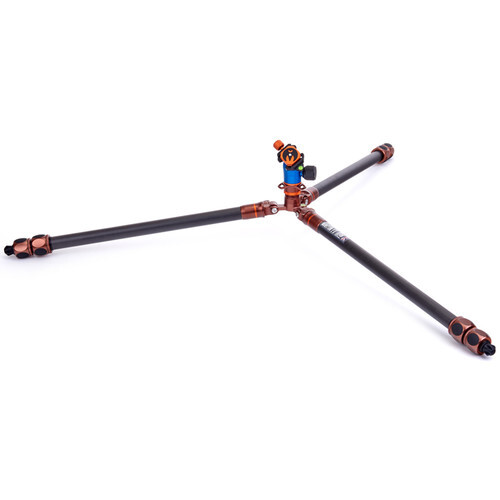

- Can be set for a minimum height of 66.04cm or 23.11cm without the center column

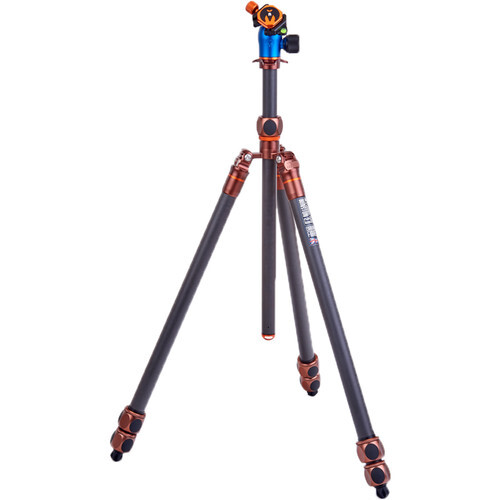

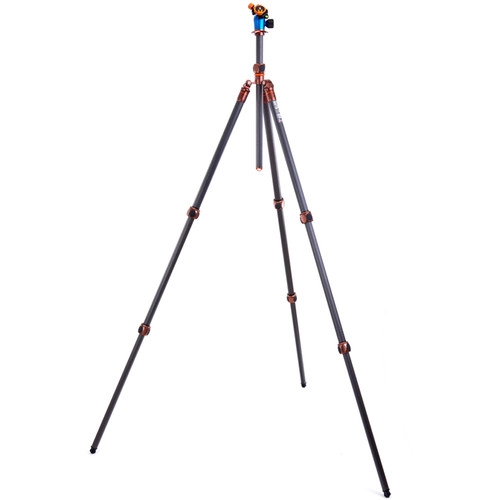

- With ball head, all three legs can be extended in the tripod configuration to obtain a maximum height of 149.86cm or 194.05cm with the center column fully raised

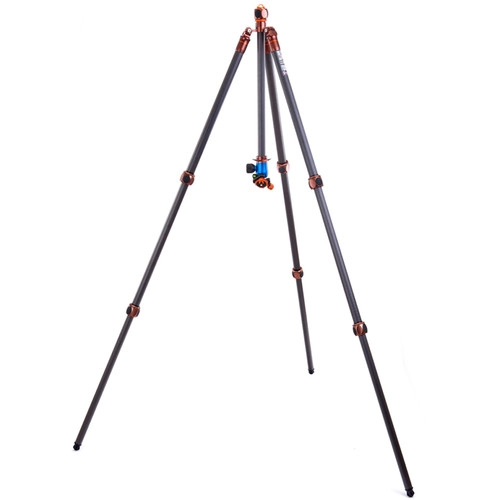

- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them

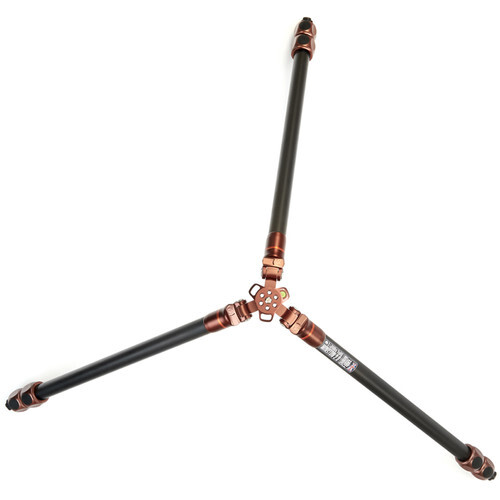

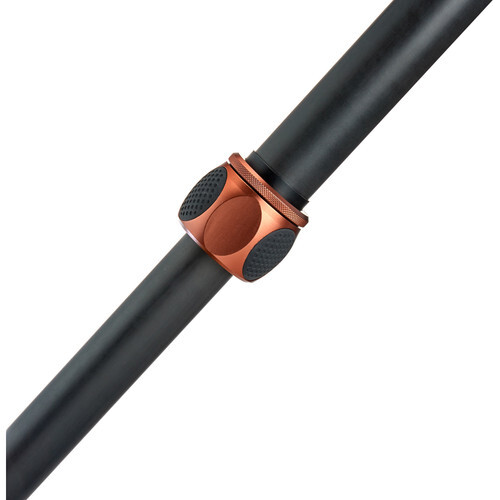

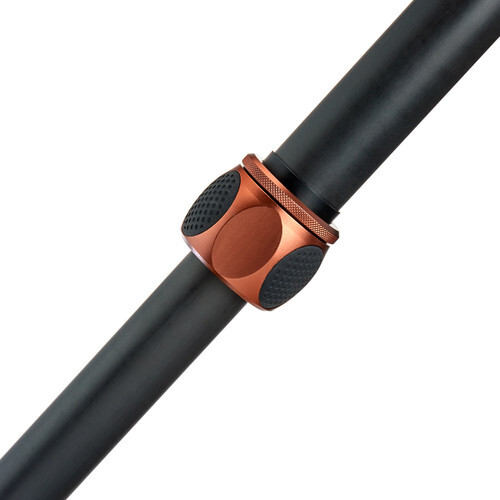

- Legs each feature 3 sections with twist locks for rapid deployment and can be independently spread

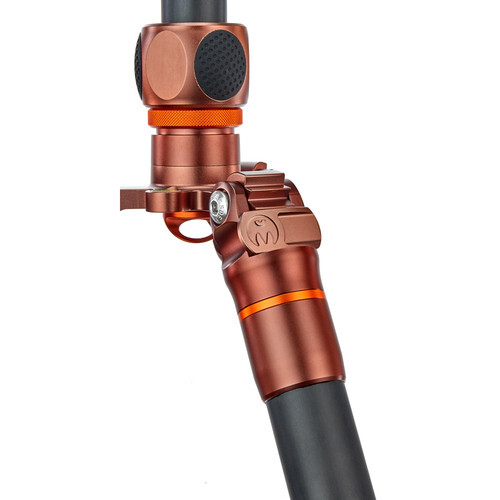

- Legs can be locked at 23, 55, or 80° angles
- Rubber feet help to enhance stability on a wide variety of surfaces

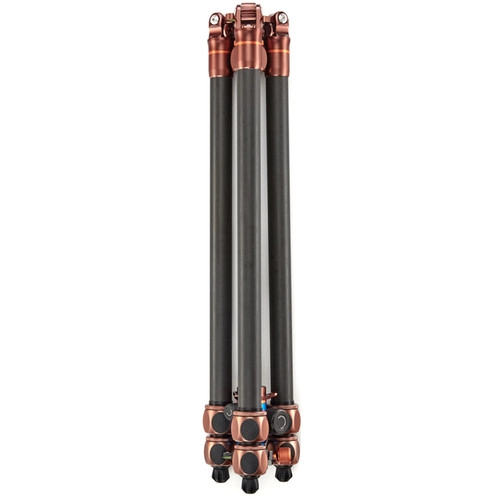

- Weighs 2.04 kg and measures 60.96cm when all three legs are reversed 180° and folded
- Rubber feet can be removed and substituted with separately available 3 Legged Thing spiked feet to further enhance stability on a wide variety of surfaces, including soft or uneven soil

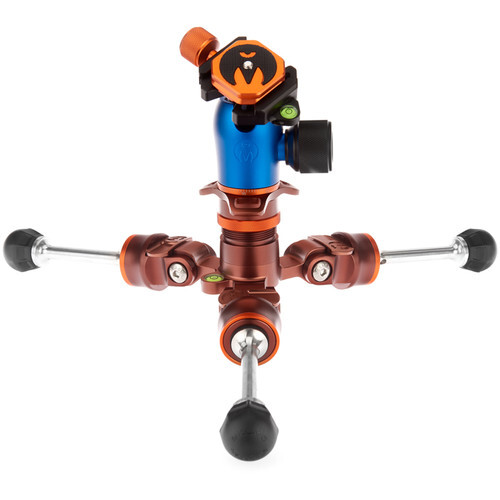

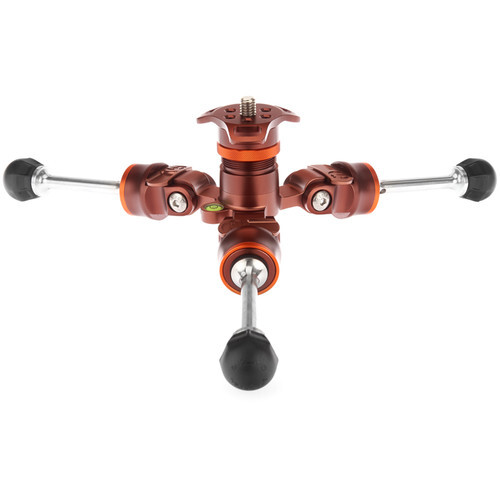

- Removable legs can be substituted with separately available 3 Legged Thing footwear accessories for use as a table-top tripod
- 3 Legged Thing Toolz multi-tool to adjust miscellaneous component screws
- Ball head microfiber bag
- Tripod kit carry bag with strap for storage and transport
AirHed Pro Ball Head
- Arca-type ball head with 39.91 kg load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob with knurled surface allows head to rotate 360°
- Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
- Knurled locking knob for integrated clamp secures compatible Arca-type quick release plates
- Built-in bubble level along the edge of the clamp opposite the clamp's locking knob accommodates landscape orientations
- Durable magnesium alloy construction
QR-OCTA Quick Release Plate
- Compatible with Arca-type quick release clamps
- 1/4"-20 mount
- Dual retaining screws along the underside of the plate prevent the plate from accidentally sliding off the AirHed Pro Ball Head
- Durable, aluminum alloy construction
HEAD | |
Head Type | Ball Head |
Base Mount | 3/8"-16 Female |
Camera Mounting Screw | 1/4"-20 Male |
Quick Release Plate Type | Arca-Type |
Number of Bubble Levels | 1 |
Independent Pan Lock | Yes |
Ball Sphere Diameter | 1.18" / 30 mm |
PAN & TILT RANGE | |
Vertical Tilt | 90° |
Panning Range | 180° |
GENERAL | |
Load Capacity | 39.92 kg |
Maximum Working Height | 194.1 cm |
Max Height without Center Column | 149.86 cm |
Minimum Working Height | 23.1 cm |
Closed Length | 61.0 cm |
Materials | Carbon Fiber |
Weight | 2.04 kg |
LEGS | |
Leg Lock Type | Twist Lock |
Leg Positions | 3 Positions |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Leg Diameter | 1.14" / 28.96 mm |
1.02" / 25.91 mm | |
0.90" / 22.86 mm | |
Bubble Level | Yes |
DETACHABLE MONOPOD | |
Maximum Working Height | 79.0" / 200.66 cm |
Leg Sections | 3 |
Monopod Foot Features | Removable, Rubber |
CENTER COLUMN |
|
Center Column Features | Removable, Reversible, 3/8"-16 Female Accessory Mount |
Center Column Shape | Round |
Center Column Sections | 1 |
Center Column Extension Type | Rapid |
Center Column Diameter | 1.02" / 25.9 mm |
* Specifications subject to change by the manufacturer without notice

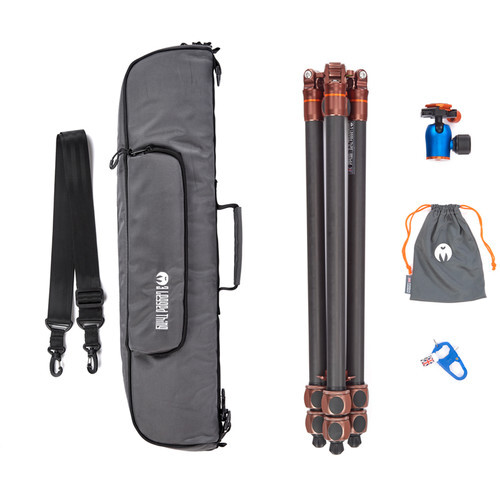

- 3 Legged Thing Winston 2.0 Tripod Kit with AirHed Pro Ball Head (Bronze and Blue)
- 3 Legged Thing Winston 2.0 Tripod (Bronze)
- 3 Legged Thing AirHed Pro Lever Ball Head (Blue)
- Microfiber Bag
