Capture Sounds with the Zoom iQ6 Stereo X/Y Microphone

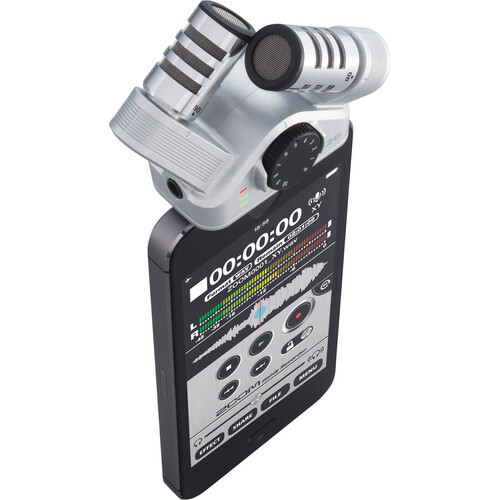

Capture the sounds of concerts, interviews, meetings, lectures and more with the Zoom iQ6 Stereo X/Y Microphone. This microphone turns your iOS device with a Lightning connector into a field recorder, recording at up to 16-bit/48kHz resolution. It features the same two, high-quality, unidirectional condenser mics found in the popular H4n recorder, allowing you to capture sound sources in the centre with clarity and definition, while still covering a wide area.

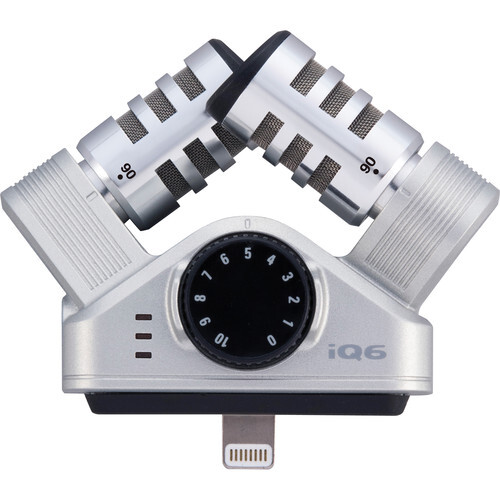

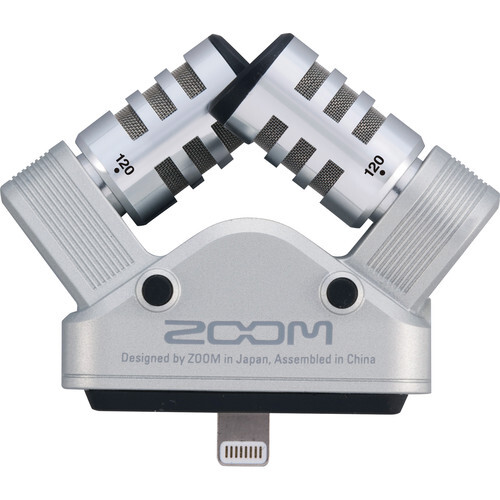

The X/Y microphones can be set at two different angles, 90 degrees for a tightly focused image, or 120 degrees for a more immersive wide-angle stereo. The input gain can be adjusted using the large, mic gain wheel on the front of the unit, while you monitor your levels using the 3-segment LED. The iQ6 also features a dedicated 3.5mm headphone jack, enabling direct monitoring during both recording and playback. The headphone output can also be used as a line out for making a backup recording if desired.

The iQ6 comes with a removable spacer that allows it to be used with most iPhone, iPad, and iPod cases. The mic is compatible with Zoom's free Handy Recorder app, which gives you the option to record as PCM or AAC files, and offers effects such as compression, EQ, and reverb. Additionally, it will work with Apple's Voice Memo app and GarageBand, as well as most apps that support input from an external microphone.

Zoom Handy Recorder App

Zoom's Handy Recorder app, available for free from the iTunes App Store, provides an assortment of tools for your iQ6 and iOS device. In addition to offering onscreen level metering, it enables you to set the iQ6 headphone volume, as well as adding an automatic recording function handy for capturing the sound of meetings, speeches, and other situations. Choose linear PCM format for the highest quality sound or AAC format to conserve storage space, then apply compression, EQ and reverb effects to your recordings. Handy Recorder even allows you to email your files to friends and upload them to SoundCloud for sharing with the world.

ZOOM IQ6

MICROPHONE

Primary Applications Recording to Mobile Device
Form Factor Mobile Device Mic
Intended Sound Sources Speech/Voice Over
Sound Field Stereo
Stereo/Surround Configuration X/Y (Adjustable Stereo Width)
Capsule Condenser
Polar Pattern Unidirectional
Circuitry Solid-State
Gain Adjustment +11 to +51 dB
On-Board Controls Gain/Sensitivity

PERFORMANCE

Maximum SPL 130 dB SPL

CONNECTIVITY

USB & Digital Output 1 x Lightning
Headphone Output 1 x 1/8" / 3.5 mm

DIGITAL AUDIO

A/D Conversion 16-Bit
Sample Rate 44.1 / 48 kHz
OS Compatibility iOS

POWER

Bus Power Lightning

PHYSICAL

Colour Silver
Mounting Direct Connection to Mobile Device (via Integrated Hardware)
Dimensions H: 6.11 x W: 3.06 x L: 5.31 cm
Weight 0.03 kg

* Specifications subject to change by the manufacturer without notice

  • Zoom iQ6 XY Stereo Professional Microphone
  • Spacer
  • Handy Recorder App (Download)
