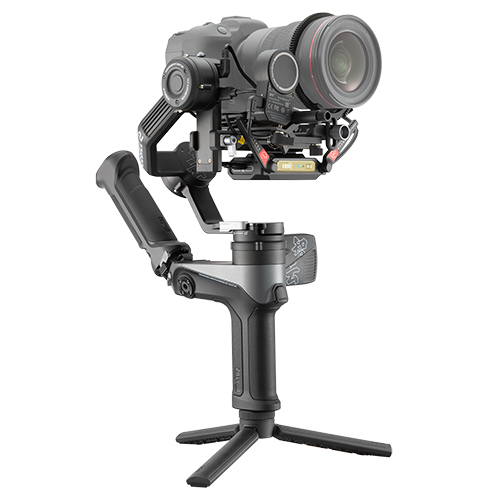

The powerful Zhiyun-Tech WEEBILL 2 Pro Kit Handheld Gimbal Stabiliser features an industry-first Flip-Out Touchscreen Command Centre and is compatible with popular DSLR and mirrorless camera and lens combinations such as the BMPCC6K, Canon 5DS, Canon 5D IV with EF 24-70mm F2.8 lens or the Sony A7III with FE 24-70mm F2.8 lens. Whether you're a seasoned filmmaker, professional cinematographer, aspiring vlogger, or amateur content creator, the Zhiyun-Tech WEEBILL 2 will provide smooth and seamless footage.

Powerful Infineon chip with dynamic stabilisation

The WEEBILL 2 incorporates a brand-new Infineon chip and an upgraded algorithm in a lightweight frame for maximum responsiveness and stability. Its one-of-a-kind HD flip-out touch screen provides the user with maximum control and creative freedom. The MasterEye Visual Controller is a game-changer that combines an image receiver, monitor, and motion controller into a single device.

The Infineon sensor with unrivalled stabilising capabilities.

The WEEBILL 2 Pro Kit's utilisation of the Infineon two-filter vector-splitting integrated sensor provides unrivalled performance. Because of its improved motor torque and core algorithm for enhanced stability, the Zhiyun-Tech WEEBILL 2 can perform analysis for complex interruptions to precisely detect and adapt for a wide range of handheld instability, even under harsh situations.

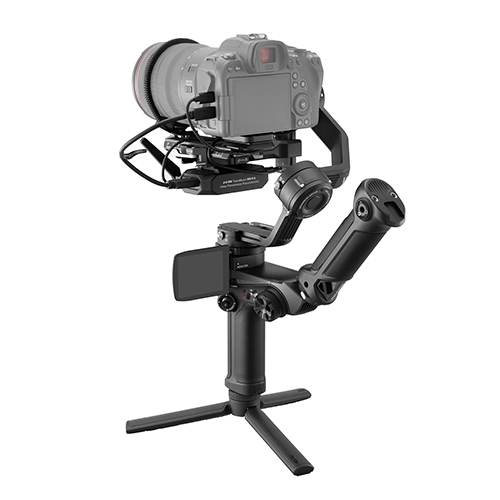

Industry-first flip out HD screen

The WEEBILL 2 is the first gimbal to have a feature-rich 2.88-inch full-colour, flip-out HD touchscreen that gives the user full control. Its user-friendly, retractable, and rotating interface enables better user interaction, parameter tweaking, and video monitoring with just a few clicks for continuous filming. Furthermore, without having to launch the ZY PLAY app, the filmmaker may utilise the WEEBILL 2 touchscreen to access advanced features like one-touch SMART FOLLOW, GESTURE CONTROL, and TIMELAPSE.

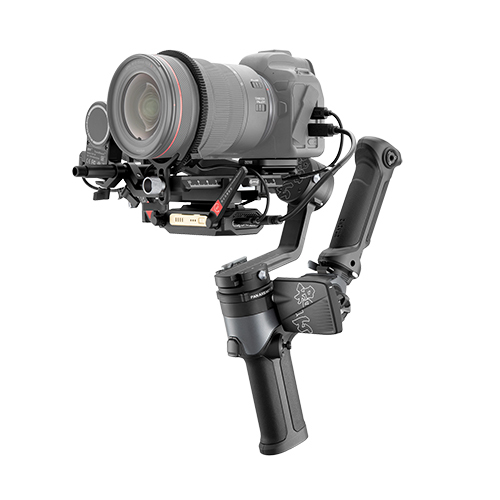

Enhanced ergonomic industrial design with sling grip

The WEEBILL 2 Pro Kit features an ergonomic, compact, industrial-style design with an easy-to-carry sling grip that allows the content creator to effortlessly convert to this underslung mode without the need for extensions or adjusting the gimbal's shape. Besides, the outstanding grip function allows for low angle filming and is designed for extended hours of operation.



Min.

Standard

Max.

Remark

Operation Voltage

9.8V

11.1V

12.6V



Operation Current

160mA

-

6000mA



Charging Voltage

-

15V

-

PD Fast Charge: 15V 24W

Charging Current

-

1.6A

-



Output Voltage

-

5V

-



Output Current

-

1.5A

-

Camera Control Port

Following Deviation in Static State

±0.01°

-

±0.04°



Following Deviation in Motion State

±0.05°

±0.1°

±0.3°



Tilt Mechanical Range

- 150°

-

+190°



Roll Mechanical

Range

-260°

-

+80°



Pan Mechanical

Range

-

360°

-



Controllable Tilt Angle

-80°

-

+160°



Controllable Roll

Angle

-35°

-

+35°



Controllable Pan

Angle

-180°

-

+180°



Operation

Temperature

-10?

25?

45?



Battery Capacity

-

2600mA

h

-

Three 18650 Li-Ion

Batteries

Battery Power

-

28.86W

h

-



Battery Runtime

-

9h

-

Lab Data 1

Charging Time

-

1.6h

-

Lab Data 2

Charging Ambient

Temperature

5?



40?

Recommended

Temperature

Touch Screen Size

-

2.88"

-



Bluetooth

Bluetooth 5.0

EIRP

EIRP

Operation Frequency

2.4 GHz

Camera Charging

Able to charge for 5V/1.5A cameras

1/4” Rosette Mount

Screw Thread Carry

Weight

Carry weight=1000g,Arm

=100mm

Meet both of the

standards

Compatible Models

See camera compatibility list

Lab Data 1: The above data is collected at a specified temperature of 25?.

The WEEBILL-2 is fully charged with 18650-2600mAh battery and mounted

with Nikon D850+Sigma 24-70mm f/2.8L DG. The WEEBILL-2 is properly

balanced and put on a flat surface. The handle screen is on and solid. The

maximum runtime is 9h.

Lab Data2: This test is conducted with a 24W PD Fast Charge at a specified

temperature of 25?. The charging time is 1.6h. The actual charging time

varies with environmental factors. In addition, the lower the temperature,

the longer the charging time.

All the data in this guide is collected from internal experiments of ZHIYUN

laboratories. Under different scenarios, the above data is subject to a

margin of error. Please refer to actual use of this product.


* Specifications subject to change by the manufacturer without notice

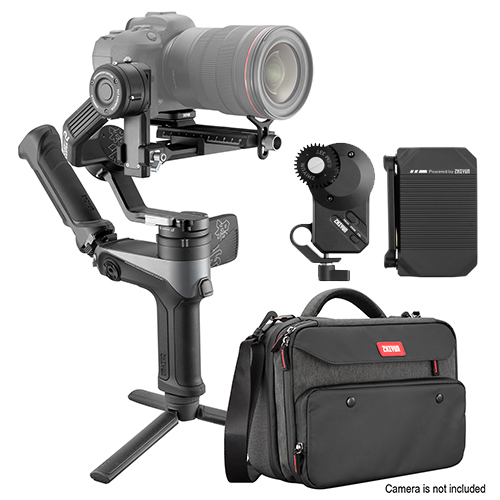

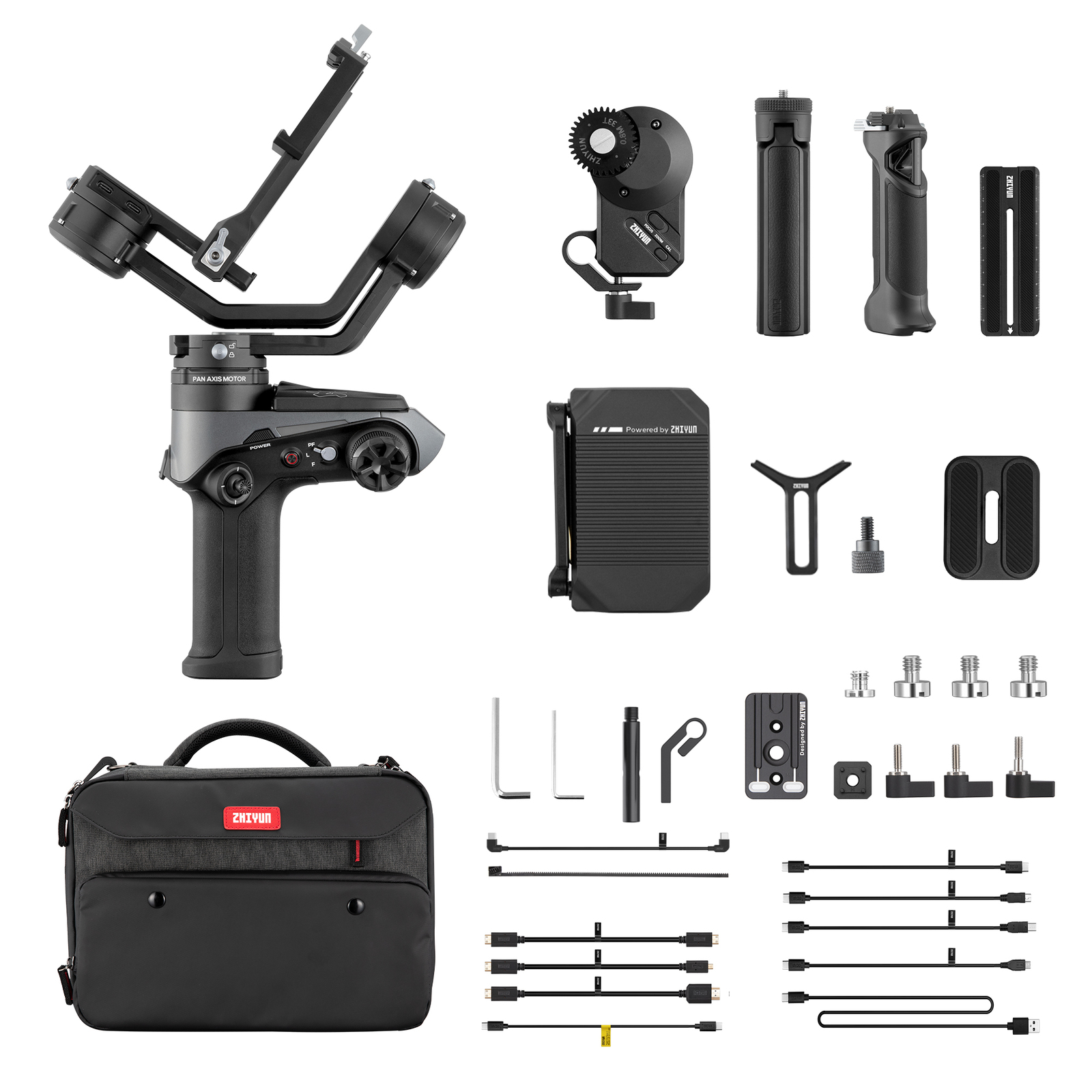

  • 1x WEEBILL 2 stabiliser
  • 1x Quick Release Plate
  • 1x Tripod
  • 1x Backing Base
  • 1x Lens Support
  • 1x USB Type-C Cable
  • 1x Canon Camera Control Cable LN-MBUC-A02
  • 1x Canon Camera Control Cable LN-NBUC-A01
  • 1x Panasonic Camera Control
  • 1x Sony Camera Control Cable LNUCUS-A03
  • 1x Quick Start Guide
  • 3x 1/4-20 Screw
  • 1x EPP Storage Box
  • 1x Sling Grip Handle(EX1A06)
  • 1x TransMount Image Transmission Transmitter AI (COV-03)
  • 1x TransMount Focus/Zoom Control Motor 2.0(CMF-06)

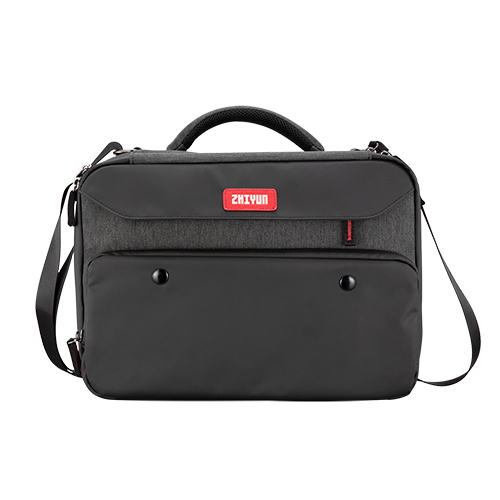

  • 1x TransMount WEEBILL Carrying Case (PRPT07)
