SOONWELL PH70 Universal Power Handle Grip
SKU code: 47796
- Rechargeable Power Handle Grip
- Compatible with most camera cages

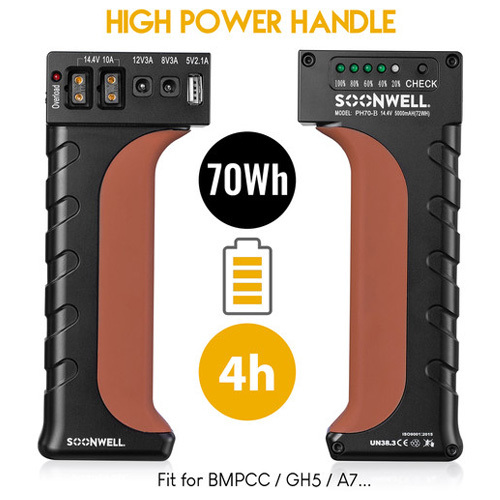

- Inbuilt 70wh rechargeable lithium battery
- Dual 14.8v D-tap output/5v USB output / 8v DC output
- Long standby time
- Strong resistance to current interference
For store pickup please contact us

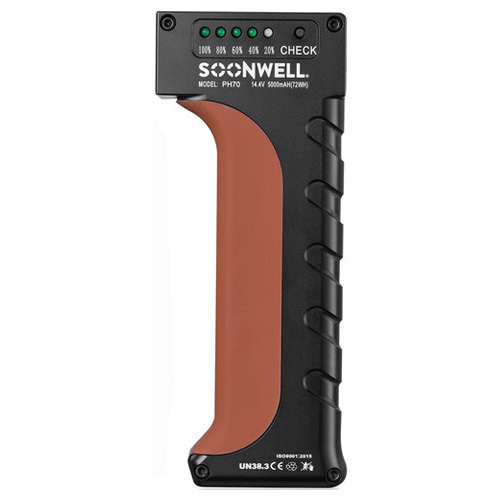

The SOONWELL PH70 is the world's first universal power handle, which attaches directly to your camera cage to boost your rig's performance. It features an inbuilt 70 Wh rechargeable lithium battery pack that has been specifically designed to help power DSLR, mirrorless cameras and other devices.

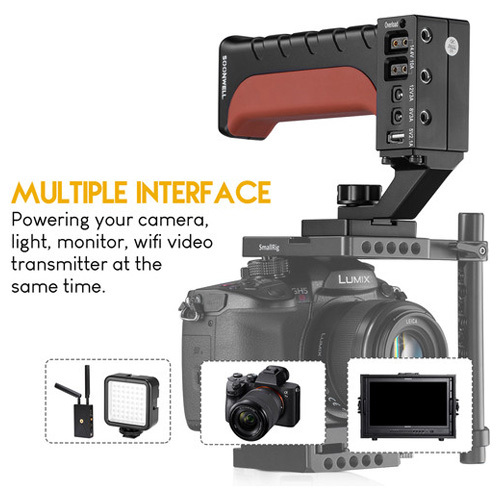

Multiple Voltage Interface

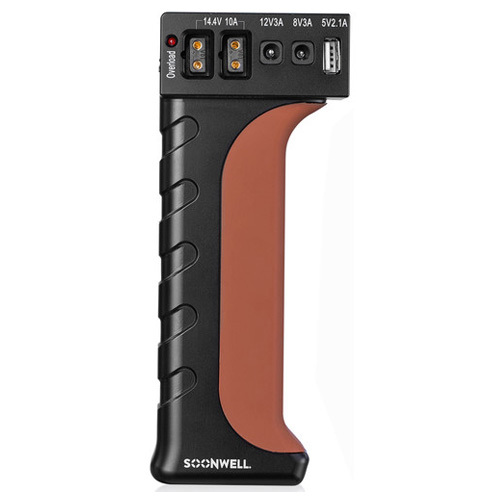

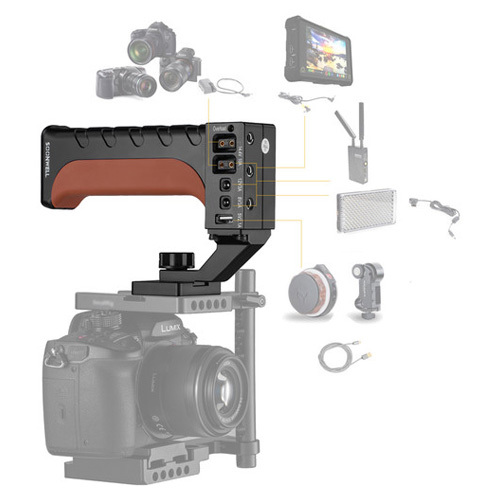

Dual 14.8v d-tap outputs, one 5V USB output, one 8v dc output, and one 12v dc output are all available on the ph70. You can power your camera, microphone, light, monitor, or any other compatible accessory with so many outputs.
Flexible Functionality

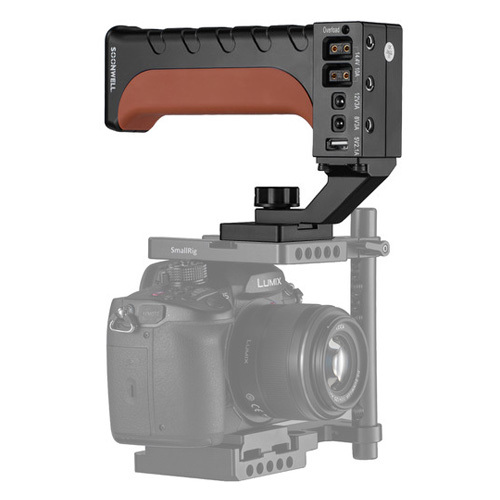

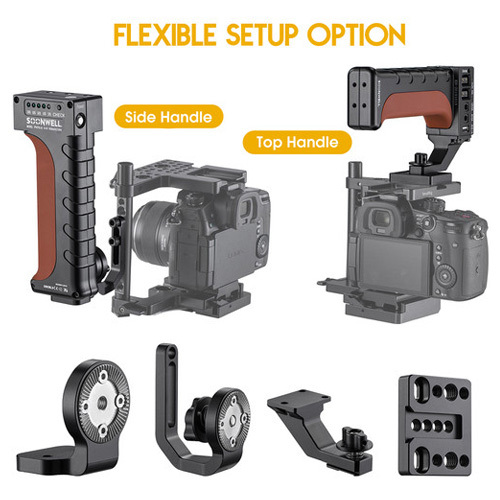

The SOONWELL PH70 power handle is shaped like a top handle, making it easy to attach to camera cages. It also has a 1/4-20'' screw, allowing the user to use the power solution as a side or top handle. The ph70 also has anti-slip rubber on the top of the handle for a more comfortable and ergonomic way to hold and operate your camera.
Safety Structural Design

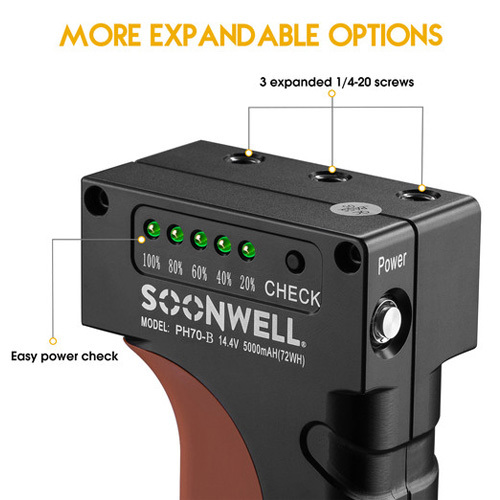

The battery has a 5-level led charge readout that illuminates to show how much power is left in the battery. D-tap chargers can be used to charge this power handle through any of its d-tap ports.

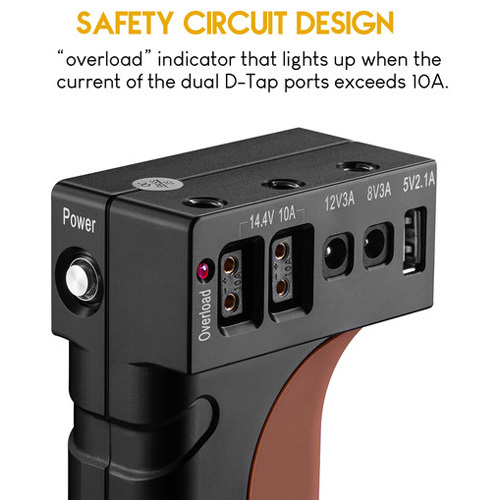

The ph70 has an overload warning for added safety. When the overload indicator illuminates, it means the dual d-tap port's total output current has exceeded 10a, necessitating the removal of the overload device to reduce the d-tap port's current.
Model No |
PH70 |
Capacity |
70 Wh (5000mAh) |
Output |
|
D-TAP |
14.8V - MAX. 5A |
USB |
5V - MAX. 2.1A |
DC1 |
12V - MAX. 3A |
DC2 |
8V - MAX. 3A |
Working temperature |
0? to 40? |
Dimensions |
72 x 183 x 41 mm |
Weight |
623g |
Charging Method |
The handle can be charged with any of its D-Tap ports via D-Tap chargers. Recommend Soonwell DC-B Charger. |
* Specifications subject to change by the manufacturer without notice

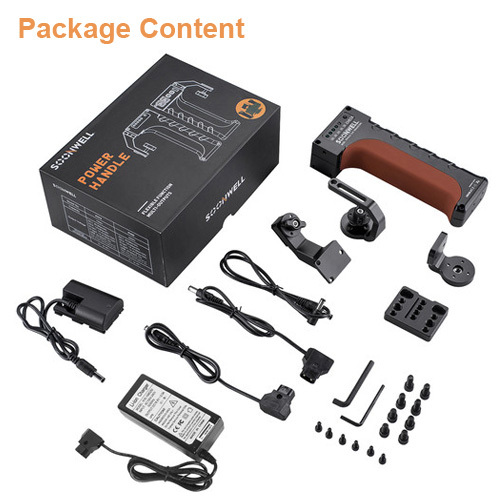

- 1 x Rechargeable Top Handle Kit
- 1 x DC Charger
- 1 x User Manual
- 1 x LP-E6 dummy battery
