SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983

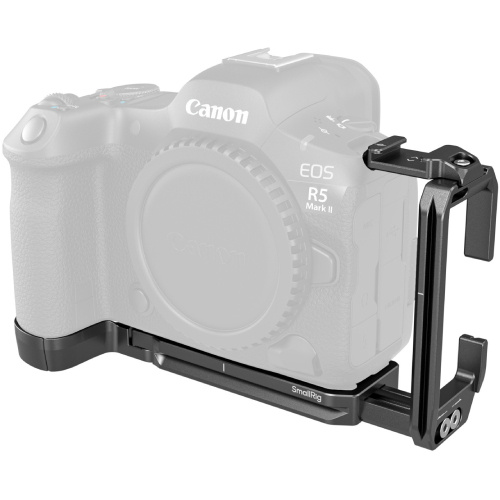

The SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983 is designed to facilitate quick switching between landscape and portrait orientations while improving the camera's grip. The L-shape mount plate securely attaches to the camera with a 1/4"-20 screw at the base and two locating blocks on the sides to prevent deviation. It also features built-in silicone pads to protect the camera from scratches.

In vertical shooting scenarios, the included locating block with a cold shoe mount stabilises the center of the frame, preventing image displacement due to side panel deformation. This locating block can accommodate various cold shoe accessories such as microphones (ID 3487), video lights (ID 3286B), transmitters, and flashes, enabling lightweight photography or videography.

The side panel can extend by 2.25cm, facilitating vertical shooting cable management, and adjust front and back by 0.78cm without obstructing the camera's side HDMI, microphone, and other interfaces.

The design of the side panel allows the screen to rotate approximately 100º front and back. Both the baseplate and side panel do not obstruct the camera's button interfaces, such as the battery compartment, card slot, or the use of angled cables.

The mount plate features multiple expansion interfaces including 1/4"-20 threaded holes, QD interface, cold shoe mounts, and strap slots, allowing for attaching such accessories as a QD shoulder strap (ID 4118), microphone (ID 3468), tripods (ID 3989, 4353) catering to diverse shooting scenarios.

The Arca-Swiss quick-release baseplate allows for direct mounting on Arca-type tripods (ID 4060, 4353) and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilisers, enabling swift transitions between stabiliser, handheld, and tripod setups. Moreover, the cage incorporates a magnetic dual head wrench at the bottom for easy assembly and disassembly.

The cage comes with a durable scratch-resistant tempered glass screen protector with a surface hardness of 9H and an IK03 impact resistance test rating.

Work With

  • Canon EOS R5 Mark II
Product Dimensions 14.91 x 6.61 x 8.9 cm
Product Weight 0.151 kg
Material(s) Aluminium Alloy


* Specifications subject to change by the manufacturer without notice.

  • SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983
  • Locating Block with Could Shoe Mount
  • Allen Wrench
