Plug and Record Operation

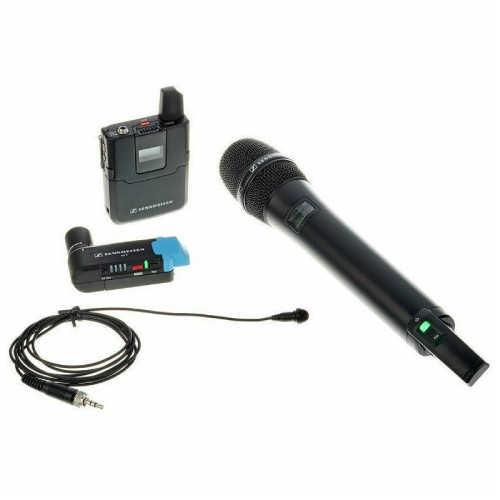

The AVX Camera-Mountable Digital Wireless Handheld and Lavalier Set from Sennheiser is perfect for film and video production, electronic news gathering (ENG) and A/V rental houses. This system includes the EKP receiver, SK bodypack transmitter, ME2 lavalier microphone, and an AVX-42 handheld transmitter with an MD42 omnidirectional capsule. It offers automatic functionality for flexibility and speed, such as auto-dynamic range settings which automatically adjust the audio level to a recording device's input sensitivity, reducing distortion and eliminating the need to adjust your mic's level. The system also has link protection, which quickly scans available frequencies and will automatically switch before any interference becomes audible.

The EKP receiver has a compact design that plugs directly into the XLR input on your camera or recording device and includes the necessary adapters for use with DSLR cameras. Additionally, the EKP can swivel, allowing it to be used with other attachments mounted to a camera. It powers on and off automatically when it senses 48V from your recording destination, for fast recording and saving battery life when not in use.

It should be noted, that while this system includes 2 transmitters, only 1 can be used at a time.

ME 2 Lavalier Mic

The Sennheiser ME 2 is an omnidirectional, sub-miniature clip-on lavalier microphone designed for speech and vocal applications. It can be used with the Evolution and AVX Series wireless transmitters.

1/8" (3.5mm) mini-jackWorks with the 100, 300 and 500 Evolution Series, as well as AVX Series wireless bodypack transmittersWarm, clear and robust broadcast-quality sound reproduction.

AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz)

Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) features an innovative design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.

The bodypack transmitter features a 3.5mm jack and accepts either a microphone with a maximum input of 2.2V RMS (50 to 20,000 Hz response) or a line-level source with a maximum input of 3.3V RMS (20 to 20,000 Hz response) for a wide variety of sources. The unit is powered by an optional Li-ion 3.7V battery and has an operating time of 15 hours.

Optimized Dynamic Range

Manages overload and distortions.

Link Protection

Maintains reliable transmission.

Auto Frequency Management

Streamlines and simplifies the setup process.

AES 256 Encryption

Protects the system from signal interception by unauthorized parties.

License Free Operation

Provides a convenient wireless transmission solution.

Metal Housing

Enables daily use for professional applications.

AVX Digital Handheld Microphone Transmitter (CH 8: 1920 to 1930 MHz)

Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX Digital Handheld Microphone Transmitter (CH 8: 1920 to 1930 MHz) features an innovative digital design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.

The handheld transmitter comes with a dynamic microphone capsule with a sensitivity of 2.1 mV/Pa, a cardioid pickup pattern, and a maximum SPL of 154 dB.

The unit is powered by either the BA 10 (Li-Ion 3.7V) energy pack and has an operating time of 15 hours using the battery packs. The transmitter comes with the BA 10 energy pack and a microphone clip.

Optimized Dynamic Range

Manages overload and distortions link protection maintains reliable transmission auto frequency management streamlines and simplifies the setup process as 256 encryption protects the system from signal interception by unauthorized parties license-free operation provides a convenient wireless transmission solution metal housing enables daily use for professional applications.
