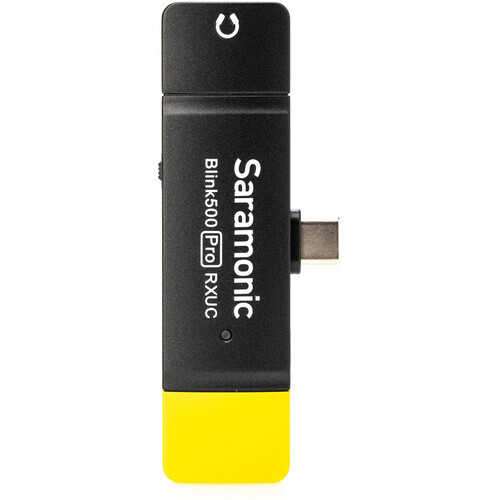

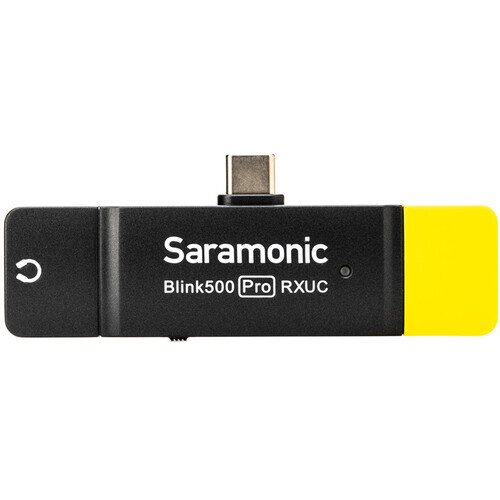

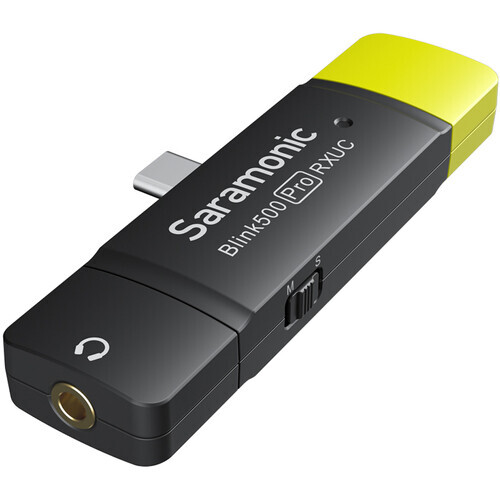

Saramonic 2.4G Wireless Receiver (Blink500 RXUC)
SKU code: 49010
- Ultracompact 2-Channel Plug-In Receiver
- For Blink 500 Pro Wireless Mic Systems
- For Videographers, Journalists, and Vloggers
- USB Type-C Connector for Mobile Devices
- Works with Tablets and Android Phones
- Easy to Use, Plug & Play Operation
- Supports Two Blink 500 Pro Transmitters
- Mono/Stereo Output Mode
- Bus Powered, Dedicated Headphone Out
- 18 Systems at Once Max, Up to 328' Range
For store pickup please contact us
You May Also Like
The Essentials:
Bags, Cases & Straps:
Flashes & Lighting:
Audio Equipment:
Cables & Connectivity:
The Blink 500 Pro RXUC dual-channel receiver, which is a component of the Saramonic Blink 500 Pro digital wireless system, is offered as a separate item for users who want to upgrade their Blink 500 Pro B3 or B4 system with an Android-compatible receiver, replace a receiver, have a backup receiver, or add one. For plug-and-play compatibility with mobile devices equipped with a USB Type-C port, such as Apple's iPad Pro and Air tablets, the device has a USB Type-C connector.
When paired with the Blink 500 Pro transmitters (available separately), the system delivers considerably improved sound quality compared to the built-in mics on cameras and mobile devices. The ultra-compact digital system is easy to use, making it ideal for video, podcast, and mobile journalism applications.
Connect, Power, and Go
Pairing this receiver with separately available Blink 500 Pro transmitters creates a system that is comfortable and simple to use for anyone, anywhere. Videographers, vloggers, YouTubers, and mobile journalists will benefit from the Blink 500 Pro's easy operation.
Advanced technology invisibly handles complicated tasks, such as switching channels to avoid dropouts, leaving you with a streamlined and simple system that requires no tedious manual configuration.

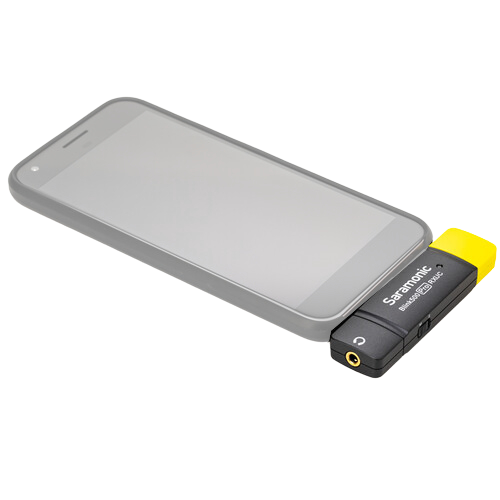

The USB Type-C connector plugs directly into your mobile device's USB port.

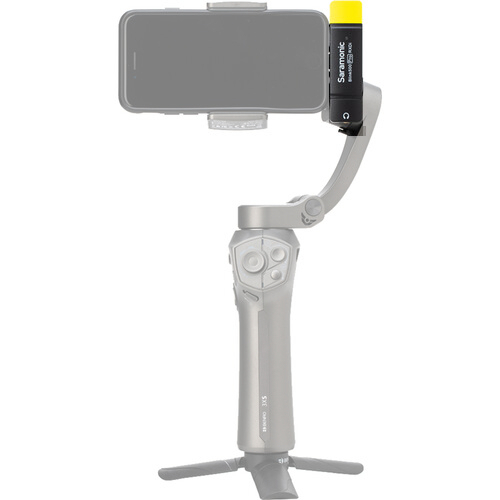

Lightweight, ultra-compact housing and slim plug-in design won't interfere with the operation of a gimbal.
Quality Sound
Blink 500 Pro systems utilize 24-bit / 44.1 kHz resolution the same audio standard used worldwide by sound engineers to give you quality sound at a budget-friendly price point.
Compared to the built-in microphones on cameras and mobile devices, Blink 500 Pro systems offer considerably improved fidelity and clarity with less noise.
With a separate 3.5mm headphone port, the Blink 500 Pro RXUC can simultaneously drive headphones for quick monitor checks and troubleshooting.

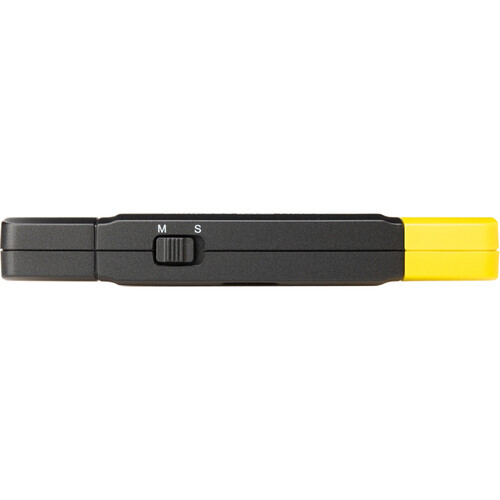

The receiver features a selectable mono/stereo output mode, allowing it to appropriately feed signal from one transmitter into both input channels of your device (via mono mode) or from two transmitters into separate input channels of your device (via stereo mode).
By connecting directly to your device's USB port, the Blink 500 Pro RXUC avoids unnecessary D/A and A/D conversion to maintain the integrity of the digital signal from your transmitter to your recording device. It sends the digital signal to your device at 16-bit / 48 kHz.
Perfect for 1- or 2-Person Shoots
Since the Blink 500 Pro RXUC is a dual-channel receiver, it can simultaneously handle two Blink 500 Pro TX wireless transmitters. If you need to expand beyond that, you can use up to 18 Blink 500 Pro systems at once to accommodate up to 36 wireless microphones.
Each Blink 500 Pro system can include one dual-channel receiver and up to two transmitters. Choose from camera-mount (Blink 500 Pro RX), Lightning (Blink 500 Pro RXDi), or USB Type-C (Blink 500 Pro RXUC) receivers.
Stable and Simple 2.4 GHz Digital Wireless
Whereas typical analog wireless systems are susceptible to interference from TV and radio waves, the Blink 500 Pro digital system avoids that by operating in the 2.4 GHz band, which occupies frequencies beyond those of television, radio transmissions, and UHF wireless microphone systems.
Within the 2.4 GHz spectrum, the Blink 500 Pro boasts automatic channel hopping to mitigate noise and dropouts at a line-of-sight distance of up to 328 feet, double the maximum distance of the standard Blink 500. For optimal performance, environments with limited Wi-Fi / 2.4 GHz traffic and minimal physical obstructions are recommended.
Ready for Anywhere
Don't be concerned about licensing or selecting frequencies; the Blink 500 Pro system uses the license-free 2.4 GHz band, so you can go anywhere in the world and have a reliable, fully functional wireless system.
Wireless Technology |
Digital 2.4 GHz |
Number of RF Channel Frequencies | 18 |
Diversity | Non-Diversity |
RF Frequency Band | 2400 to 2483.5 MHz |
RF Bandwidth | Up to 83.5 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 328' / 100 m (Line of Sight) |
Max Transmitters per Band | 18 |
Control App Support | No |
OS Compatibility | Android |
iOS | |
Modulation | GFSK |
Receiver |
|
Receiver Type | Plug-In |
Mounting Options | Plug-In (with Included Hardware) |
Antenna | 1 x Internal |
Number of Audio Channels | 2 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
Phantom Power Protection | None |
Network I/O | None |
Word Clock I/O | None |
USB/Lightning Connectivity | 1 x USB Type-C Male (Audio, Bus Power) |
Standalone Audio Interface Capable | No |
Power Requirements | Bus Power (USB) |
Display & Indicators | 1 x LED |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 3.2 x 0.5 x 1.2" / 8.1 x 1.3 x 3 cm |
Weight | 0.6 oz / 16.5 g |
* Specifications subject to change by the manufacturer without notice
