RODE NTG5 Shotgun Mic Kit
SKU code: 45808
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Ideal for Budget Films & Documentaries
- Revolutionary Circular Port Acoustic Design
- Phantom Powered, Requires No Batteries
- Delivers Natural, Uncoloured Sound
- Rugged, Compact, Lightweight Design
- Kit includes Pistol Grip, Windsock and Foam Windshield
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:
Perfect for On-Location Recording

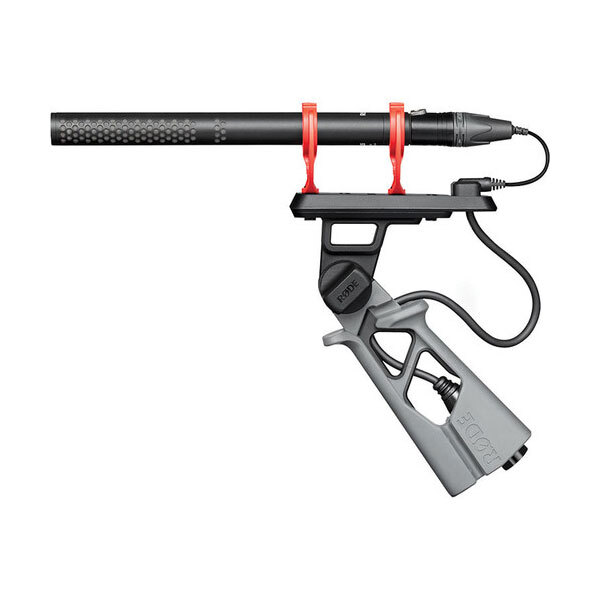

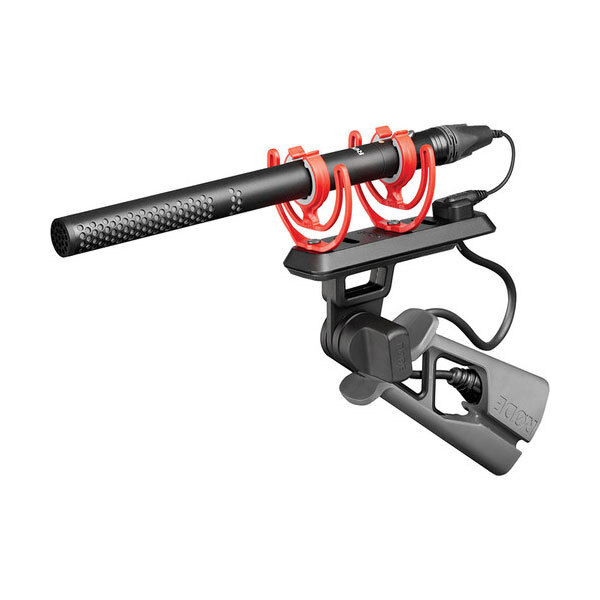

The Rode NTG5 Kit contains everything you need for on-location recording. The kit includes a NTG-5 Broadcast shotgun microphone, a pistol grip shock mount, a windshield and a windsock, a microphone clip, a PG2-R Pro cable and a small carry pouch.

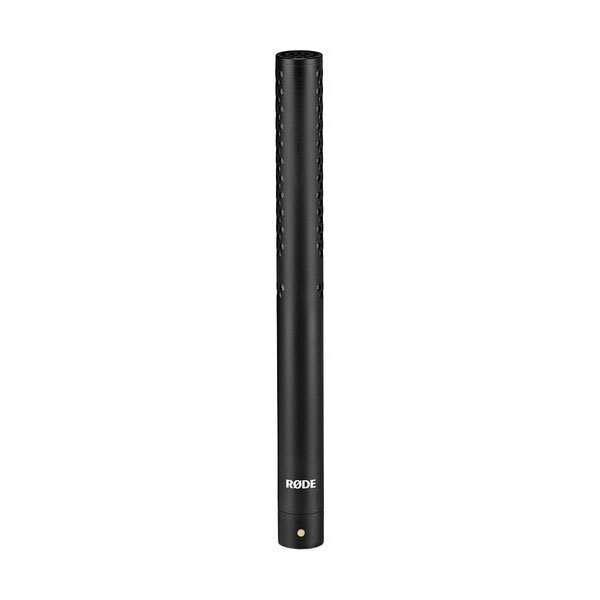

Lightweight NTG5 Shotgun Microphone
The RODE NTG5 shotgun mic features an ultra-lightweight shotgun microphone ideal for use in the most demanding recording applications.
Circular Port Acoustic Design
Its revolutionary acoustic design features circular ports replacing the linear slots found in other shotgun mics, to offer unmatched transparency and deliver a more natural, uncoloured sound.
Suitable for a Wide Range of Recordings
Combined with a tightly controlled frequency response, smooth off-axis response, and very low self-noise (just 10dBA), the NTG5 sounds spectacular in a wide variety of applications, particularly location recording and demanding filmmaking scenarios where there are no compromises on quality.
Rugged, Compact, Lightweight Design
A boom operator’s dream, the shotgun weighs a mere 76g and measuring just over 20cm, making it ideal for use on long, demanding shoots. Its RF-bias circuitry ensures reliable performance in adverse environments, with excellent resistance to high humidity, severe cold, damp, and dust to ensure you’re prepared to capture high-quality audio even in challenging conditions.
ACOUSTIC & ELECTRICAL SPECIFICATION
Acoustic Principle |
RF-bias condenser |
Active Electronics |
RF-bias demodulation |
Polar Pattern |
Supercardioid shotgun |
Frequency Range |
20 Hz – 20 kHz |
Frequency Response |
80 Hz - 20 kHz ±3 dB |
Output Impedance |
25 O |
Signal to noise Ratio |
84 dB |
Equivalent Noise |
10 dB SPL (A-weighted, as per IEC651) |
Input SPL @ 1% THD |
130 dB SPL (1kHz @ 1% THD, 600 O load) |
Power Requirements |
2 mA @ 48V phantom power |
Sensitivity |
-23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL @ 1 kHz) |
MECHANICAL SPECIFICATION
Dimensions (L x W x H, mm) |
NTG5: 203 x 19 PG2-R:117 x 60 x 240 |
Weight (g) |
NTG5: 76g PG2-R: 224g |
* Specifications subject to change by the manufacturer without notice
- Rode NTG5 Broadcast Shotgun Microphone

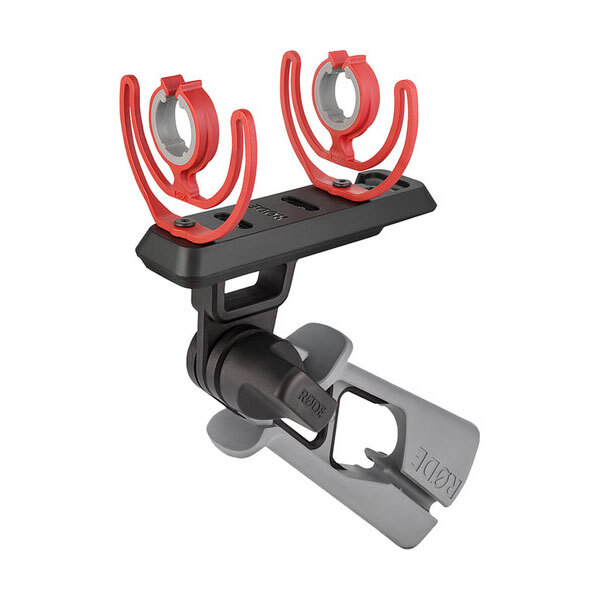

- Pistol Grip Shock Mount (PG2-R)

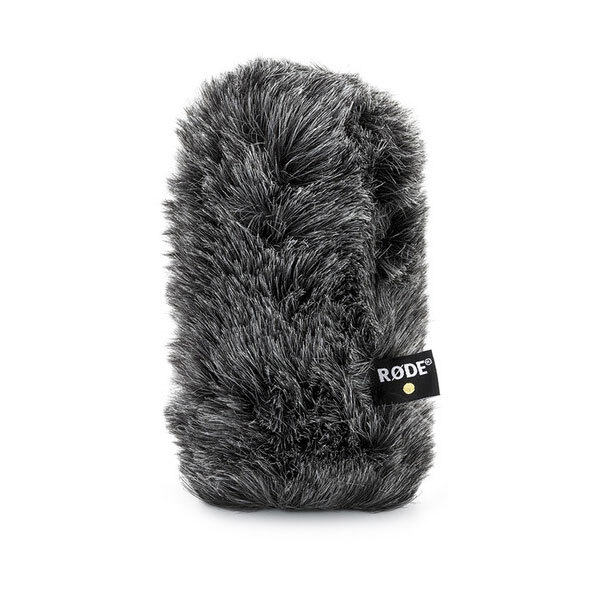

- Windshield (WS10)
- Foam Windshield

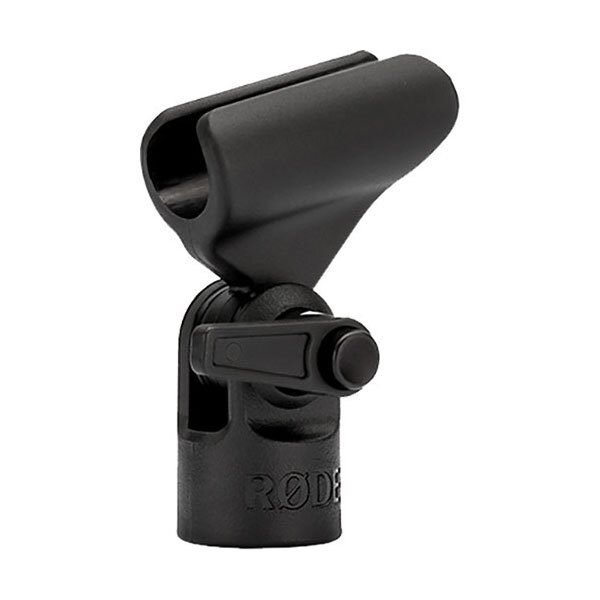

- Microphone Clip (RM5)

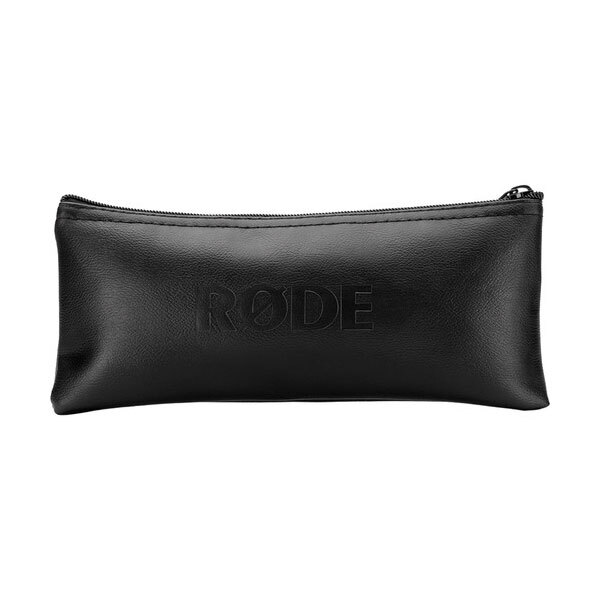

- Small Pouch Bag (ZP1)
