Capture Genuine Moments

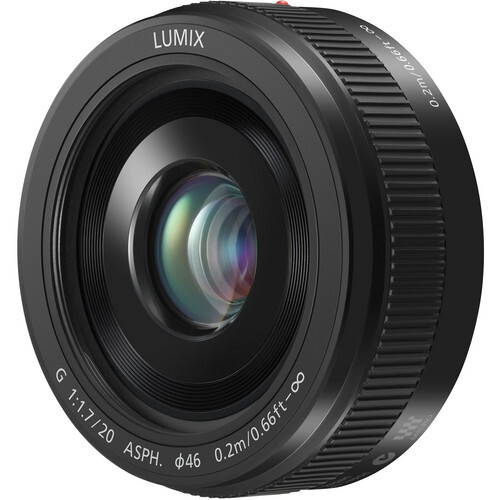

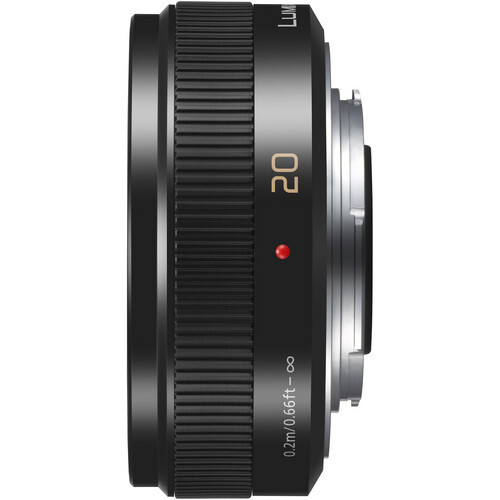

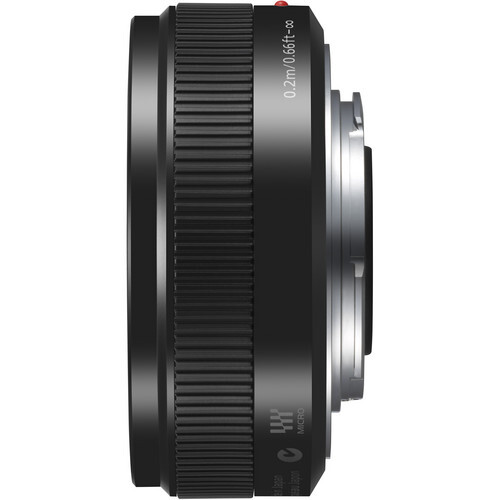

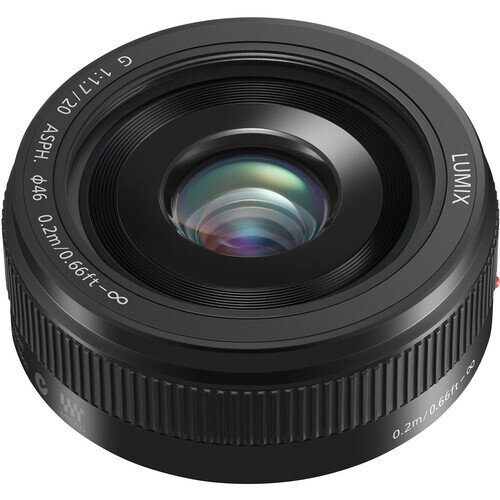

The Panasonic Lumix G 20mm f/1.7 II ASPH. Lens is an ultra-compact pancake lens, perfect for street photography and everyday shooting. Its small size is ideal for staying discreet and capturing real moments.

A 35mm equivalent fixed focal length of 40mm delivers a natural perspective that also works well with portraits, landscapes, and architectural photography. This versatile range is complemented by a bright f/1.7 7-bladed aperture which produces excellent out-of-focus backgrounds and helps with shooting in low-light conditions.

Sharp, vibrant images are delivered via 7 elements in 5 groups which include two aspherical elements that are employed to minimise distortion and chromatic aberration. Additionally, all elements are multi-coated to minimise flare and ghosting as well as improve image contrast and clarity.

The Panasonic Lumix G 20 mm f/1.7 II ASPH Lens is compatible with all Panasonic Lumix G Interchangeable Lens Cameras.

Model No. H-H020A
Lens Construction 7 elements in 5 groups (2 aspherical lenses)
Mount Micro Four Thirds mount
Focal Length f=20mm (35mm camera equivalent 40mm)
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Aperture F1.7
Minimum Aperture F16
Closest Focusing Distance 0.2m
Maximum Magnification Approx. 0.13x / 0.25x (35mm camera equivalent)
Diagonal Angle of View 57°
Filter Size f46mm
Max.Diameter f6.3cm
Overall Length Approx. 2.55cm (from the tip of the lens to the base side of the lens mount)
Weight Approx. 0.087kg (excluding lens cap and lens rear cap)
Standard Accessories Lens cap, Lens rear cap, Lens storage bag


* Specifications subject to change by the manufacturer without notice

  • Panasonic Lumix 20mm f/1.7 II ASPH. Pancake Lens

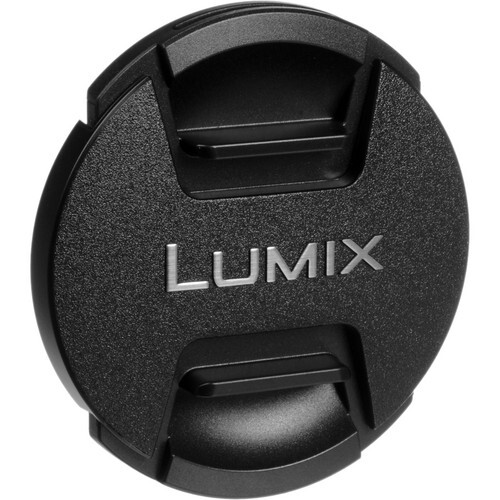

  • Front Lens Cap

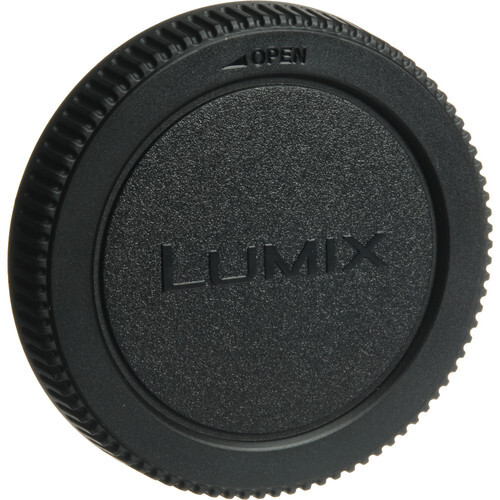

  • Rear Lens Cap
  • Lens Pouch
  • Instruction Manual

Manufacturer Warranty

This product comes with a

5* year Australian warranty

from Panasonic Australia

*Available with free registration at

https://www.panasonic.com.au/warranty/ within 120 days of purchase.
