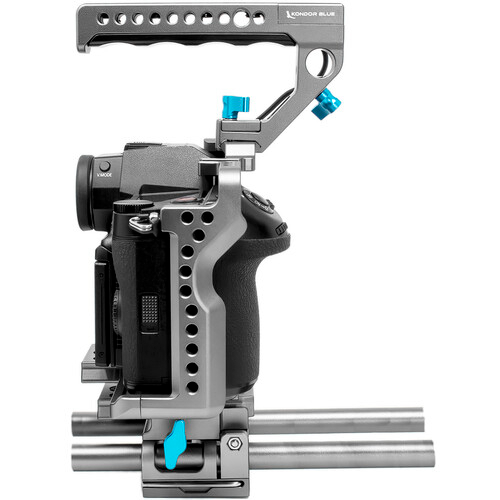

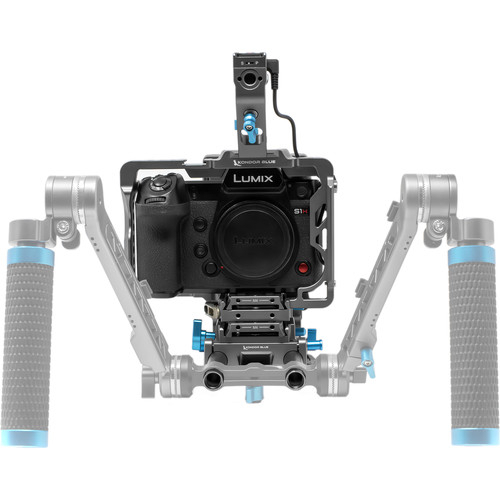

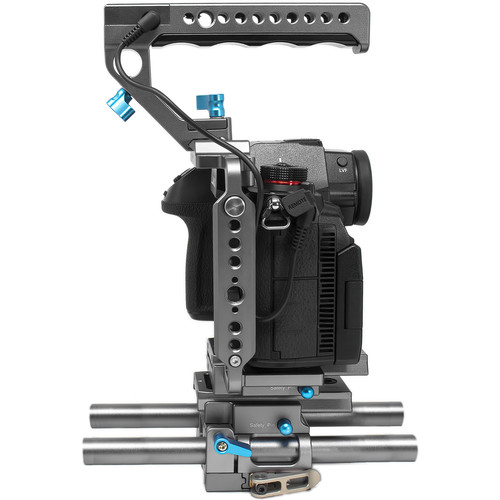

Kondor Blue Panasonic Lumix S1H Base Rig for S1/S1R/S1H

The Space Grey Base Rig for Panasonic Lumix S1H from Kondor Blue is a top-notch setup, combining a dedicated full camera cage, a top handle with a LANC-based start/stop button, a universal baseplate, and an 8" pair of 15mm aluminium rods. This rig's baseplate features a sideload 501-type camera plate and an ARRI-style dovetail, ensuring sturdy and flexible support. Read more below about the items in this kit.

Kondor Blue Camera Cage for Panasonic Lumix S1/S1R/S1H (Space Grey)

Incorporating a Manfrotto 501 camera plate system, this space grey Camera Cage Kondor Blue allows you to easily move your Panasonic Lumix DC-S1, S1R, or S1H camera between the cage and other gear, as well as simply remove the camera by quick release. The plate locks in place at the flip of a large, secure lever on the side, and it's fully released at the press of a blue push button. Rubber padding on the camera plate and the wall of the cage ensures safer camera attachment, while a variety of mount types all around let you attach accessories.

Mount Types

  • A NATO rail and a shoe mount are provided on top
  • The entire left side is also a NATO rail
  • 1/4"-20 and 3/8"-16 threads, including 3/8"-16 anti-twist threads with ARRI locating pins, are provided in multiple places for accessories
  • 1/4"-20 and 3/8"-16 tripod threads on the bottom

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 8")

Add a pair of standard 15mm rods to your rig with this two-pack of 8" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

KONDOR BLUE CAMERA CAGE FOR PANASONIC LUMIX S1/S1R/S1H (SPACE GREY)

MOUNTING

Accessory Mounting
Multiple 1/4"-20 Female Thread
  Multiple 3/8"-16 Female Thread
  Multiple ARRI Anti-Twist 3/8"-16 Female Thread
Tripod Mounting
1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Shoe Mounting
Cold Shoe
Rail Mounting
NATO Rail

GENERAL

Support Type
Cage
Camera Compatibility
Panasonic DC-S1, Panasonic DC-S1H, Panasonic DC-S1R

KONDOR BLUE 15mm ARRI-STANDARD BASEPLATE FOR BMPCC 4K/6K CAGE (SPACE GREY)

Support Type
Baseplate
Camera Compatibility
Blackmagic Pocket Cinema Camera 4K, Blackmagic Pocket Cinema Camera 6K

MOUNTING

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, Manfrotto 501
Rod Ports
15 mm Rod Port

GENERAL

Materials
Aluminium
Dimensions
12.7 x 10.16 x 8.89 cm
Weight
0.323 kg

KONDOR BLUE PPSH 15mm RODS (PAIR, SPACE GREY, 8")

Diameter
1.5 cm
Length
20.3 cm
Material
Aluminium
Thread Type
Female / Female
Thread Size
12 mm
Number of Rods
2
Weight
0.037 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Camera Cage for Panasonic Lumix S1/S1R/S1H (Space Grey)
  • 501 Quick Release Plate
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
  • Brand Sticker
  • Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 8")

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Kondor Blue Australia
