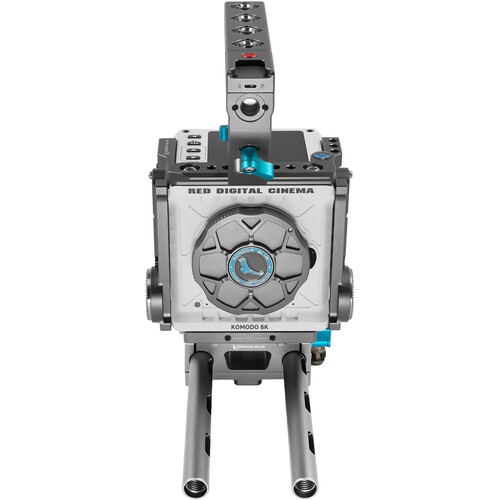

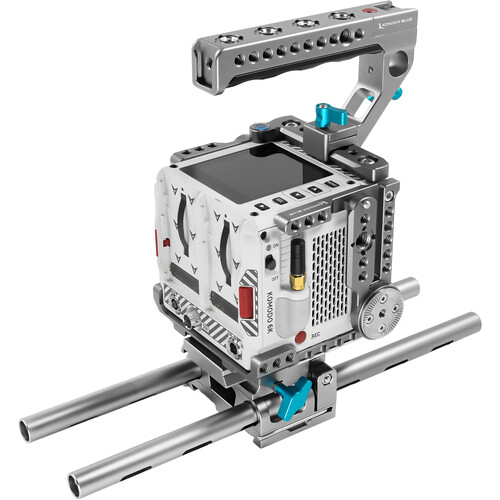

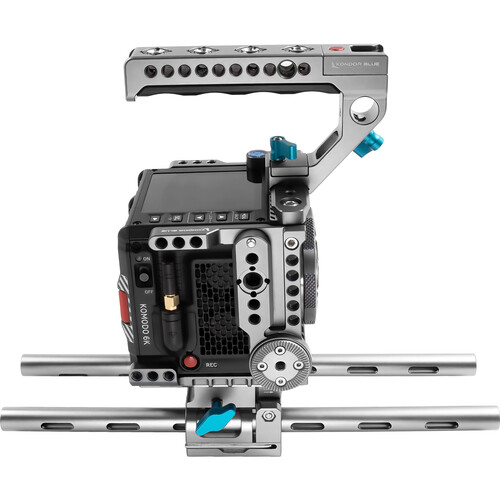

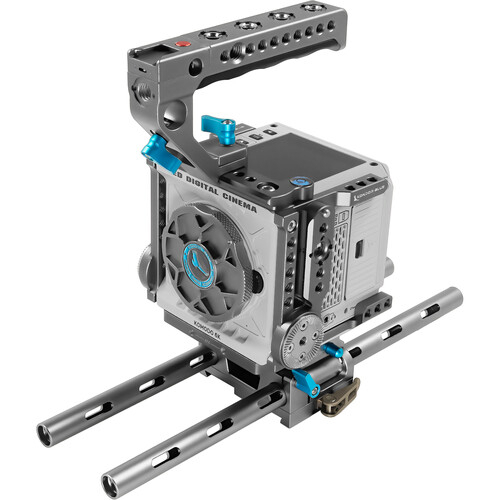

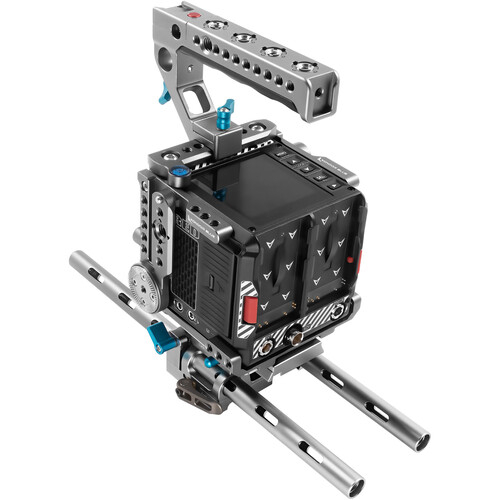

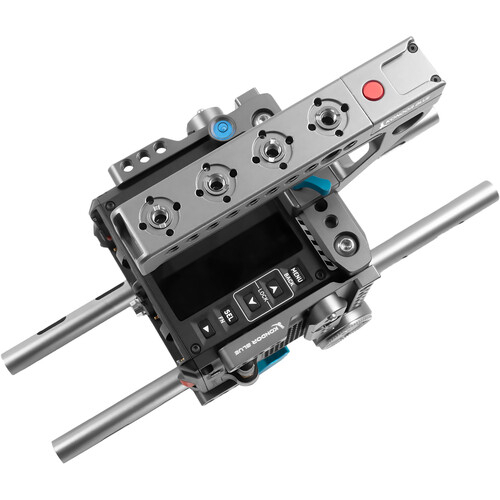

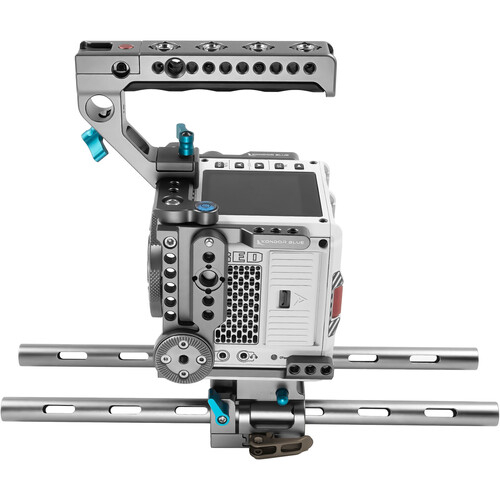

Kondor Blue Komodo Base Rig

Give your RED KOMODO 6K cinema camera added protection and versatility with the Space Grey Base Camera Rig from Kondor Blue. This comprehensive kit features a modular camera cage tailored for the RED KOMODO, along with a top handle, a universal baseplate, a quick-release camera plate, and two 12-inch long 15mm PPSH rods. Perfect for accommodating a variety of accessories, this rig ensures your camera setup remains secure and adaptable for any shooting scenario.

The cage offers numerous mounting options such as ARRI-style rosettes, 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist threads, NATO rails, 1/4"-20 and 3/8"-16 tripod mounting threads, and front lens support threads. It mounts onto the baseplate that features an ARRI-type/501 quick release plate and 15mm rods. The included 15mm rods measure 12" in length and offer additional mounting options for accessories such as extension arms, a lens support, or follow focus motors. The top handle also features numerous mounting options and it allows you to control the start/stop of your camera with a separately available cable.

Kondor Blue Camera Cage for RED KOMODO (Grey, Cage Only)

Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this grey Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn't twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera's ports and controls.

The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4"-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4"-20 threads and a 3/8"-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4"-20 and 3/8"-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.

Features

Compatibility

RED KOMODO 6K cinema camera

Modular Design

Constructed with top, side, and bottom plates, and each plate can be mounted independently of the others

Top Plate

Low-profile NATO rail with bubble level, 1/4"-20 threads, and 3/8"-16 ARRI-style threads

Side Plates

Symmetrical rosettes, vertical NATO rails with safety pins, 1/4"-20 threads, and 3/8"-16 ARRI-style threads

Bottom Plate

Helicoil steel threads, magnetic tool, side wings with 1/4"-20 threads, rubber pads for camera protection, and front threads for a Kondor Blue lens support

Accessory Options

Compatible with the Kondor Blue 501 ARRI-style baseplate for an 85mm height from mounting rods

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Grey)

This space grey Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the Aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4"-20, 3/8"-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• Made from durable Aluminium with an ergonomic grip
• Comes in space grey Colour

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor's Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4"-20 and 3/8"-16 mounting screws and offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. It's also rubber-padded to minimize twisting and prevent scratching.

Additional Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space grey Aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.
