Unparalleled Thermal Monocular

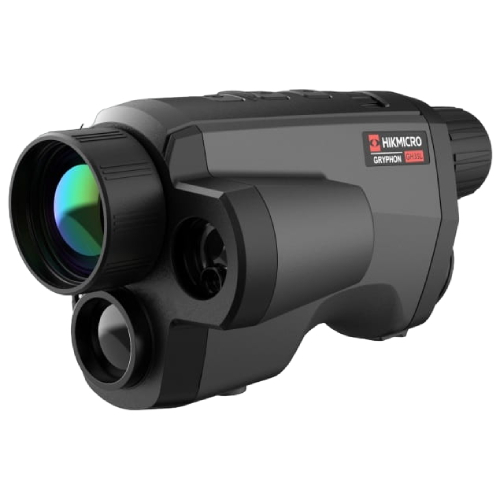

The Hikmicro Gryphon GQ35L fusion thermal monocular is a revolutionary device that combines visible and invisible light to create an image suitable for any environment. Featuring a custom 640 x 512px 12um sensor, a stunning OLED display, a 35mm lens and a laser rangefinder, the HIKMICRO Gryphon takes thermal monoculars to the next level.

Sporting an in built Range Finder, accurate to +/- 1m over 600m, hot tracking, 6 colour pallets including Image Fusion, and integrated with with awesome T-Vision app over wifi. The custom designed thermal detector featuring a NETD of less than 35mkv provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest, etc.

Premium Image Quality

Using HIKMICROs state of the art 640px sensor, the Gryphon GQ35L delivers a crisp image even in adverse conditions.

Laser Range Finder

Range your targets accurately with a built-in Laser Range Finder (LRF), accurate within 1 meter out to 600 meters.

Thermal Fusion Technology

Unlock more detail in every frame with the combination of night vision and thermal in a single unit.

THERMAL MODULE

Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 0.012 mm
Response Waveband 0.008 mm to 0.014 mm
NETD < 35 mK ( @25°C, F# = 1.0)
Lens (Focal Length) 35 mm
Focus Mode Manual
Detection Range 1800 m
Field of View 10.97° × 8.82° (H × V)
Min. Focusing Distance 3 m
Aperture F1.0
Magnification 2
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×

OPTICAL MODULE

Image Sensor 1/2” Progressive Scan CMOS
Focal Length 22 mm
Wavelength 400 nm to 1000 nm
Max. Resolution 1920 × 1080
Min. Illumination 0.001 Lux @ F1.0

IMAGE DISPLAY

Frame Frequency 50 Hz
Display 0.39 inch, OLED, 1024 × 768
Image Mode White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction

SMART FUNCTION

Hot Spot Yes
Hot Track Yes
Distance Measurement Yes
Standby Mode Yes

SYSTEM

Record Video Yes
Capture Snapshot Yes
Built-in Memory 16 GB

POWER SUPPLY

Battery Type One 18650 battery
Battery Operating Time 4.5 hours
Power Removable Battery

GENERAL

Protection Level IP67
Dimension 8.72 cm × 7.33 cm × 16.78 cm
Weight 0.51 kg
Working Temperature -30 to 55°C
Eye-Relief 19.5 mm

LASER RANGEFINDER

Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 600 m
Measurement Accuracy ± 1 m


* Specifications subject to change by the manufacturer without notice

  • HikMicro GQ35L Gryphon Handheld Thermal Monocular
