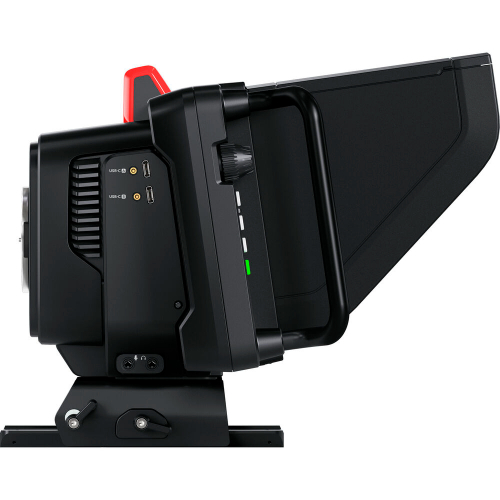

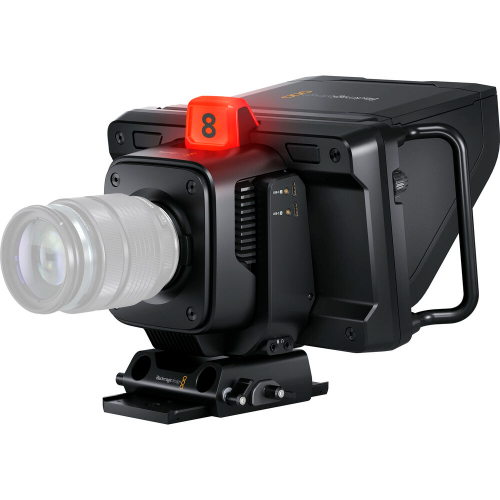

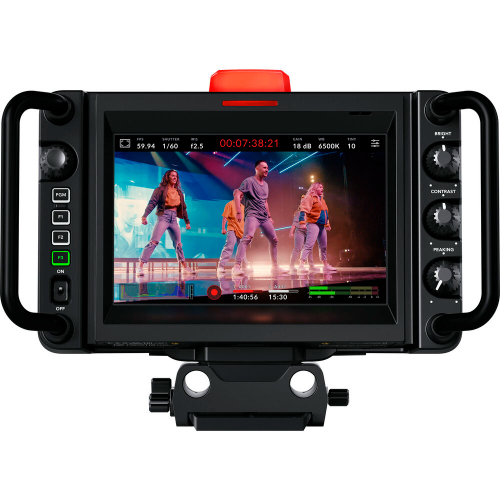

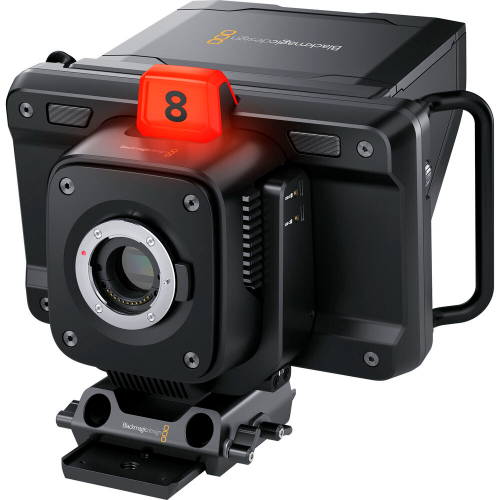

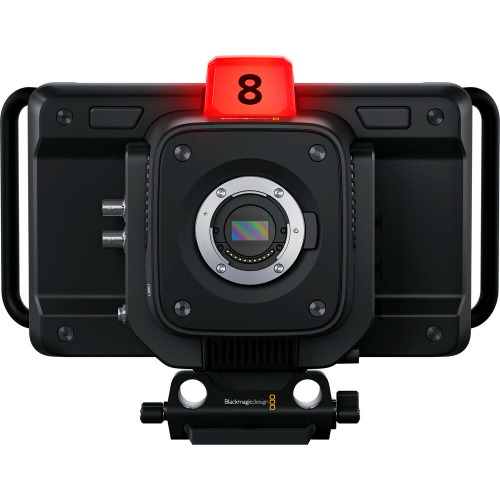

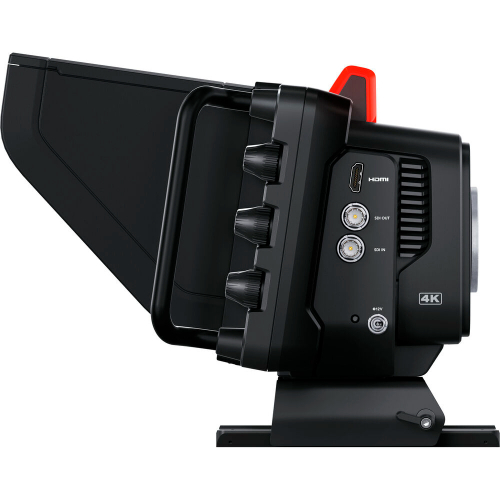

Blackmagic Design Studio Camera 4K Plus G2

Add a powerful studio camera to your 4K broadcast setup with the Blackmagic Design Studio Camera 4K Plus G2, ideal for use with an ATEM Mini or DaVinci Studio. An upgrade from the HDMI Studio Camera 4K Plus, this compact, lightweight camera now includes 12G-SDI input and output, as well as HDMI 2.0 output for greater compatibility with SDI switchers. It retains key features like an active MFT lens mount, up to 25,600 ISO, 13 stops of dynamic range, a tally light, dual USB-C ports for recording and control, built-in dual microphones, a 7" HDR LCD, and a redesigned sun hood. The 12G-SDI capability also allows for program feed and talkback functionality via SDI, expanding its versatility for professional broadcasts.

IMAGING


Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Horizontal Resolution (TV Lines)
0 TV Lines
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Signal-to-Noise Ratio
63 dB

CAMERA


Lens Mount
Micro Four Thirds
Shutter Type
Mechanical Focal Plane Shutter
Shutter Speed
1/5000 to 1/24 Second
Built-In Microphone
Stereo
Broadcast System Compatibility
NTSC, PAL

INTERFACES


Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone/Line Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
2x USB-C (USB 3.2 / 3.1 Gen 1) Control/Data/Video Input/Output

RECORDING


Raw Recording
Blackmagic RAW
6144 x 3456
6144 x 2560
5376 x 3024
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60 fps
Audio Recording
Raw: 2-Channel 24-Bit 48 kHz LPCM Audio

DISPLAY


Display Type
Fixed Touchscreen LCD
Display Size
7"
Resolution
1920 x 1200

POWER


Power I/O
1x Barrel (12VDC) Input
Power Consumption
>46 W

GENERAL


Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Accessory Mounting Thread
2x 1/4"-20 on Camera Body
1x 3/8"-16 on Camera Body
Tripod Mount
3/8"-16 Female
Dimensions (W x H x D)
27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight
1.4 kg


* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Design Studio Camera 4K Plus G2
  • Sun Hood
  • Turret Dust Cap
  • Universal Power Supply with International Socket Adapters
  • 15mm LWS Tripod Mount
