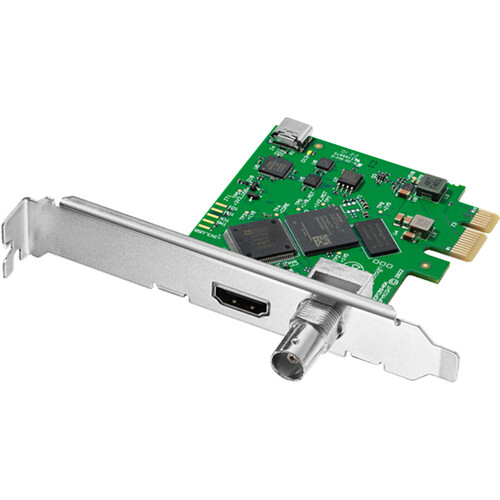

Blackmagic Design DeckLink Mini Monitor HD

Monitor your computer's video output through SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. This 1-lane PCIe playback card features both SDI and HDMI outputs, and is compatible with 1-, 4-, 8-, and 16-lane PCIe slots. It offers essential playback and monitoring capabilities, allowing you to deliver broadcast-quality video to HDMI or SDI monitors with ease.

The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time colour space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro
  • Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
  • Avid Media Composer, Avid Pro Tools
  • Steinberg Cubase, Steinberg Nuendo
  • The Foundry Nuke
  • Sony Catalyst Production Suite
  • Tools On Air Just: Play & Live
  • Magix Movie Edit Pro Premium
  • Corel VideoStudio Pro
  • CyberLink Power Director
  • Grass Valley Edius
  • Softron Mreplay
  • Telestream Wirecast
  • Livestream Studio
  • Resolume Arena
  • Vegas Creative Software Vegas Pro
  • VidblasterX Studio and Broadcast
  • Unimedia Technologies UniplayOne and Uniplay-CG
  • CasparCG Server
  • Magicsoft CG
  • Xsplit Broadcaster
  • DevTek Easy Media Suite
  • Boinx Software MimoLive
  • StudioCoast vMix
  • Renewed Vision ProPresenter
  • Ventuz Director
  • Class X Liveboard and CoralCG
  • Open Broadcaster Software Studio
  • Nautilus Studio Nemo3D
  • Burst Video Webclip2Go
  • Derivative TouchDesigner
  • Assimilate Scratch and Live Assist
  • NewBlue Title Live and Titler Pro
  • SGO Mistika

Supported Codecs

  • AVC-Intra
  • AVCHD
  • Canon XF MPEG2
  • Digital SLR
  • DV-NTSC
  • DV-PAL
  • DVCPRO50
  • DVCPROHD
  • DPX
  • HDV
  • HEVC
  • XDCAM EX
  • XDCAM HD
  • XDCAM HD422
  • DNxHR & DNxHD
  • AppleProRes 4444
  • Apple ProRes 422 HQ
  • Apple ProRes 422
  • Apple ProRes 422LT
  • Apple ProRes 422 Proxy
  • Uncompressed 8-bit 4:2:2
  • Uncompressed 10-bit 4:2:2
  • Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)

INPUTS / OUTPUTS


System Connection
(Length Unspecified)
Video Outputs
1x BNC (3G-SDI) (Monitor)
  1x HDMI (2.0) (Monitor)

FORMAT SUPPORT


Output Video Format
SDI (8/10/12-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30 fps
  1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines 59.94 fps
  SDI (8/10-Bit 4:2:2 YUV)
  DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
  DCI 2KPsF at 23.98/24/25/29.97/30 fps
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080PsF at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
  HDMI (10/12-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
  HDMI (8-Bit 4:4:4 RGB)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
  HDMI (12-Bit 4:2:2 YUV)
  1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  1080i at 50/59.94/60 fps
  720p at 50/59.94/60 fps
  576i / 625 lines at 50 fps
  480i / 525 lines at 59.94 fps
Embedded Audio
SDI: 16-Channel
  HDMI: 8-Channel

STANDARDS


Video Standard Compliance
SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1

HARDWARE


OS Compatibility
macOS 11.1
  macOS 12.0 or Later
  Windows 10
  Windows 11
  Linux
Power Consumption
Device: 3 W

ENVIRONMENTAL


Operating Temperature
37 to 72°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90% ()
Storage Humidity
0 to 90% (Non-Condensing)

GENERAL


Dimensions
9.195 cm
Weight
0.056 kg


* Specifications subject to change by the manufacturer without notice.

"

  • Blackmagic Design DeckLink Mini Monitor HD
  • Low-profile Slot Bracket
